TAILLIGHT(S)

ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR

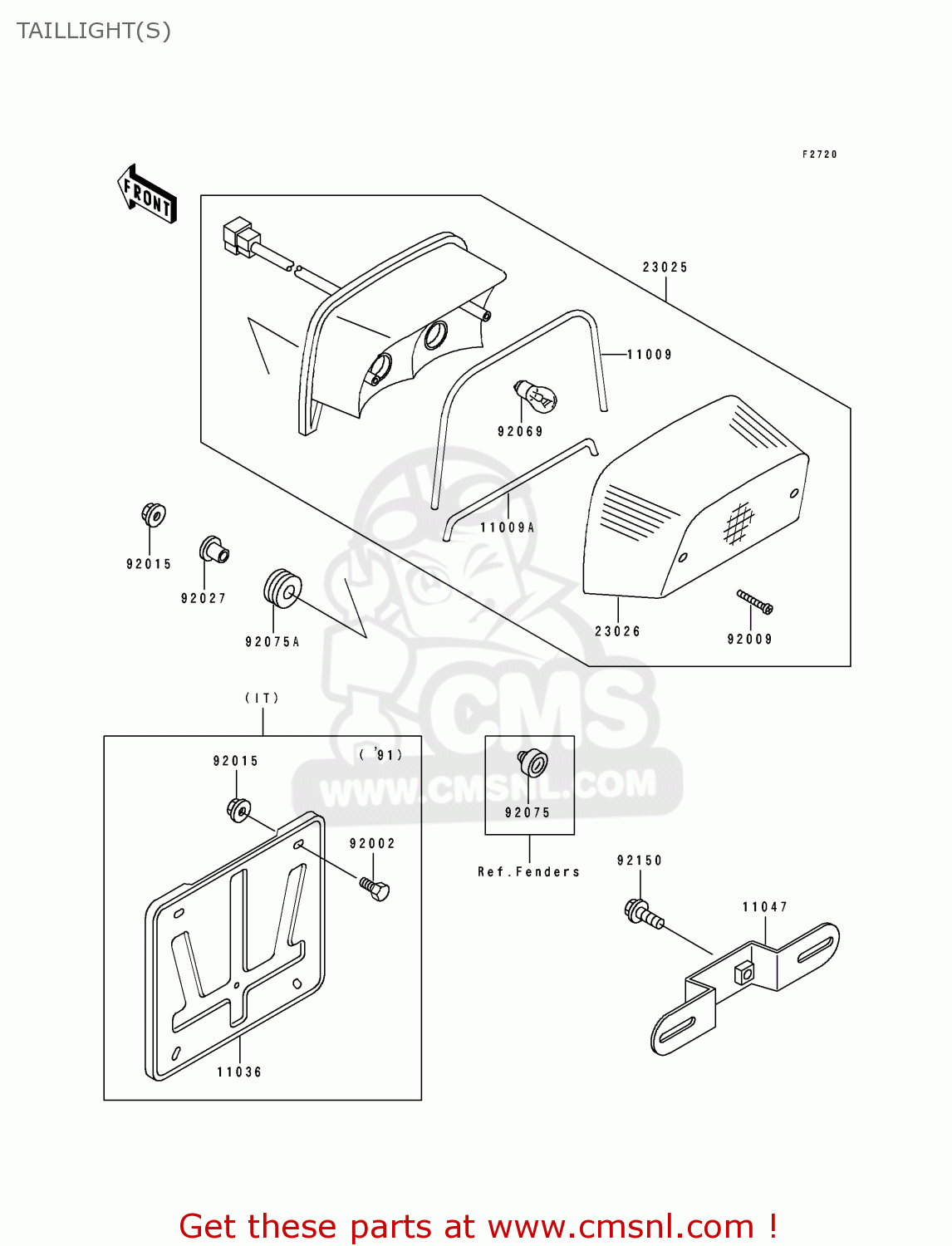

Taillight(s) diagram ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR

prices are in EUR

ref

part #

description

quantity

11009

110091811
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.00

11009A

110091812
ref: 11009A

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

11036

110361820
ref: 11036
IT

BRACKET-A,LICENSE PLA

€ 13.50

11047

110471230
ref: 11047

BRACKET,TAIL LAMP

€ 12.50

23025

230251216
ref: 23025

LAMP-TAIL

€ 102.00

23026

230261122
ref: 23026

LENS,TAIL LAMP

€ 60.50

92002

920021132
ref: 92002
IT

BOLT,6X12

€ 2.50

92009

920091506
ref: 92009

SCREW,TAPPING,4X30

€ 2.50

92015

920151367
ref: 92015
EUFGGRNRUK

NUT,FLANGED,6MM

€ 0.50

92015

920151367
ref: 92015
IT

NUT,FLANGED,6MM

€ 0.50

92027

92027251
ref: 92027

COLLAR,L=13.1

€ 1.00

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92075

92075035
ref: 92075

DAMPER

€ 3.00

92075A

920751690
ref: 92075A

DAMPER,10X24X12

€ 3.00

92150

921501909
ref: 92150

BOLT

€ 3.00
