METER(S)
ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR

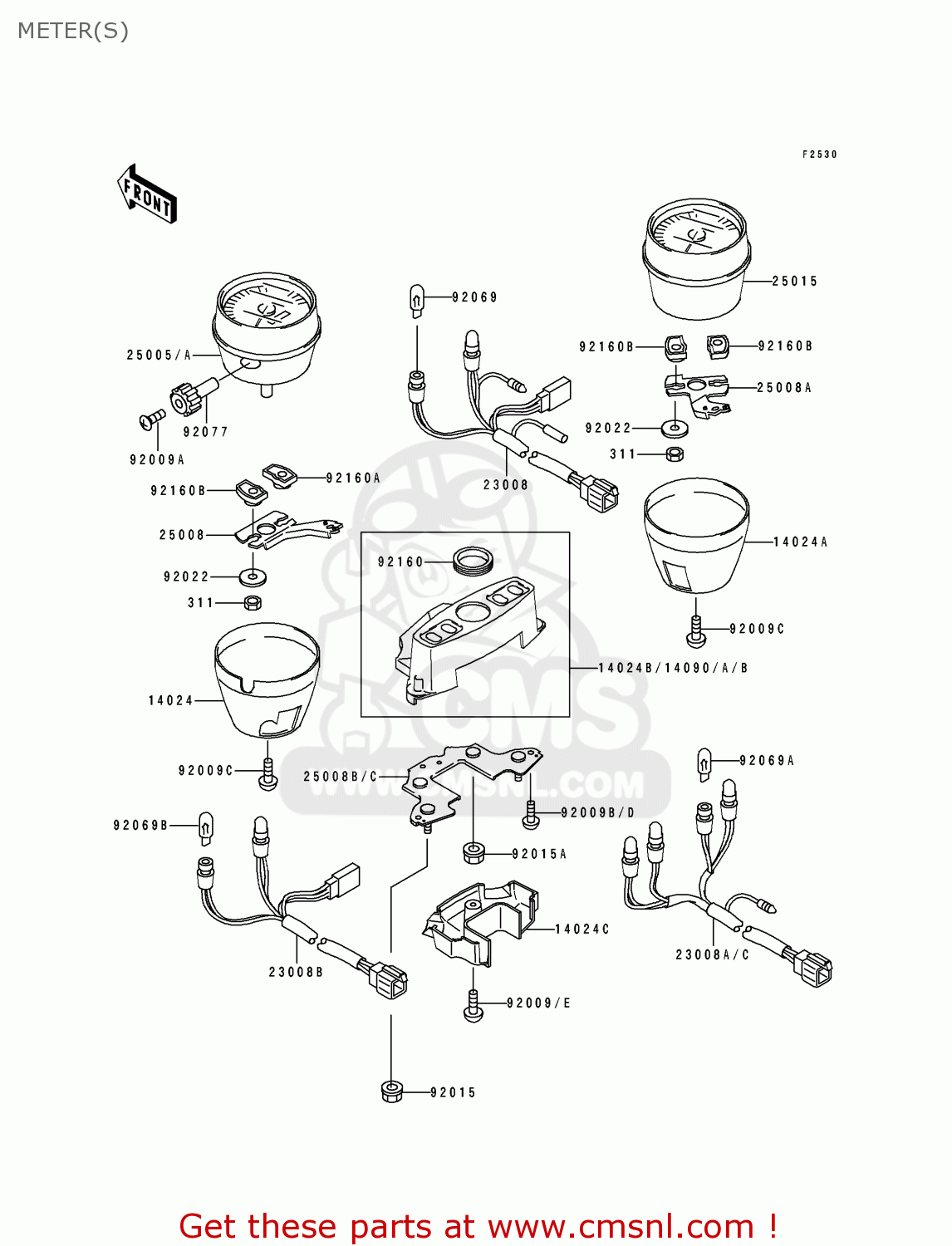

Meter(s) diagram ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR
METER(S) ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR
×
prices are in EUR
ref
part #
description
quantity
14024
140241986
ref: 14024
COVER,SPEEDOMETER
€ 71.50
14024A
140241987
ref: 14024A
COVER,TACHOMETER
€ 71.50
14024B
140241988
ref: 14024B
EUFGGRITUK
COVER,PILOT BOX,UPP
€ 55.00
14024C
140241989
ref: 14024C
COVER,PILOT BOX,LWR
€ 23.50
14090
140901054
ref: 14090
NR
COVER,PILOT BOX,UPP
€ 35.50
23008
230081458
ref: 23008
SOCKET-ASSY,TACHOMETE
€ 43.00
23008A
230081459
ref: 23008A
SOCKET-ASSY,PILOT BOX
€ 42.00
23008B
230081460
ref: 23008B
SOCKET-ASSY,SPEEDOMET
€ 43.00
25005
250051467
ref: 25005
EUFGGRITNR
SPEEDOMETER,KPH
€ 261.50
25005A
250051478
ref: 25005A
UK
SPEEDOMETER,MPH
€ 268.50
25008
250081171
ref: 25008
BRACKET-METER,SPEED
€ 15.00
25008A
250081172
ref: 25008A
BRACKET-METER,TACHO
€ 20.50
25008B
250081173
ref: 25008B
BRACKET-METER,PILOT B
€ 27.00
25015
250151298
ref: 25015
TACHOMETER,X1000R/MIN
€ 404.50
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009C
920091601
ref: 92009C
SCREW,TAPPING,4X16
€ 2.00
92009D
920091605
ref: 92009D
SCREW,4X16
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691020
ref: 92069
BULB,12C3W T-7
€ 3.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92069B
920691085
ref: 92069B
BULB,12V 1.7W
€ 3.00
92077
920771096
ref: 92077
KNOB,RESET TRIP
€ 15.00
92160
921601179
ref: 92160
DAMPER,IGNITION SWITC
€ 5.50
92160A
921601280
ref: 92160A
DAMPER,METER
€ 3.50
92160B
921601281
ref: 92160B
DAMPER,METER
€ 3.50
