GEAR CHANGE MECHANISM

ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR

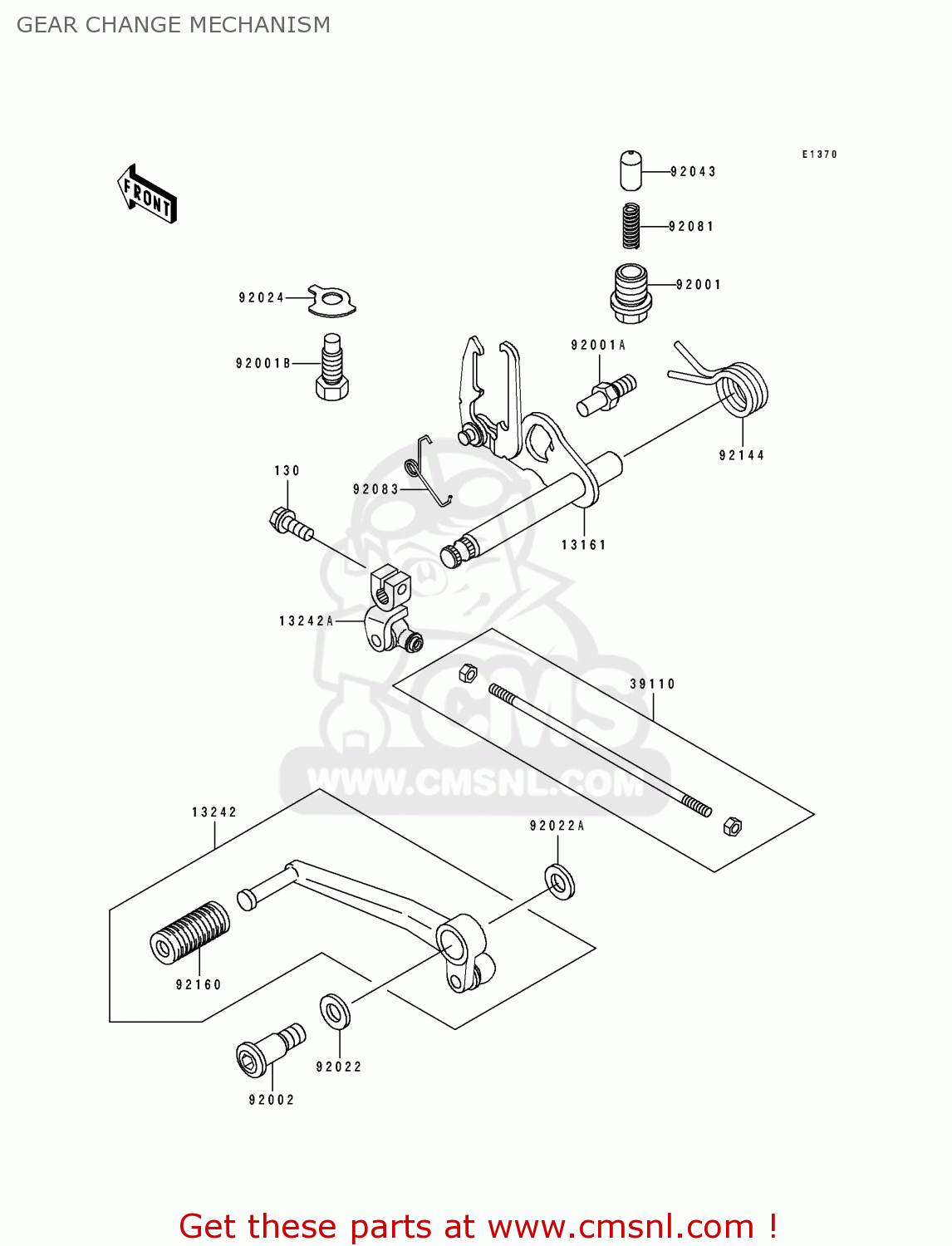

Gear change mechanism diagram ZR550B2 ZEPHYR 1991 EUROPE UK FG GR IT NR

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421252
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 45.50

13242A

132421282
ref: 13242A

LEVER-ASSY-CHANGE,BOS

€ 33.00

39110

391101008
ref: 39110

ROD-ASSY-TIE,L=90,BLA

€ 7.50

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011455
ref: 92001A

BOLT

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92002

920021773
ref: 92002

BOLT,CHANE PEDAL

€ 15.50

92022

92022072
ref: 92022

WASHER,12.5X22X1.2

€ 2.50

92022A

920221561
ref: 92022A

WASHER,8.5X20X1.6

€ 2.50

92024

92024074
ref: 92024

WASHER,LOCK,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92081

92081112
ref: 92081

SPRING

€ 4.00

92083

92083018
ref: 92083

SPRING-KICK PAWL

€ 6.00

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50

GEAR CHANGE MECHANISM

all assemblies
