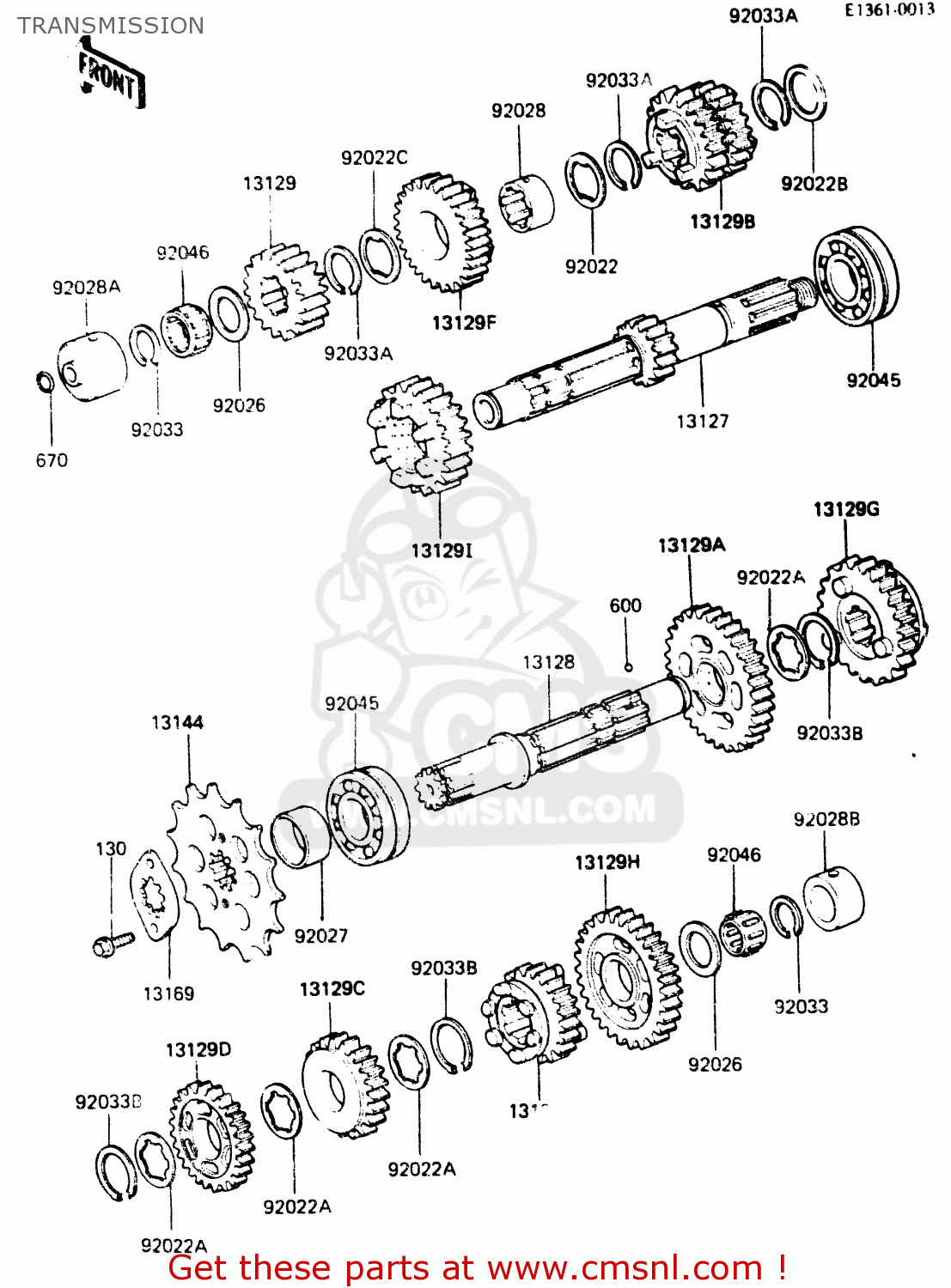

TRANSMISSION

ref

part #

description

quantity

13127

131271008
ref: 13127

SHAFT,DRIVE,14T

€ 265.00

13128

131281009
ref: 13128

SHAFT-TRANSMISSION OU

€ 163.00

13129

131291077
ref: 13129

2ND GEAR,DRIVE,18T

€ 79.50

13129A

131291078
ref: 13129A

2ND GEAR,OUTPUT,32T

€ 75.50

13129B

131291079
ref: 13129B

3RD & 4TH GEAR,21X24T

€ 103.00

13129C

131291080
ref: 13129C

GEAR,OUTPUT 3RD,29T

€ 111.50

13129D

131291081
ref: 13129D

4TH GEAR,OUTPUT,27T

€ 101.00

13129E

131291083
ref: 13129E

GEAR,OUTPUT 5TH,25T

€ 114.50

13129F

131291084
ref: 13129F

TOP GEAR,DRIVE,27T

€ 107.00

13129G

131291085
ref: 13129G

TOP GEAR,OUTPUT,23T

€ 45.00

13129H

131291564
ref: 13129H

GEAR,OUTPUT LOW,36T

€ 120.50

13129I

131291565
ref: 13129I

GEAR,INPUT 5TH,26T

€ 134.50

13144

131441016
ref: 13144

SPROCKET-OUTPUT,16T

€ 26.50

13169

131691109
ref: 13169

PLATE,ENGINE SPROCKET

€ 5.50

92022

920221072
ref: 92022

WASHER,TOOTHED,25.3X3

€ 2.00

92022A

920221139
ref: 92022A

WASHER,TOOTHED,28.3X3

€ 4.00

92022B

92022161
ref: 92022B

WASHER-THRUST,25MM

€ 7.00

92022C

92024033
ref: 92022C

WASHER,TOOTHED,25.5X3

€ 4.50

92026

920261022
ref: 92026

SPACER,20.3X30X2.0

€ 3.00

92027

920271106
ref: 92027

COLLAR,25X32X23.5

€ 8.00

92028

920281003
ref: 92028

BUSHING,DRIVE TOP GER

€ 17.50

92028A

920281032
ref: 92028A

BUSHING,INPUT SHAFT

€ 56.00

92028B

92028180
ref: 92028B

BUSHING,OUTPUT SFT

€ 21.50

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92033B

920331037
ref: 92033B

SNAP RING,25.9X1.2T

€ 3.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92046

920461030
ref: 92046

BEARING-NEEDLE,VS20/1

€ 23.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

670

670B1508
ref: 670

O RING,8MM

€ 1.00
