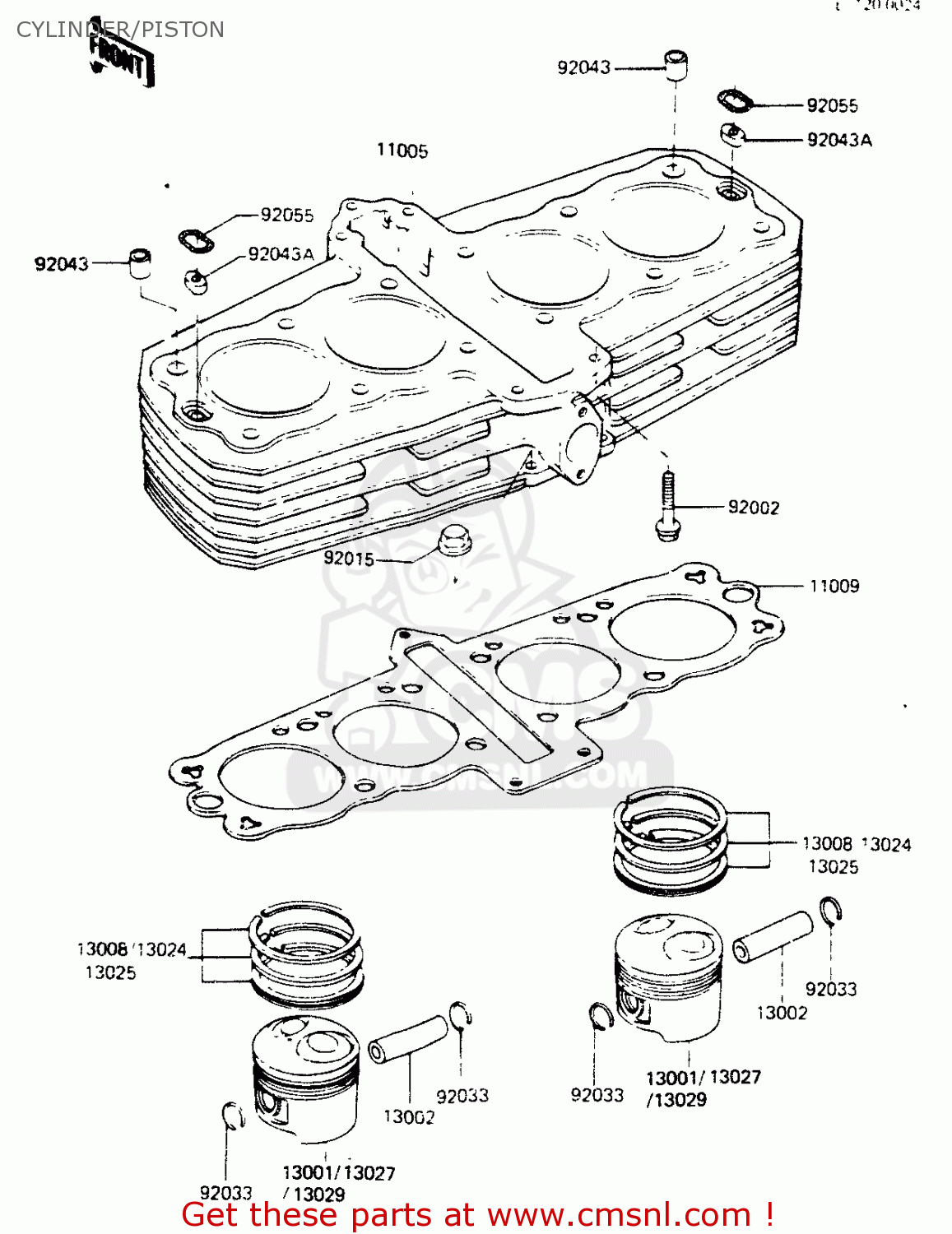

CYLINDER/PISTON

ref

part #

description

quantity

11005

110051237
ref: 11005

CYLINDER-ENGINE

€ 862.50

11009

110091294
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 26.50

13001

130011159
ref: 13001

PISTON-ENGINE,STD

€ 44.50

13002

130021005
ref: 13002

PIN-PISTON

€ 4.00

13008

130081051
ref: 13008

RING-SET-PISTON,STD

€ 51.00

13024

130241051
ref: 13024

RING-SET-PISTON LL,O/

€ 15.00

13025

130251051
ref: 13025

RING-SET-PISTON L,O/S

€ 40.00

13027

130271109
ref: 13027

PISTON-ENGINE LL,O/S

€ 52.50

13029

130291109
ref: 13029

PISTON-ENGINE L,O/S 0

€ 56.50

92002

920021104
ref: 92002

BOLT,6X28

€ 3.50

92015

920151384
ref: 92015

NUT,CAP,6MM

€ 0.50

92033

920331050
ref: 92033

RING-SNAP

€ 2.00

92043

92042031
ref: 92043

PIN,DOWEL,12X14

€ 4.50

92043A

920431059
ref: 92043A

PIN,OIL LINE

€ 4.50

92055

920551147
ref: 92055

RING-O,CYLINDER OIL L

€ 6.00
