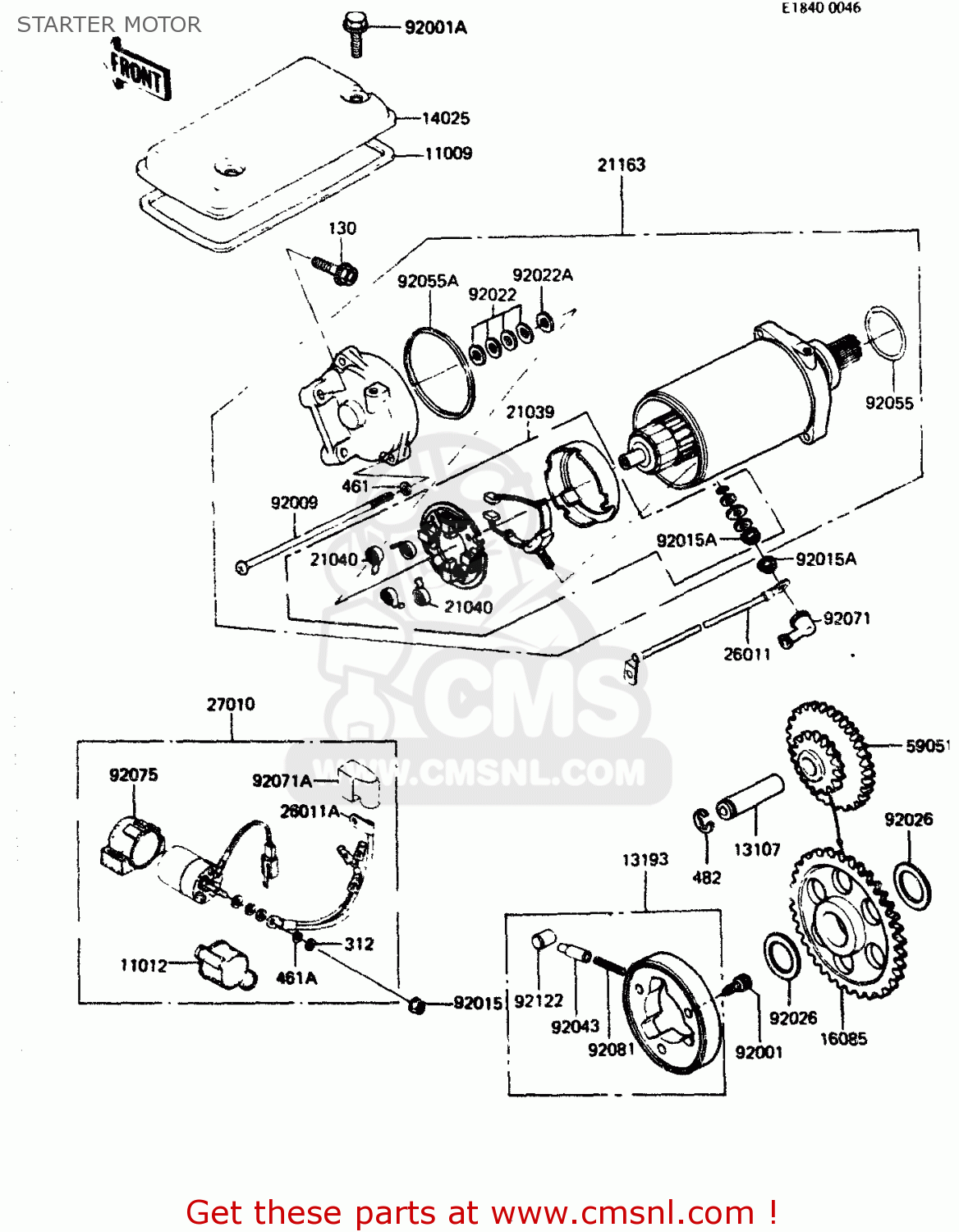

STARTER MOTOR

ref

part #

description

quantity

11009

110091069
ref: 11009

GASKET,STARTER MOTOR (MCA)

€ 8.00

11012

21141004
ref: 11012

COVER,MAG SWITCH

€ 8.50

13107

131071006
ref: 13107

SHAFT,STARTER IDLE

€ 7.00

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

14025

140251050
ref: 14025

COVER,STARTER MOTOR

€ 16.00

16085

160851030
ref: 16085

GEAR,ONEWAY CLUTCH

€ 97.50

21039

210391006
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21163

211631031
ref: 21163

STARTER-ELECTRIC

€ 427.50

26011

26010035
ref: 26011

WIRE,STARTER LEAD

€ 33.50

26011A

260111169
ref: 26011A

WIRE-LEAD,STARTER MOT

€ 28.00

27010

270101074
ref: 27010

SWITCH,MAGNETIC

€ 106.00

59051

590511011
ref: 59051

GEAR-SPUR,STARTER IDL

€ 102.50

92001

920011151
ref: 92001

BOLT,6X10

€ 3.00

92001A

920011424
ref: 92001A

BOLT,SOCKET,8X10

€ 3.00

92009

21015005
ref: 92009

SCREW-PAN HEAD,6X110

€ 5.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151195
ref: 92015A

NUT,FLANGED,6MM

€ 1.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92026

920261025
ref: 92026

SPACER,25X36X3.2

€ 3.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

21027004
ref: 92055

ORING-STARTING MOTR

€ 6.50

92055A

920551086
ref: 92055A

O RING,64MM

€ 6.50

92071

21017020
ref: 92071

CAP,STARTING MOTOR

€ 6.00

92071A

21017021
ref: 92071A

CAP,MAG SWITCH TEMNL

€ 8.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081159
ref: 92081

SPRING, COIL

€ 2.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

312

312B0600
ref: 312

NUT,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

482

482K0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 0.50
