SUSPENSION/SHOCK ABSORBER

ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

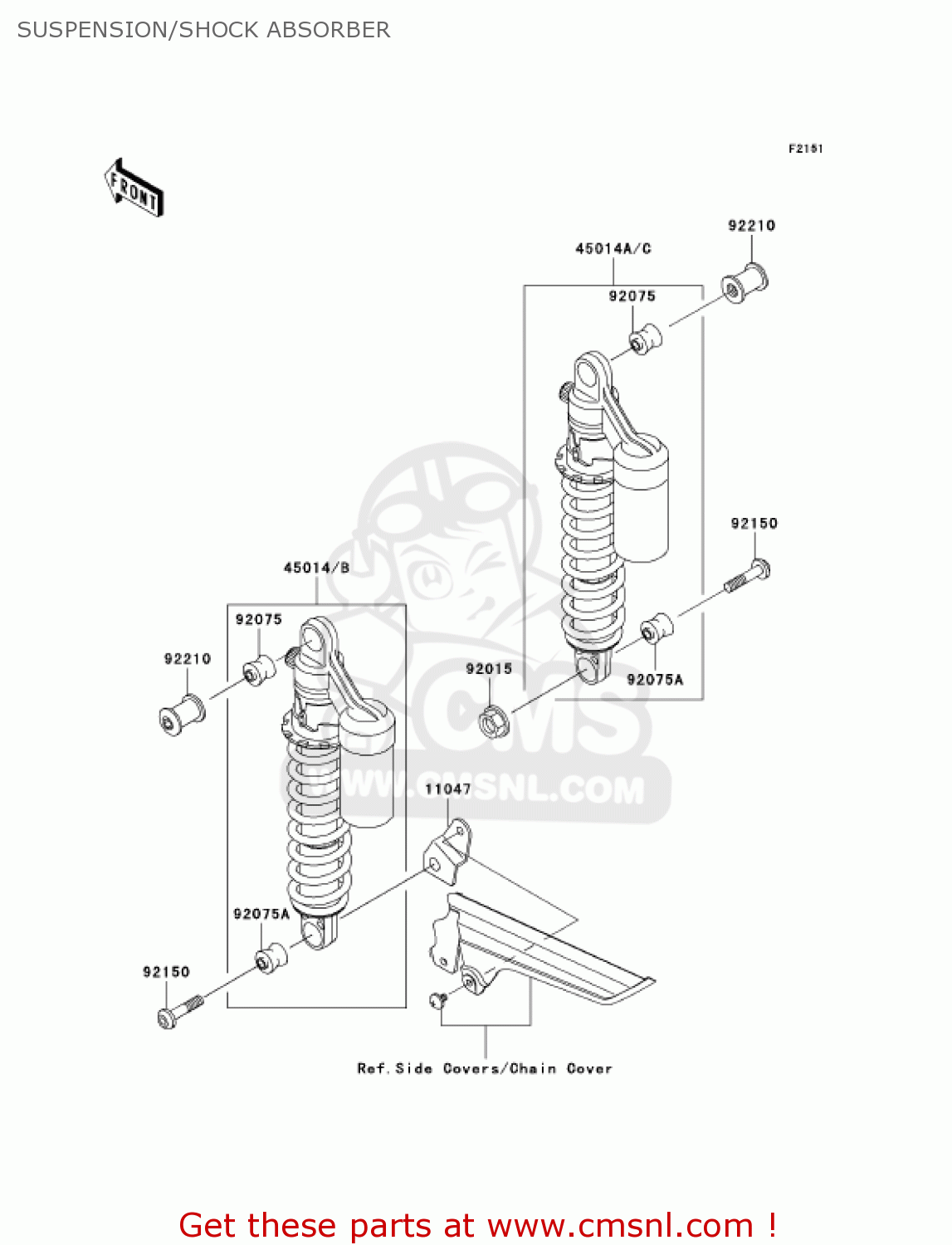

Suspension/shock absorber diagram ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

SUSPENSION/SHOCK ABSORBER ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

SUSPENSION/SHOCK ABSORBER ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11047

110471239
ref: 11047

BRACKET,CHAIN CASE

€ 7.50

45014

4501400012H
ref: 45014

SHOCKABSORBER,LH,BARR

€ 872.50

45014

4501400022H
ref: 45014

SHOCKABSORBER,RH,BARR

€ 1,003.00

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92075

920751586
ref: 92075

DAMPER,SHOCKABSORBER

€ 10.50

92150

921501736
ref: 92150

BOLT

€ 8.50

92210

922101274
ref: 92210

NUT,HOOK

€ 14.50
