Genuine ZR Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

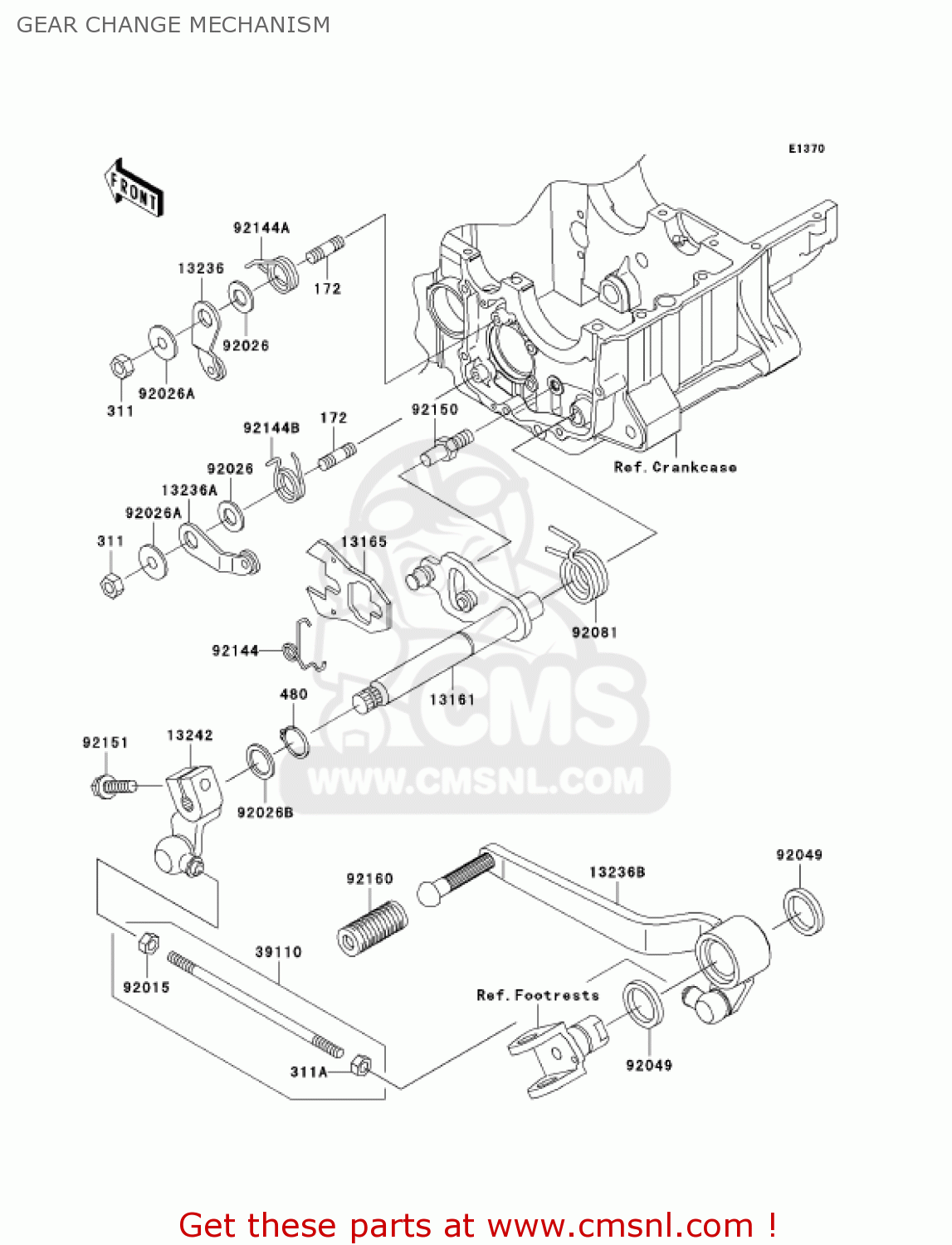

Gear change mechanism diagram ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
311A
311J0600
ref: 311A
NUT-HEX
311J0600
€ 1.00
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611155
ref: 13161
LEVER-COMP-CHANGE SHA
131611155
€ 76.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13236A
132361216
ref: 13236A
LEVER-COMP,GEAR POSIT
132361216
€ 9.00
13236B
132361365
ref: 13236B
LEVER-COMP,PEDAL
132361365
€ 51.50
13242
132421323
ref: 13242
LEVER-ASSY-CHANGE,LIN
132421323
€ 32.50
39110
391101106
ref: 39110
ROD-ASSY-TIE
391101106
€ 8.00
92015
920151178
ref: 92015
NUT
920151178
€ 2.50
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92026B
920261532
ref: 92026B
SPACER
920261532
€ 3.00
92049
920491492
ref: 92049
SEAL-OIL
920491492
€ 6.00
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92144A
921441856
ref: 92144A
SPRING
921441856
€ 6.50
92144B
921441857
ref: 92144B
SPRING,GEAR POSITION
921441857
€ 6.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92151
921511450
ref: 92151
BOLT,6X20
921511450
€ 1.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
