BRAKE PEDAL/TORQUE LINK

ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

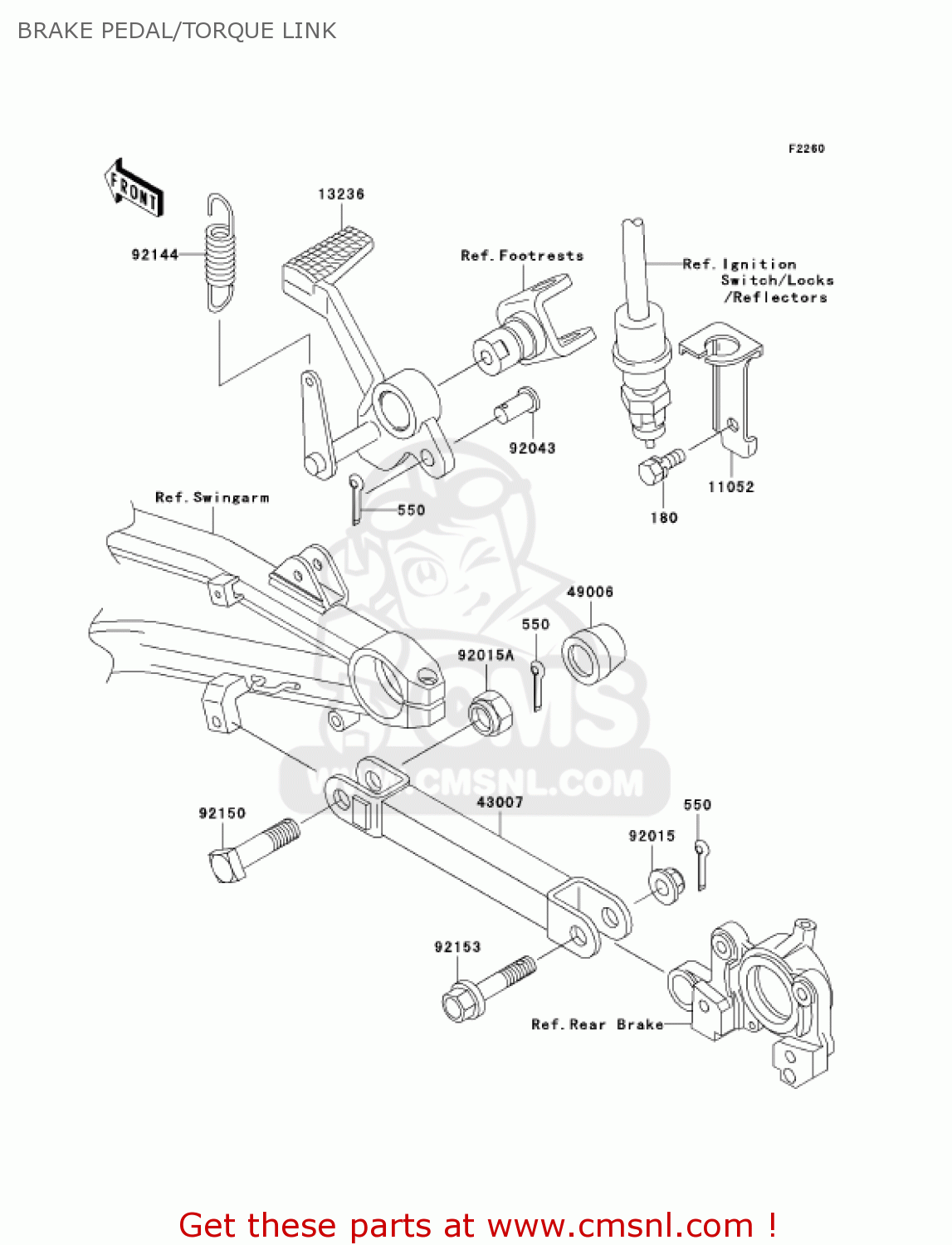

Brake pedal/torque link diagram ZR1200A3 ZRX1200R 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

11052

110521358
ref: 11052

BRACKET,RR BRAKE SWIT

€ 15.50

13236

132361293
ref: 13236

LEVER-COMP,PEDAL

€ 81.00

43007

430071194
ref: 43007

ROD-TORQUE

€ 21.00

49006

490061275
ref: 49006

BOOT

€ 3.00

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151883
ref: 92015A

NUT,10MM

€ 6.00

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92144

921441470
ref: 92144

SPRING,EXHAUST CONNEC

€ 4.00

92150

921501598
ref: 92150

BOLT,10X39.5

€ 5.00

92153

921531053
ref: 92153

BOLT,FLANGED,8X38

€ 7.50
