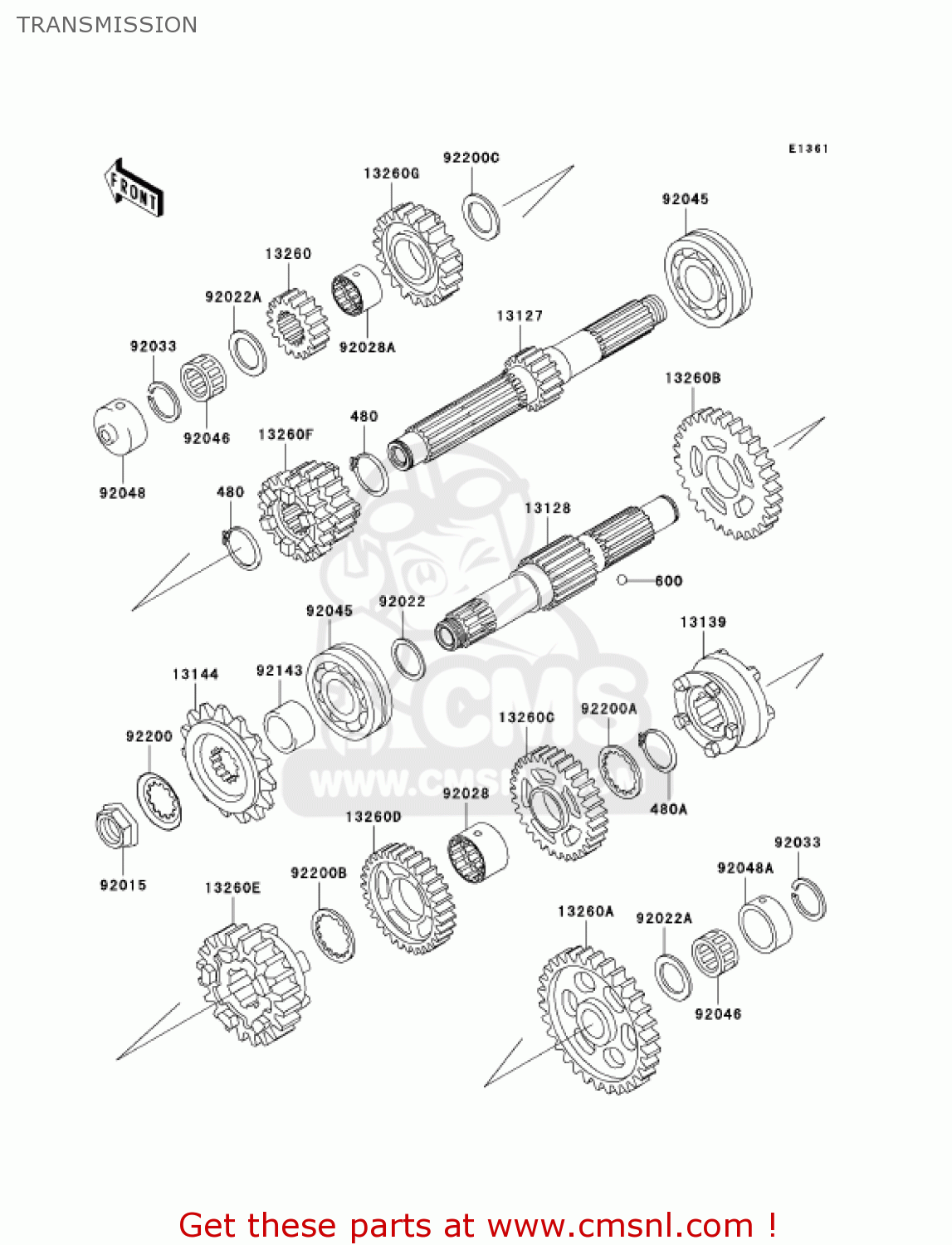

TRANSMISSION

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271257
ref: 13127

SHAFT-TRANSMISSION IN

€ 229.00

13128

131281218
ref: 13128

SHAFT-TRANSMISSION OU

€ 195.50

13139

131391079
ref: 13139

SHIFTER

€ 90.50

13144

131441283
ref: 13144

SPROCKET-OUTPUT,17T

€ 36.00

13260

132601663
ref: 13260

GEAR,INPUT 2ND,19T

€ 112.00

13260A

132601665
ref: 13260A

GEAR,OUTPUT LOW,41T

€ 173.50

13260B

132601666
ref: 13260B

GEAR,OUTPUT 2ND,37T

€ 155.00

13260C

132601667
ref: 13260C

GEAR,OUTPUT 3RD,34T

€ 155.00

13260D

132601668
ref: 13260D

GEAR,OUTPUT 4TH,31T

€ 170.50

13260E

132601669
ref: 13260E

GEAR,OUTPUT TOP,29T

€ 155.00

13260F

132601924
ref: 13260F

GEAR,INPUT 3RD&4TH,23

€ 245.00

13260G

132601925
ref: 13260G

GEAR,INPUT TOP,28T

€ 128.00

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92022

920221219
ref: 92022

WASHER,28.3X42X2.9

€ 10.50

92022A

92022212
ref: 92022A

WASHER-PLAIN,22MM

€ 6.50

92028

920281753
ref: 92028

BUSHING,OUTPUT,3RD&4T

€ 28.50

92028A

920281802
ref: 92028A

BUSHING,INPUT,TOP GEA

€ 30.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451413
ref: 92045

BEARING-BALL

€ 73.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

92143

921431731
ref: 92143

COLLAR,28X40X33.5

€ 23.50

92200

922001234
ref: 92200

WASHER,TOOTHED,23.9X4

€ 4.00

92200A

922001277
ref: 92200A

WASHER,TOOTHED,28X30X

€ 8.00

92200B

922001278
ref: 92200B

WASHER,29.9X40X1.5

€ 8.00

92200C

922001340
ref: 92200C

WASHER

€ 4.00

all assemblies
