Genuine ZR Kawasaki Parts delivered quickly!


OIL PUMP/OIL FILTER

ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA

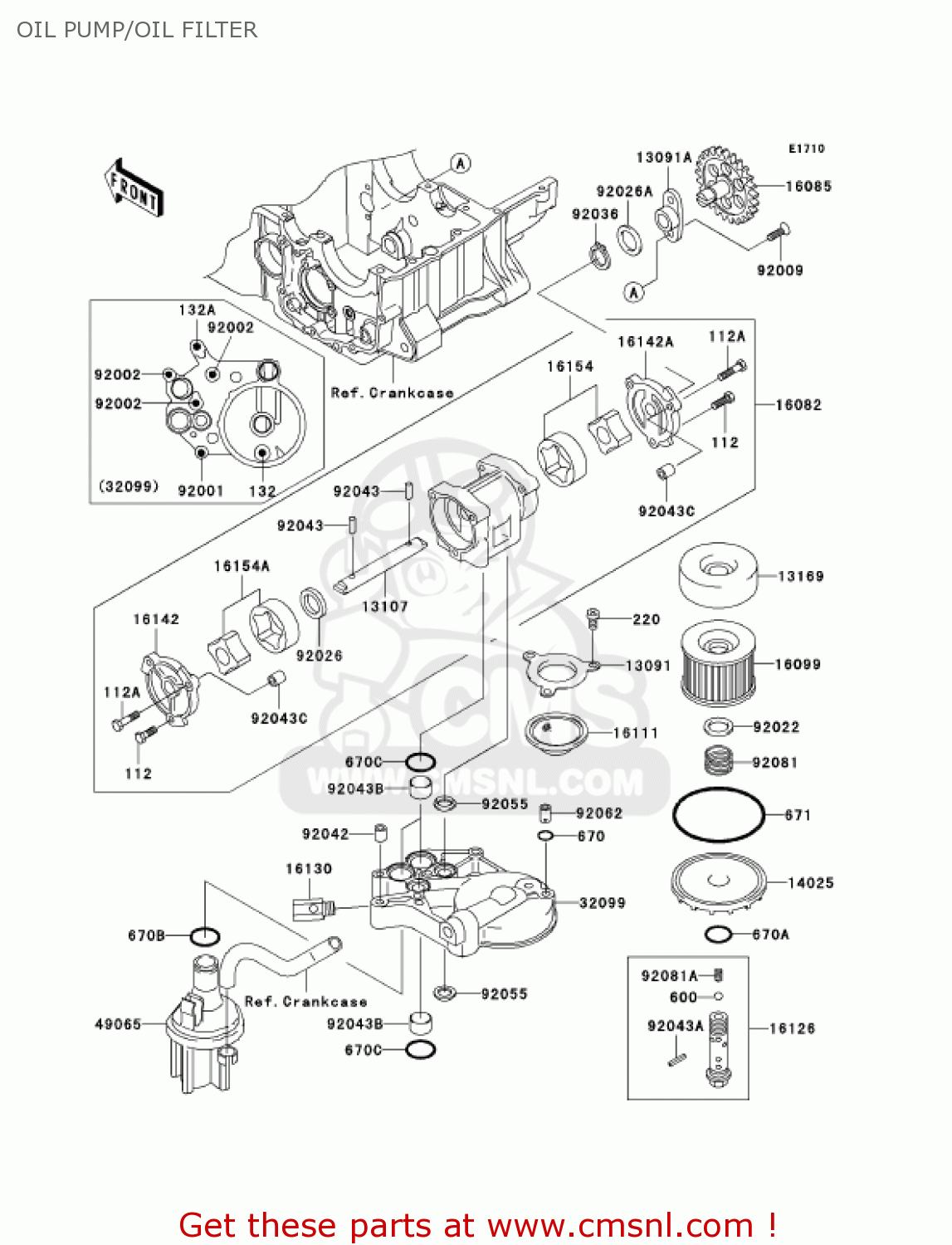

Oil pump/oil filter diagram ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
112G0618
€ 0.50
112A
112G0625
ref: 112A
BOLT-UPSET,6X25
112G0625
€ 4.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
132G0645
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
130911274
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
130911333
€ 21.00
13107
131071338
ref: 13107
SHAFT
€ 70.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
131691313
€ 7.00
14025
140251422
ref: 14025
COVER,OIL FILTER,F.BL
140251422
€ 31.00
16082
160821138
ref: 16082
PUMP-ASSY-OIL
€ 253.00
16085
160851283
ref: 16085
GEAR
160851283
€ 97.50
16099
16099003
ref: 16099
FILTER,OIL
16099003
€ 6.50
16111
16111003
ref: 16111
STRAINER,OIL
16111003
€ 10.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301058
ref: 16130
VALVE-ASSY-RELIEF
161301058
€ 30.00
16142
161421088
ref: 16142
COVER-PUMP,LH
161421088
€ 32.00
16142A
161421089
ref: 16142A
COVER-PUMP,RH
161421089
€ 32.00
16154
161541007
ref: 16154
ROTOR ASSY,OIL PUMP
161541007
€ 51.50
16154A
161541078
ref: 16154A
ROTOR-PUMP
161541078
€ 51.50
32099
320991083
ref: 32099
CASE,OIL FILTER
320991083
€ 89.00
49065
490651087
ref: 49065
FILTER-OIL
490651087
€ 22.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92002
920021431
ref: 92002
BOLT,6X38
920021431
€ 3.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92026
920261230
ref: 92026
SPACER,OIL PUMP
€ 2.50
92026A
920261534
ref: 92026A
SPACER
920261534
€ 2.50
92036
920361052
ref: 92036
RING-SNAP,PUMP GEAR
920361052
€ 4.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431061
ref: 92043
PIN,DOWEL,5X17.8
920431061
€ 3.00
92043A
92043111
ref: 92043A
SPRING PIN
92043111
€ 4.00
92043B
920431213
ref: 92043B
PIN,18X20X12
920431213
€ 4.00
92043C
920431302
ref: 92043C
PIN,DOWEL,8X10
920431302
€ 1.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92062
920621055
ref: 92062
NOZZLE
920621055
€ 6.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
