CHASSIS ELECTRICAL EQUIPMENT

ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA

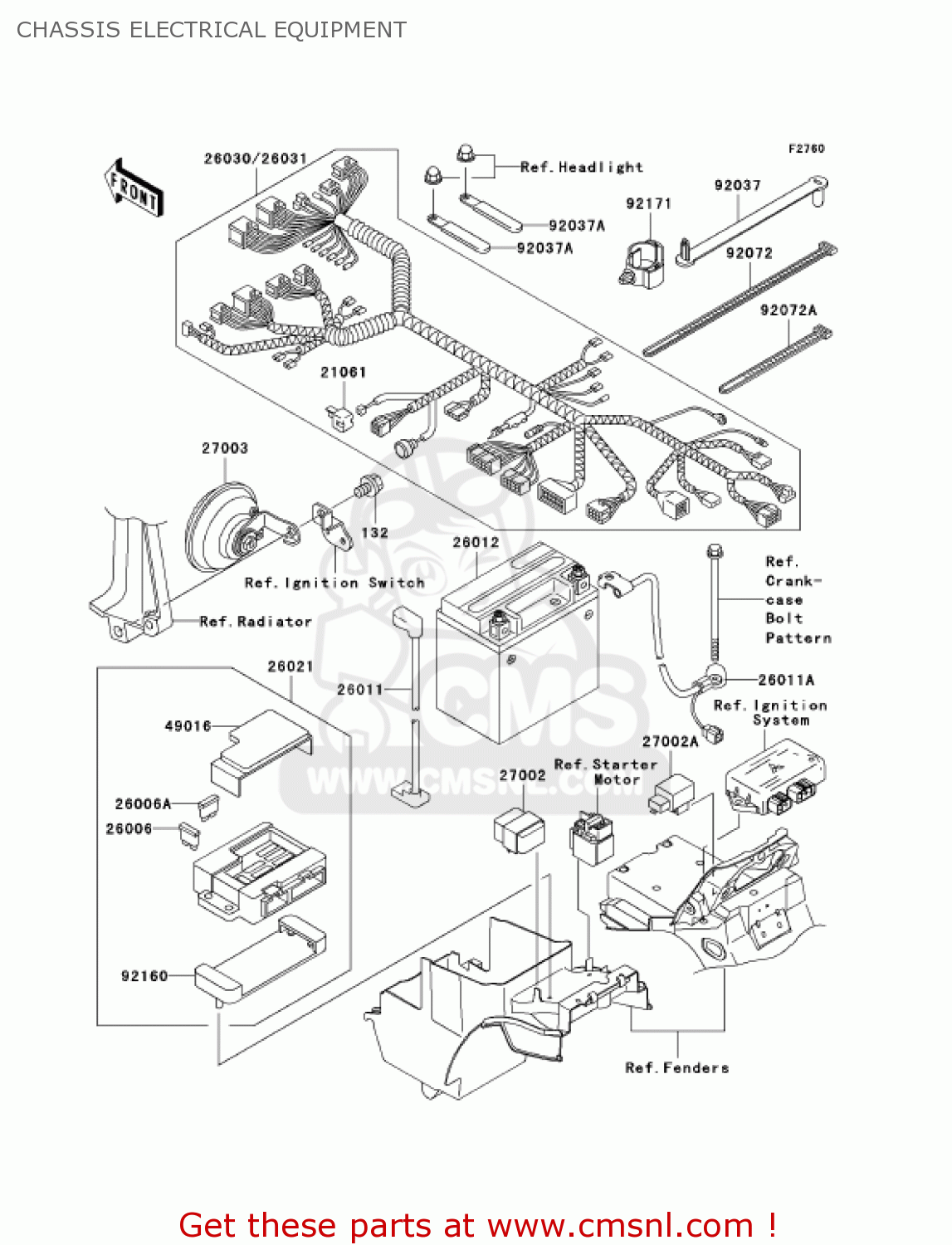

Chassis electrical equipment diagram ZR1200A2 ZRX1200R 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132J0812
ref: 132

BOLT-FLANGED-SMALL,8X

€ 1.50

21061

210611059
ref: 21061

RECTIFIER

€ 29.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111792
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 26.50

26011A

260111793
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 27.50

26012

260121409
ref: 26012

BATTERY,FTZ14-BS,12V

€ 154.00

26021

260211096
ref: 26021

JUNCTION BOX

€ 112.00

26030

260301841
ref: 26030

HARNESS,MAIN

€ 246.00

27002

270021078
ref: 27002

RELAY-ASSY,HEAD LAMP

€ 60.00

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031424
ref: 27003

HORN,RH

€ 61.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371993
ref: 92037A

CLAMP

€ 3.50

92072

920721237
ref: 92072

BAND,L=250

€ 2.00

92072A

920721293
ref: 92072A

BAND

€ 6.50

92160

921601650
ref: 92160

DAMPER,JUNCTION BOX

€ 9.50

92171

921711415
ref: 92171

CLAMP,C CRIP,DIA=13

€ 1.50
