TAILLIGHT(S)

ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

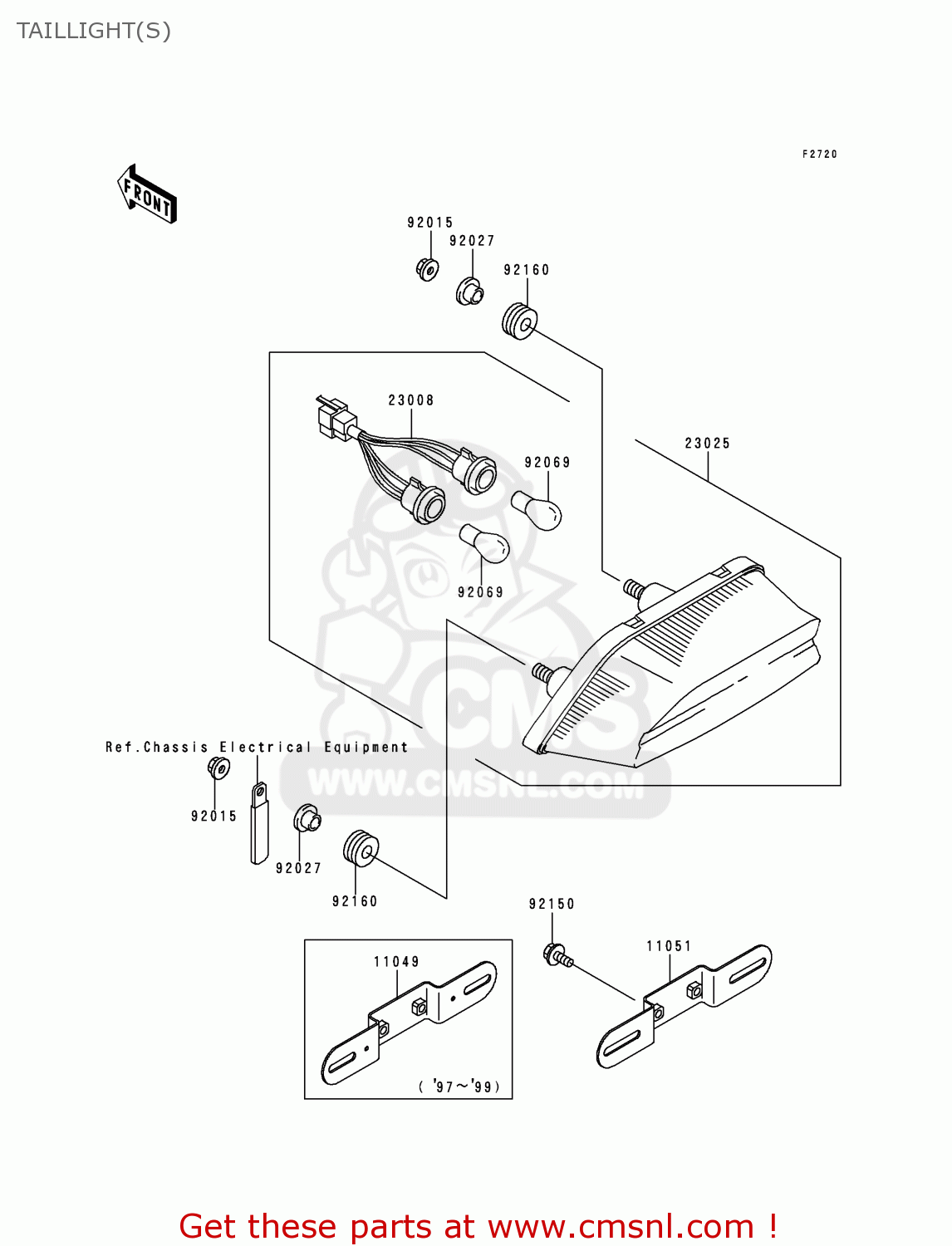

Taillight(s) diagram ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

TAILLIGHT(S) ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

TAILLIGHT(S) ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

prices are in EUR

ref

part #

description

quantity

11051

110511503
ref: 11051

BRACKET,LICENSE

€ 11.50

23008

230081413
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 29.50

23025

230251264
ref: 23025

LAMP-TAIL

€ 172.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
