Genuine ZR Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

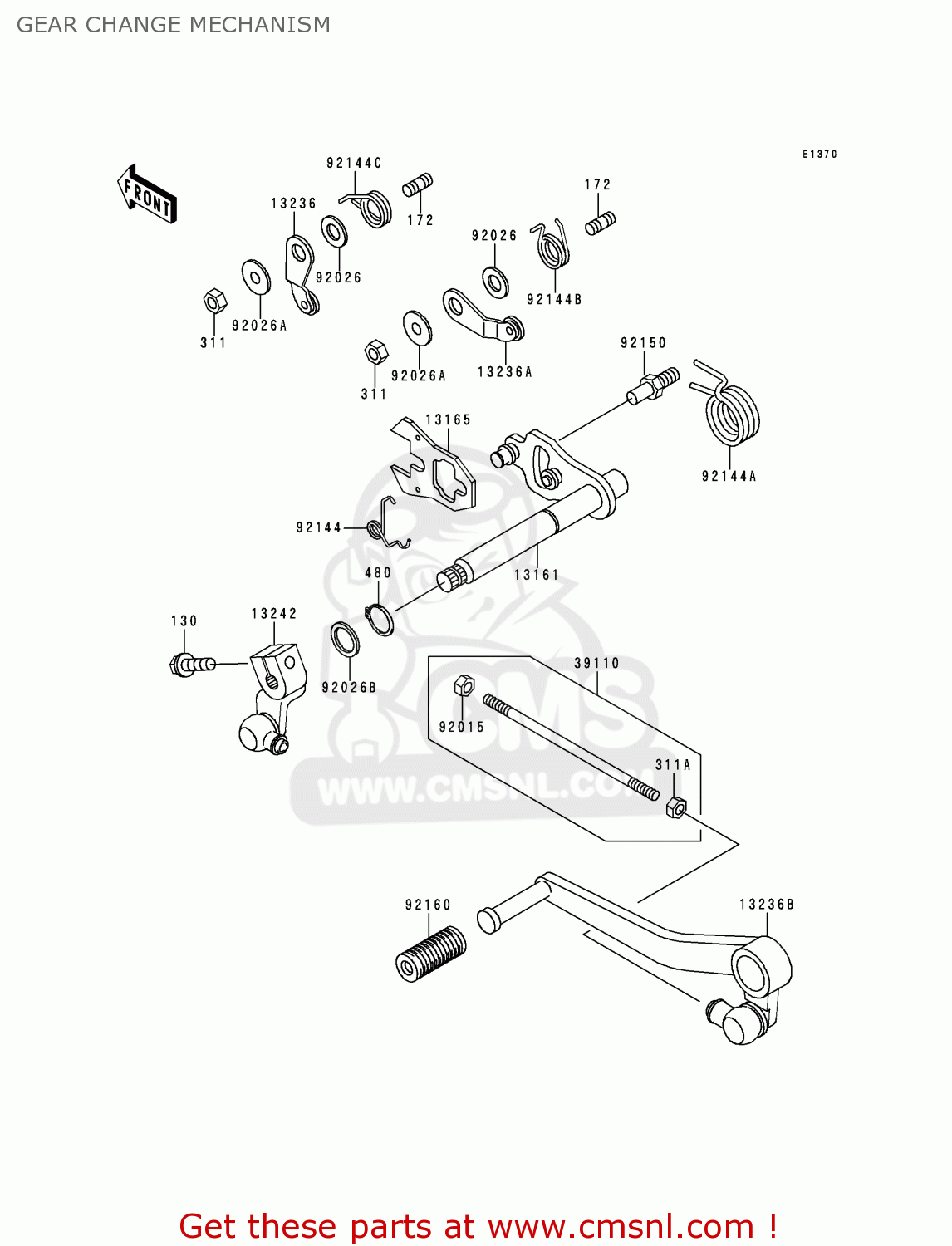

Gear change mechanism diagram ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

GEAR CHANGE MECHANISM ZR1100C4 ZRX1100 2000 EUROPE UK FR NR
GEAR CHANGE MECHANISM ZR1100C4 ZRX1100 2000 EUROPE UK FR NR
GEAR CHANGE MECHANISM ZR1100C4 ZRX1100 2000 EUROPE UK FR NR
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
311A
311J0600
ref: 311A
NUT-HEX
311J0600
€ 1.00
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611155
ref: 13161
LEVER-COMP-CHANGE SHA
131611155
€ 76.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13236A
132361216
ref: 13236A
LEVER-COMP,GEAR POSIT
132361216
€ 9.00
13236B
132361301
ref: 13236B
LEVER-COMP,CHANGE PED
132361301
€ 74.50
13242
132421323
ref: 13242
LEVER-ASSY-CHANGE,LIN
132421323
€ 32.50
39110
391101106
ref: 39110
ROD-ASSY-TIE
391101106
€ 8.00
92015
920151178
ref: 92015
NUT
920151178
€ 2.50
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92026B
920261532
ref: 92026B
SPACER
920261532
€ 3.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92144A
921441074
ref: 92144A
SPRING,CHANGE PEDAL R
921441074
€ 6.50
92144B
921441523
ref: 92144B
SPRING,GEAR POSITION
921441523
€ 6.00
92144C
921441856
ref: 92144C
SPRING
921441856
€ 6.50
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
