STARTER MOTOR
ZR1100C4 ZRX1100 2000 EUROPE UK FR NR

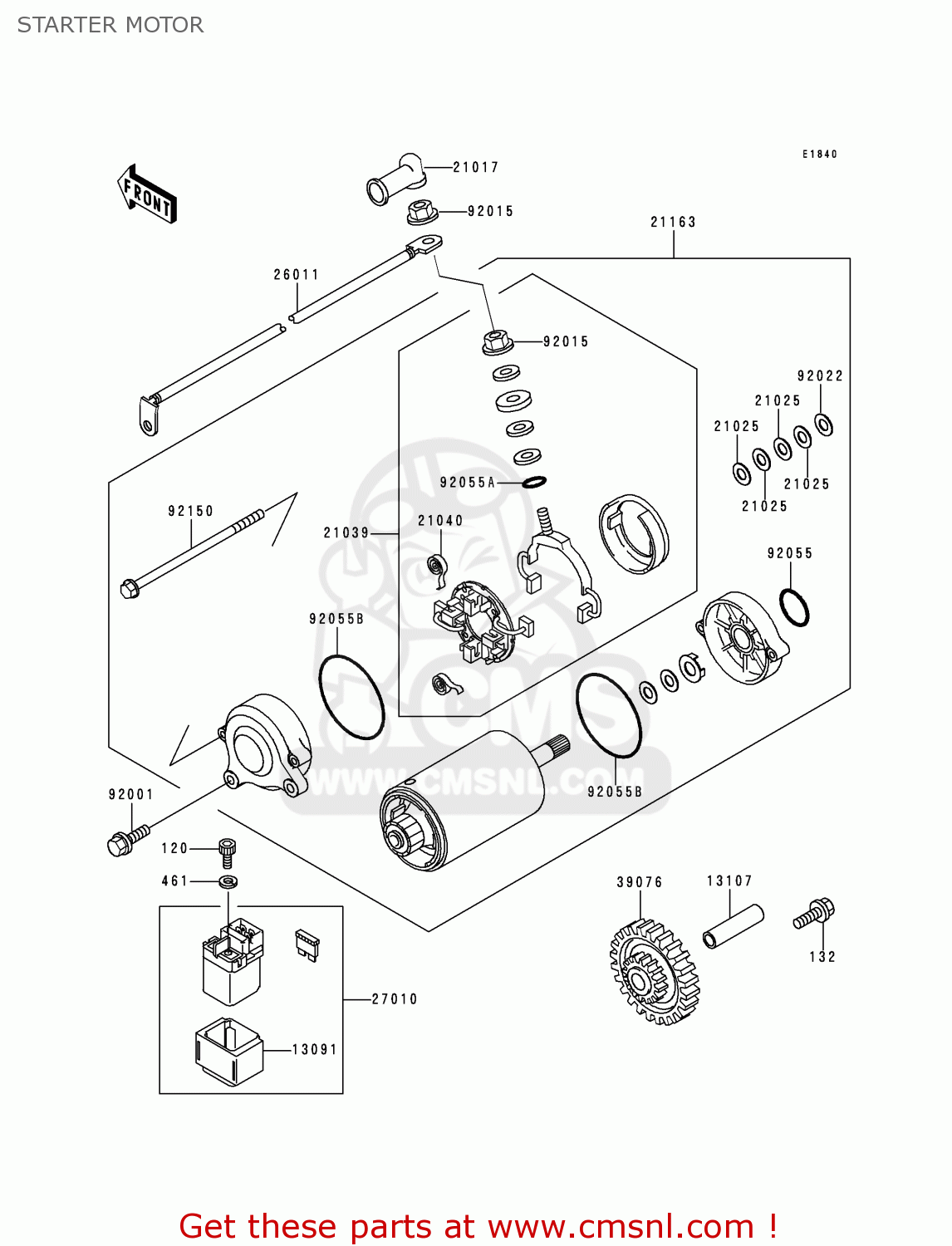

Starter motor diagram ZR1100C4 ZRX1100 2000 EUROPE UK FR NR
STARTER MOTOR ZR1100C4 ZRX1100 2000 EUROPE UK FR NR
×
prices are in EUR
ref
part #
description
quantity
120
120S0510
ref: 120
BOLT-SOCKET
€ 0.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
13091
130911884
ref: 13091
HOLDER,MAGNETIC SWITC
€ 8.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
€ 11.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631161
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111654
ref: 26011
WIRE-LEAD
€ 56.50
27010
270101327
ref: 27010
SWITCH,MAGNETIC
€ 116.00
39076
390761061
ref: 39076
LIMITER,STARTER IDLE
€ 105.00
92001
920011947
ref: 92001
BOLT,6X20
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92150
921501143
ref: 92150
BOLT,MOTOR
€ 6.50
