SIDEBAG
ZN1300A4 1986 USA CALIFORNIA CANADA

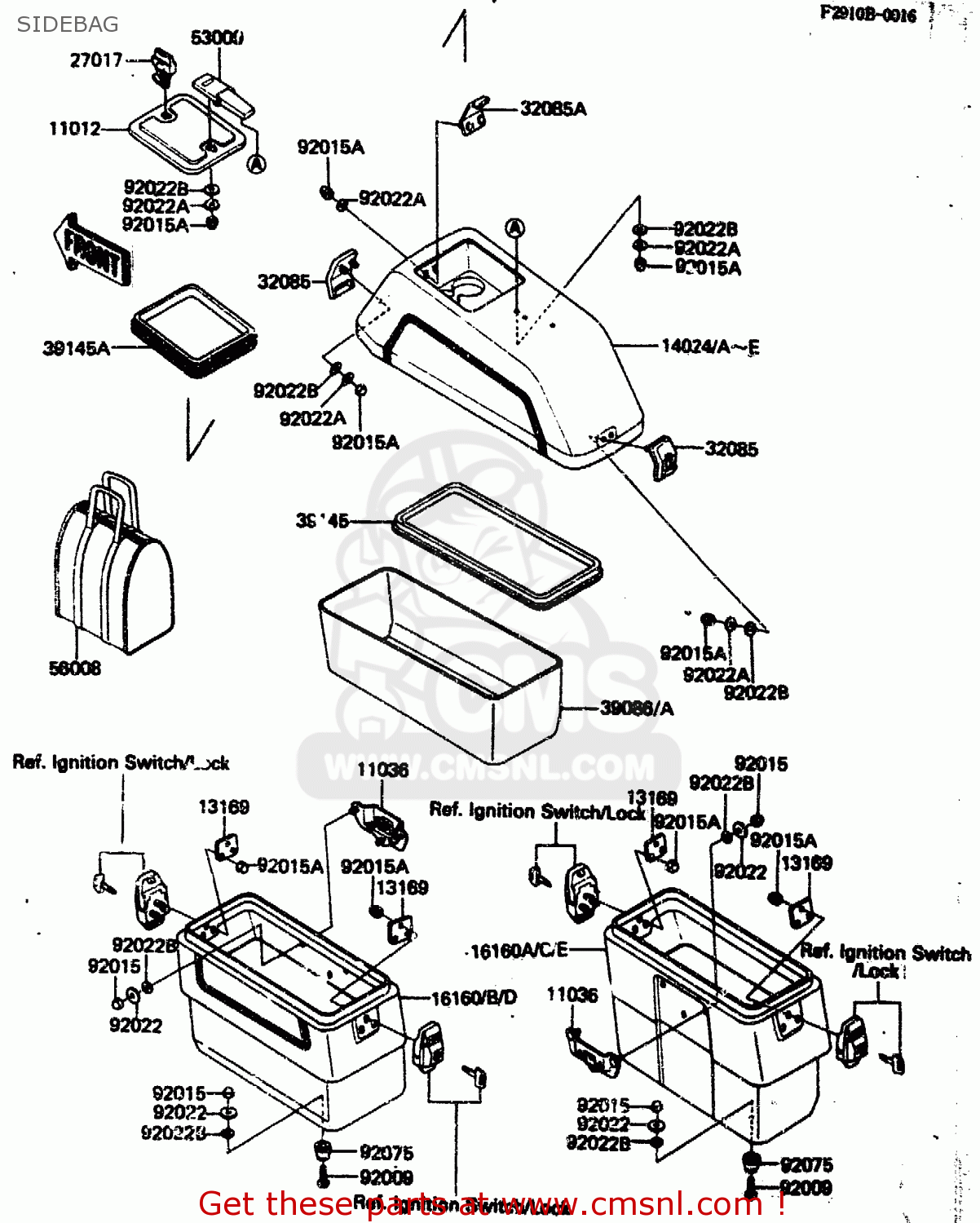

Sidebag diagram ZN1300A4 1986 USA CALIFORNIA CANADA
SIDEBAG ZN1300A4 1986 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121295
ref: 11012
CAP,SIDEBAG
€ 26.00
11036
110361912
ref: 11036
BRACKET-A,SIDEBAG
€ 20.50
13169
131691600
ref: 13169
PLATE,SIDEBAG
€ 4.00
14024D
140255238P5
ref: 14024D
SADDLE BAG COVER,LH,LUMINOUS VINTAGE RED
€ 475.00
14024E
140255239P5
ref: 14024E
COVER SODE BAG RH RED
€ 684.00
16160D
161605011P5
ref: 16160D
SADDLE BAG BODY,LH,LUMINOUS VINTAGE RED
€ 743.00
16160E
161605012P5
ref: 16160E
BODY SIDE BAG RH RED
€ 929.50
27017
270171103
ref: 27017
LOCK,BAG
€ 38.00
32085
320851122
ref: 32085
STOPPER,SIDEBAG
€ 27.00
32085A
320851154
ref: 32085A
STOPPER,SIDEBAG COVER
€ 8.00
39086
390861003
ref: 39086
PAD-STORAGE,SIDEBAG,L
€ 113.00
39086A
390861004
ref: 39086A
PAD-STORAGE,SIDEBAG,R
€ 164.50
39145
391451003
ref: 39145
TRIM-SEAL,SIDEBAG
€ 27.50
39145A
391451052
ref: 39145A
TRIM-SEAL,SIDE BAG
€ 9.50
53009
530091039
ref: 53009
HINGE,SIDEBAG
€ 60.50
56008
560081025
ref: 56008
BAG,SIDE,INNER
€ 183.50
92009
920091066
ref: 92009
SCREW,6X28
€ 2.00
92015
920151262
ref: 92015
NUT,LOCK 6MM
€ 3.50
92015A
920151263
ref: 92015A
NUT,LOCK 5MM
€ 4.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
€ 3.00
92022A
920221405
ref: 92022A
WASHER,5.5X20X1.2
€ 2.50
92022B
920221477
ref: 92022B
WASHER,RUBBER
€ 2.50
92075
920751510
ref: 92075
DAMPER,TRUNK & SIDEBA
€ 9.00
