HEAD LAMP
ZN1300A4 1986 USA CALIFORNIA CANADA

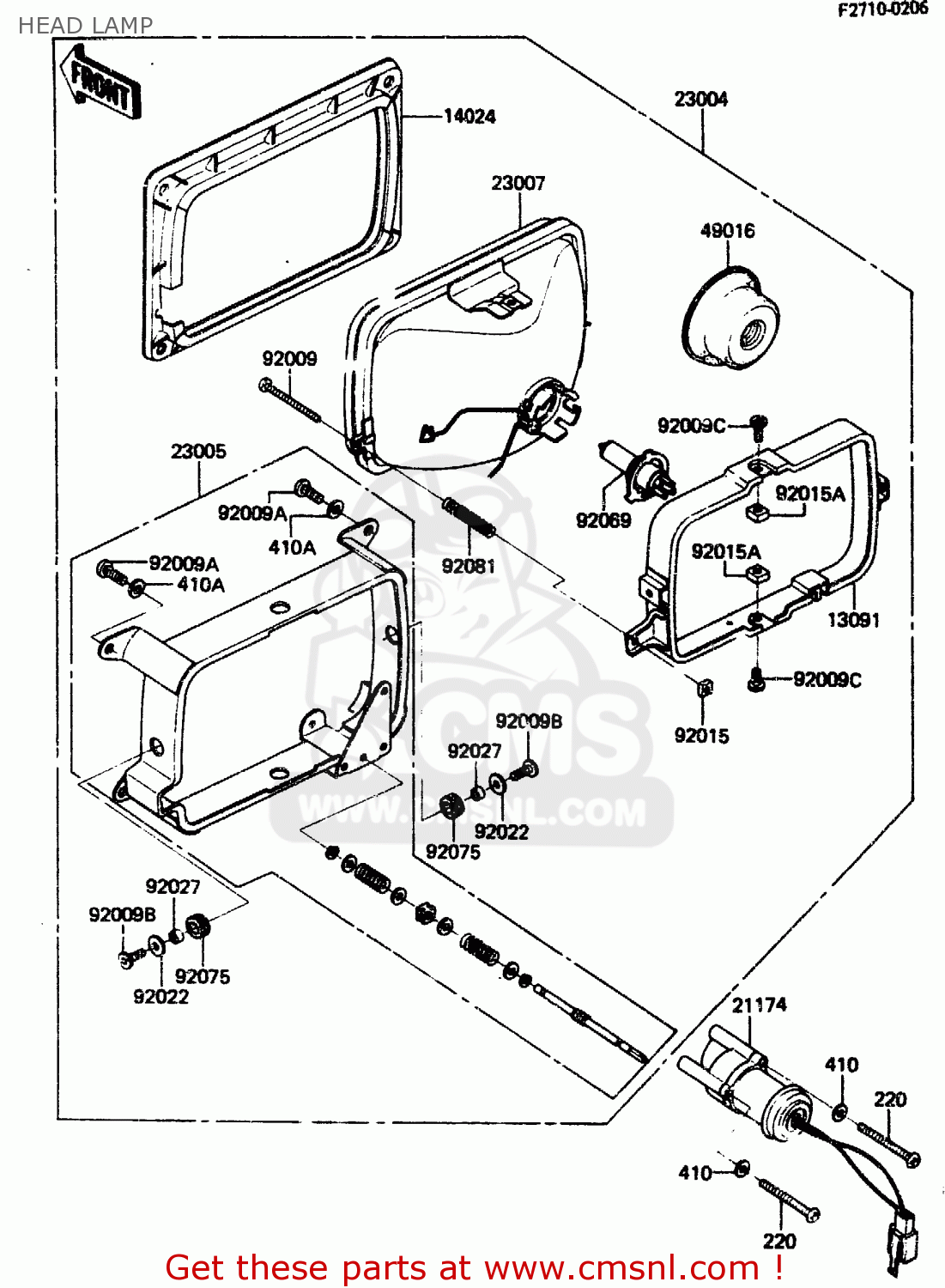

Head lamp diagram ZN1300A4 1986 USA CALIFORNIA CANADA
HEAD LAMP ZN1300A4 1986 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13091
130911187
ref: 13091
HOLDER,HEAD LAMP BODY
€ 36.00
14024
140251678
ref: 14024
COVER,HEAD LAMP LENS
€ 44.00
21174
211741051
ref: 21174
MOTOR-ELECTRIC,FOCUS
€ 350.00
23004
230041115
ref: 23004
LAMP-HEAD
€ 261.00
23005
230051031
ref: 23005
BODY-COMP-HEAD LAMP
€ 73.00
23007
230071054
ref: 23007
LENS-COMP,HEAD LAMP
€ 103.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92009
920091047
ref: 92009
SCREW,HEAD LAMP LENS
€ 3.00
92009A
920091157
ref: 92009A
SCREW,5MM,BLACK
€ 2.50
92009B
920091188
ref: 92009B
SCREW,5X12
€ 3.50
92009C
920091189
ref: 92009C
SCREW,5X8
€ 3.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151253
ref: 92015A
NUT,5MM
€ 2.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92027
920271583
ref: 92027
COLLAR,WITH SLIT,5.2X
€ 4.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751482
ref: 92075
DAMPER,HEAD LAMP HOLD
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
220
220B0445
ref: 220
SCREW-PAN-CROS
€ 2.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
410A
410C0500
ref: 410A
WASHER-PLANE-SMALL 5
€ 0.50
