AUDIO A
ZN1300A4 1986 USA CALIFORNIA CANADA

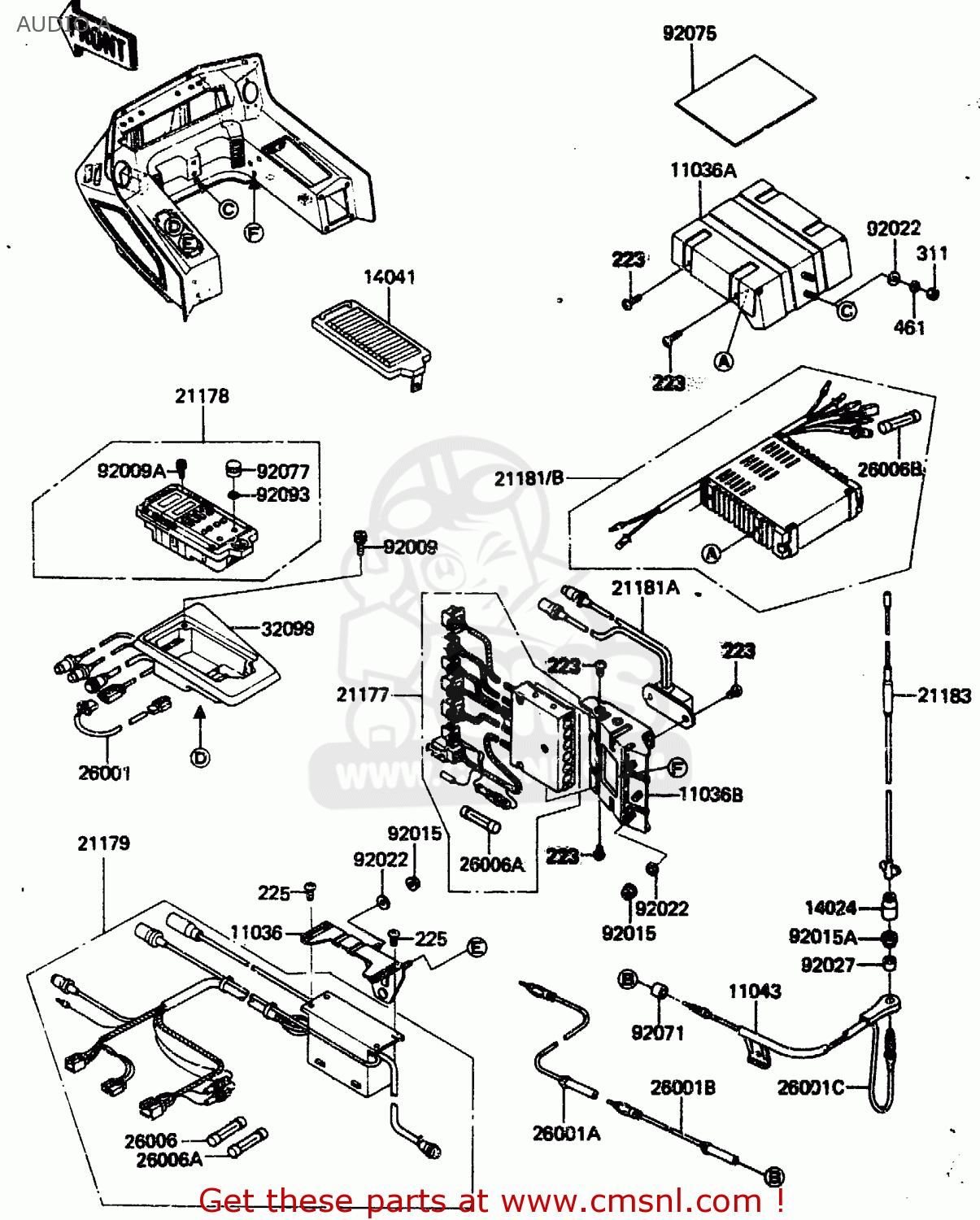

Audio a diagram ZN1300A4 1986 USA CALIFORNIA CANADA
AUDIO A ZN1300A4 1986 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361955
ref: 11036
BRACKET-A,RADIO
€ 13.50
11036A
110361956
ref: 11036A
BRACKET-A,AMPLIFIER
€ 14.50
11036B
110361957
ref: 11036B
BRACKET-A,CONTROLER
€ 17.00
11043
110431296
ref: 11043
BRACKET-B,ANTENNA
€ 57.00
14024
140251773
ref: 14024
COVER,ANTENNA
€ 15.50
14041
140411023
ref: 14041
COVER-COMP,CTL SWITCH
€ 38.00
21177
211771001
ref: 21177
CONTROLLER,MIXING
€ 446.50
21178
211781051
ref: 21178
CONTROL-SWITCH
€ 321.00
21179
211791001
ref: 21179
RADIO TUNER
€ 1,038.00
21181B
211811052
ref: 21181B
AMPLIFIER
€ 133.50
21183
211831051
ref: 21183
ANTENNA,ROD
€ 108.50
26001
260011563
ref: 26001
HARNESS,CTL SWITCH
€ 4.00
26001A
260011564
ref: 26001A
HARNESS,ANTENNA
€ 14.50
26001B
260011565
ref: 26001B
HARNESS,ANTENNA
€ 14.50
26001C
260011566
ref: 26001C
HARNESS,ANTENNA
€ 15.50
26006
260061001
ref: 26006
FUSE,2A L=30M/M
€ 2.00
26006A
260061055
ref: 26006A
FUSE,1A,L=30
€ 3.00
32099
320991053
ref: 32099
CASE,CONTROL SWITCH
€ 230.50
92009
920091267
ref: 92009
SCREW,SOCKET,5MM
€ 1.00
92009A
920091268
ref: 92009A
SCREW,SOCKET,5X8
€ 1.00
92015
920151262
ref: 92015
NUT,LOCK 6MM
€ 3.50
92015A
920151313
ref: 92015A
NUT,ANTENNA
€ 3.00
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
€ 0.50
92027
920271681
ref: 92027
COLLAR,ANTENNA
€ 2.50
92071
920711057
ref: 92071
GROMMET,ANTENNA LEAD
€ 2.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
€ 6.00
92077
920771053
ref: 92077
KNOB,CASSETTE DECK
€ 5.50
92093
920931155
ref: 92093
SEAL,CASSETTE DECK
€ 1.00
223
223B0510
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
225
225B0410
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
311
311C0600
ref: 311
NUT-HEX,6MM,BLACK
€ 0.50
461
461K0600
ref: 461
WASHER-SPRING
€ 0.50
