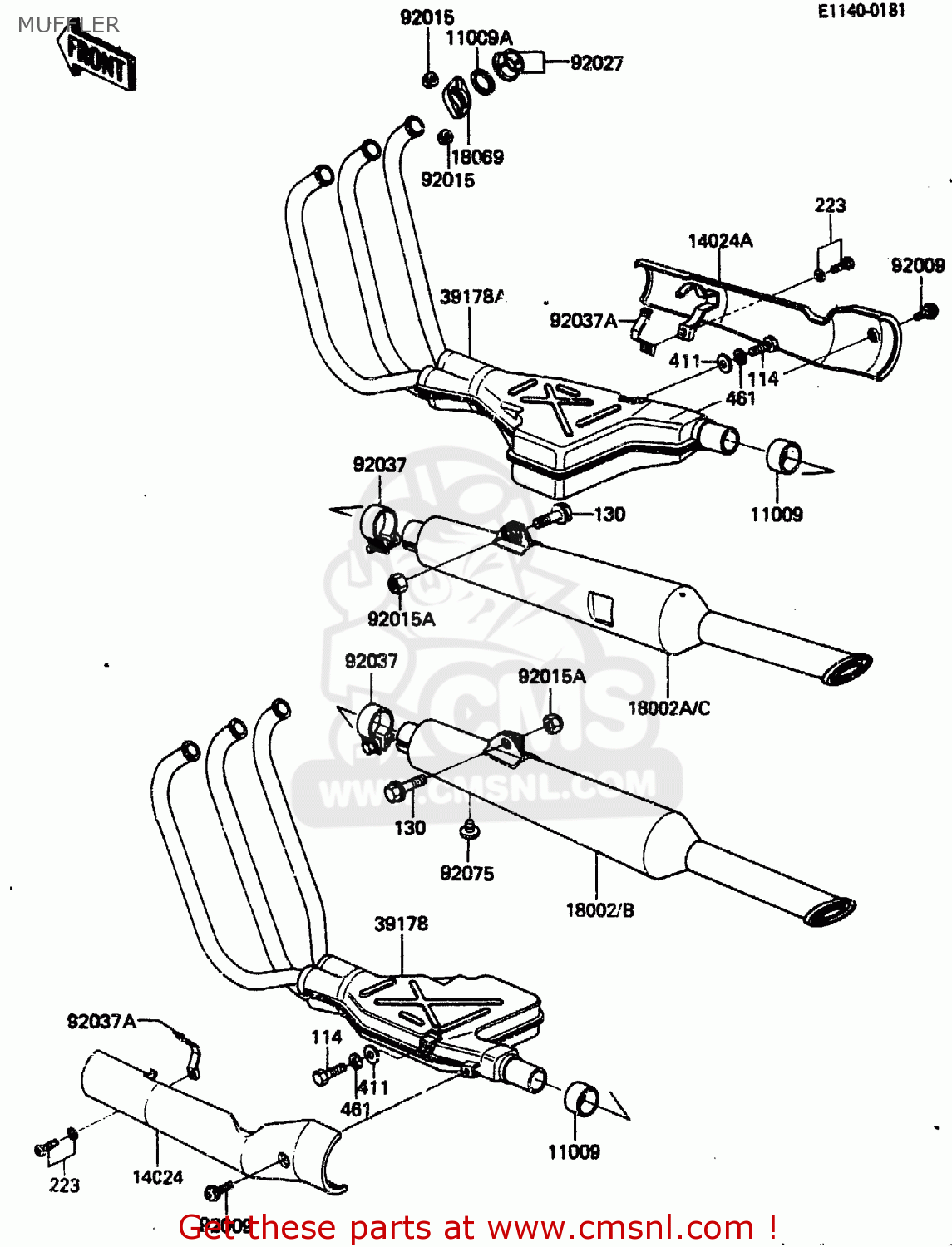

MUFFLER

ref

part #

description

quantity

11009

110091104
ref: 11009

GASKET,MUFFLER (MCA)

€ 20.50

11009A

18067004
ref: 11009A

GASKET-EXHAUST PIPE (MCA)

€ 7.50

14024

140251824
ref: 14024

COVER,MUFFLER,LH

€ 36.00

14024A

140251825
ref: 14024A

COVER,MUFFLER,RH

€ 27.50

18002

180021334
ref: 18002

BODY-COMP-MUFFLER,LH

€ 338.00

18002A

180021335
ref: 18002A

BODY-COMP-MUFFLER,RH

€ 338.00

18069

180691010
ref: 18069

HOLDER-EXHAUST PIPE

€ 12.50

39178

391781022
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 538.50

39178A

391781023
ref: 39178A

MANIFOLD-COMP-EXHAUST

€ 512.50

92009

920091098
ref: 92009

SCREW,6X10

€ 2.00

92015

920151365
ref: 92015

NUT,6MM

€ 3.00

92015A

92019021
ref: 92015A

NUT,LOCK,10M/M

€ 2.00

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92037

920371228
ref: 92037

CLAMP,POWER CHAMBER

€ 11.50

92037A

920371465
ref: 92037A

CLAMP,MUFFLER COVER

€ 5.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

114

114N0825
ref: 114

BOLT-SMALL,8X25

€ 2.50

130

130J1030
ref: 130

BOLT-FLANGED,10X30

€ 3.50

223

223X0630
ref: 223

SCREW-PAN-WS-CROS

€ 1.50

411

411D0800
ref: 411

WASHER,PLAIN,8MM

€ 2.00

461

461S0800
ref: 461

WASHER,SPRING,8M/M

€ 0.50

all assemblies
