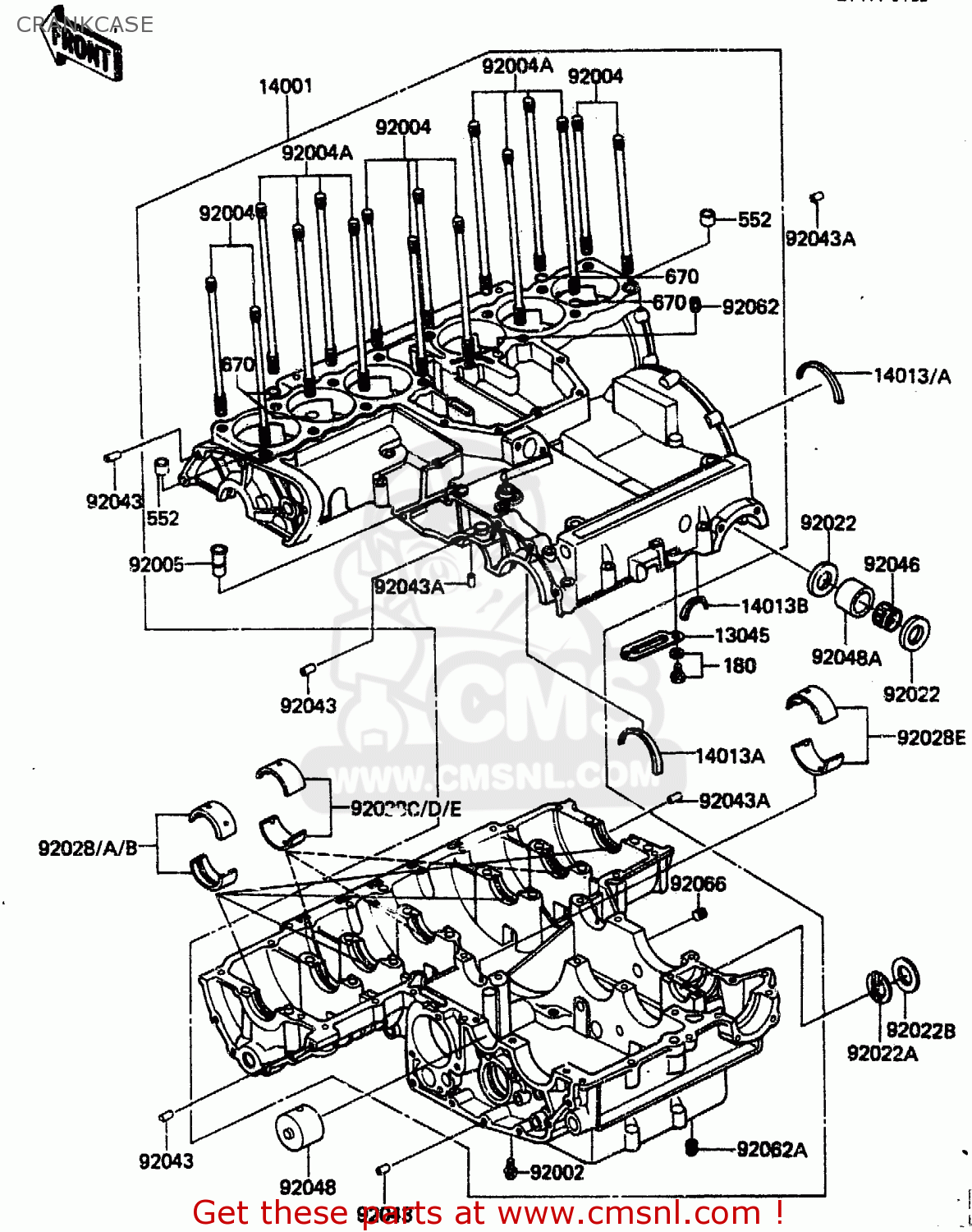

CRANKCASE

ref

part #

description

quantity

13045

130451002
ref: 13045

RECEIVER-OIL

€ 2.50

14001

140015153
ref: 14001

SET-CRANKCASE

€ 1,824.00

14013

14013013
ref: 14013

RING-POSITION,T=1.90

€ 7.50

14013A

140131004
ref: 14013A

RING-POSITION,CRANK

€ 3.00

14013B

140131007
ref: 14013B

RING-POSITION

€ 2.00

92002

920021077
ref: 92002

BOLT,8X95

€ 7.50

92004

92004062
ref: 92004

STUD, 10X153

€ 13.50

92004A

920041019
ref: 92004A

STUD,10X195

€ 9.00

92005

14067006
ref: 92005

BREATHER JOINT

€ 14.00

92022

920221280
ref: 92022

WASHER,THRUST,20.5MM

€ 2.50

92022A

920221388
ref: 92022A

WASHER,T=2.2

€ 11.50

92022B

920221389
ref: 92022B

WASHER,15X28X2.3

€ 2.50

92028

920281103
ref: 92028

BUSHING,MAIN JOURNAL,

€ 9.50

92028A

920281104
ref: 92028A

BUSHING,MAIN JOURNAL,

€ 10.00

92028B

920281105
ref: 92028B

BUSHING,MAIN JOURNAL,

€ 9.50

92028C

920281106
ref: 92028C

BUSHING,MAIN JOURNAL,

€ 9.50

92028D

920281107
ref: 92028D

BUSHING,MAIN JOURNAL,

€ 9.50

92028E

920281108
ref: 92028E

BUSHING,MAIN JOURNAL,

€ 9.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

92042016
ref: 92043A

PIN,DOWEL,6X16

€ 3.50

92046

920461042
ref: 92046

BEARING-NEEDLE,TK2028

€ 29.00

92048

920481008
ref: 92048

RACE,DRIVE SHAFT,LH

€ 44.00

92048A

920481018
ref: 92048A

RACE

€ 23.00

92062

92062011
ref: 92062

NOZZLE,OIL

€ 5.50

92062A

92062015
ref: 92062A

NOZZLE

€ 4.00

92066

92066059
ref: 92066

PLUG,PT1/8X7

€ 3.00

180

180B0616
ref: 180

BOLT-UPSET-WS

€ 0.50

552

552B1012
ref: 552

PIN,DOWEL,6.5X10X12

€ 1.00

670

670B2012
ref: 670

O RING,12MM

€ 1.00

all assemblies
