IGNITION COIL
ZN1300A3 1985 USA CALIFORNIA CANADA

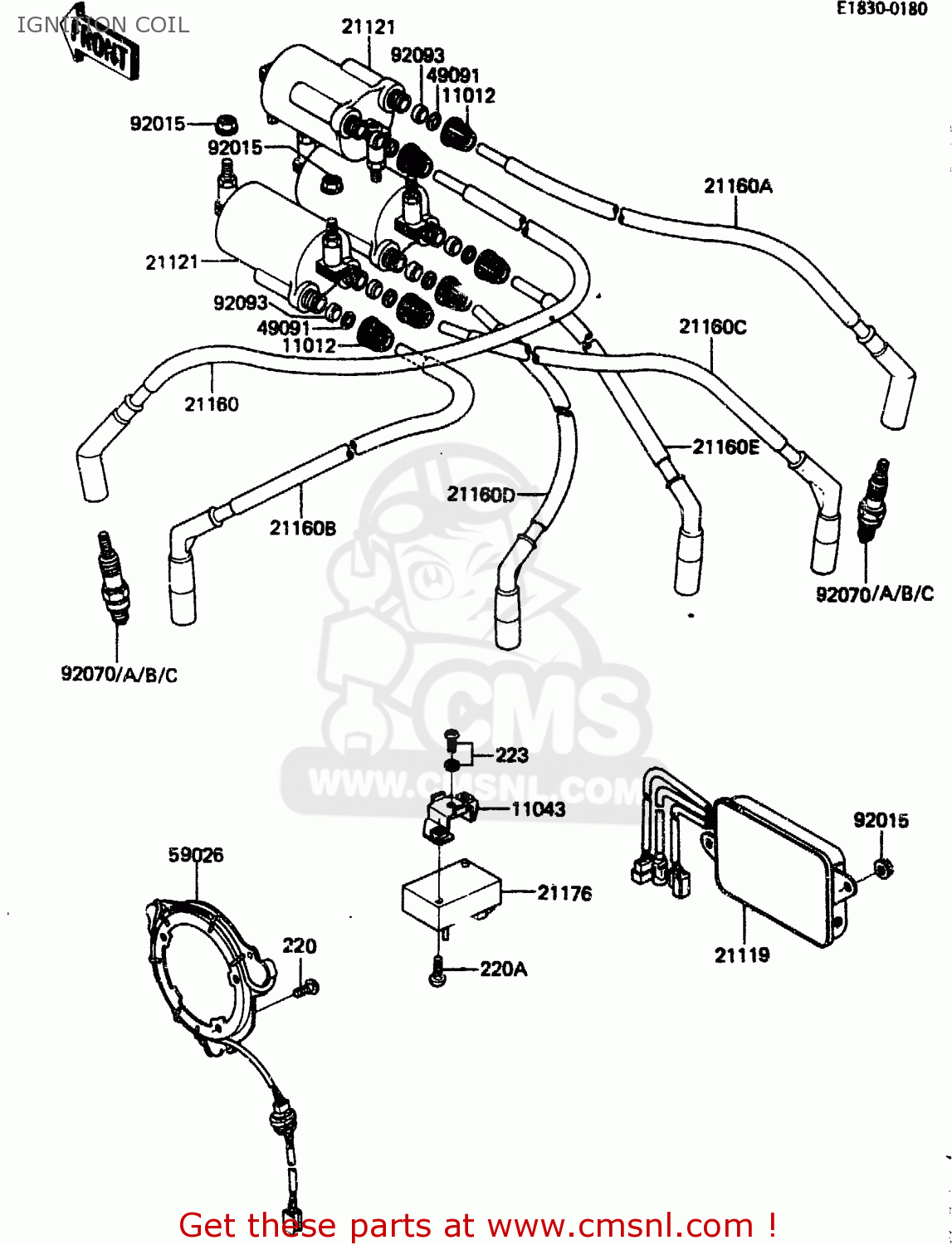

Ignition coil diagram ZN1300A3 1985 USA CALIFORNIA CANADA
IGNITION COIL ZN1300A3 1985 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121376
ref: 11012
CAP,IGNITION COIL
€ 3.00
11043
110431338
ref: 11043
BRACKET-B,SENSOR
€ 7.50
21119
211191073
ref: 21119
IGNITER
€ 877.50
21121
211211112
ref: 21121
COIL-IGNITION
€ 133.00
21160
211601055
ref: 21160
CAP-ASSY-PLUG,#1
€ 23.00
21160A
211601056
ref: 21160A
CAP-ASSY-PLUG,#6
€ 30.50
21160B
211601057
ref: 21160B
CAP-ASSY-PLUG,#2
€ 36.00
21160C
211601058
ref: 21160C
CAP-ASSY-PLUG,#5
€ 32.50
21160D
211601059
ref: 21160D
CAP-ASSY-PLUG,#3
€ 36.00
21160E
211601060
ref: 21160E
CAP-ASSY-PLUG,#4
€ 36.00
21176
211761006
ref: 21176
SENSOR,VACUUM
€ 711.00
49091
490911051
ref: 49091
WASHER-SEAL
€ 2.00
59026
590261027
ref: 59026
COIL-PULSING
€ 283.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92070
920701025
ref: 92070
BPR6ES (NGK SPARKPLUG
€ 3.50
92070A
920701027
ref: 92070A
BPR7ES (NGK SPARKPLUG
€ 3.50
92070B
ref: 92070B
(LOCAL PROCUREMENT I
92070C
ref: 92070C
(LOCAL PROCUREMENT I
92093
920931156
ref: 92093
SEAL
€ 3.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220C0630
ref: 220A
SCREW-PAN-CROS,6X30,B
€ 1.50
223
223B0612
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
