IGNITION SWITCH/LOCKS/REFLECTORS

ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD

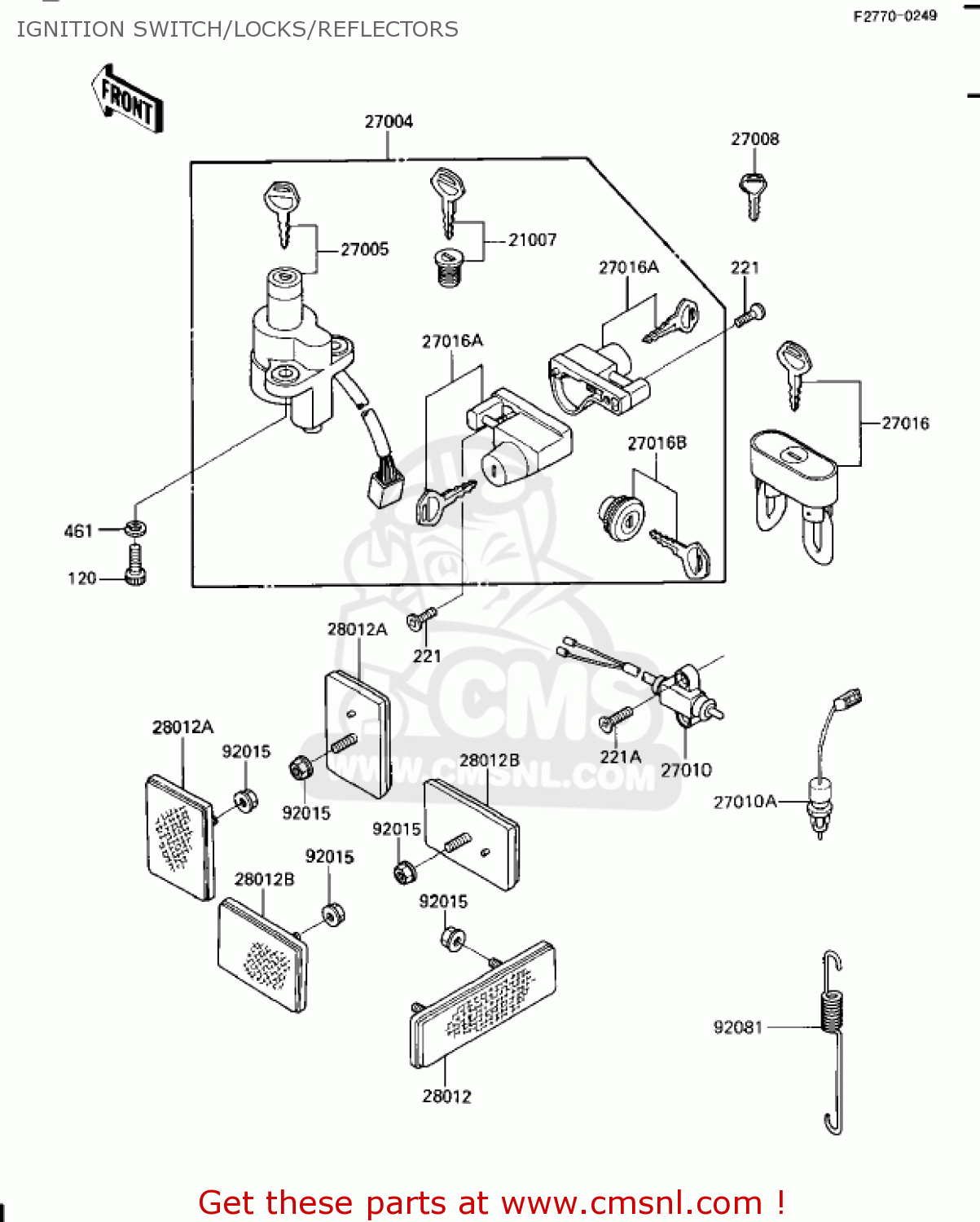

Ignition switch/locks/reflectors diagram ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD

prices are in EUR

ref

part #

description

quantity

21007

210075005
ref: 21007

ROTOR,FUEL TANK

€ 71.00

27004

270045243
ref: 27004

SWITCH-ASSY

€ 214.00

27005

270055040
ref: 27005

SWITCH ASSY IGNITION

€ 174.50

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101152
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101164
ref: 27010A

SWITCH,SIDE STAND

€ 47.00

27016

270161051
ref: 27016

LOCK-ASSY,WHEEL

€ 104.50

27016A

270165060
ref: 27016A

LOCK-ASSY,HELMET

€ 71.50

27016B

270165081
ref: 27016B

LOCK-ASSY,BOX

€ 88.50

28012

280121005
ref: 28012

REFLECTOR-REFLEX,RR

€ 16.50

28012A

280121009
ref: 28012A

REFLECTOR-REFLEX,FR

€ 16.00

28012B

280121051
ref: 28012B

REFLECTOR-REFLEX,RR

€ 15.50

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92081

920811146
ref: 92081

SPRING,BRAKE LAMP SWI

€ 3.00

120

120P0822
ref: 120

BOLT,SOCKET,8X22

€ 3.50

221

221C0512
ref: 221

SCREW-CSK-CROS

€ 0.50

221A

221C0520
ref: 221A

SCREW-CSK-CROS

€ 2.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50
