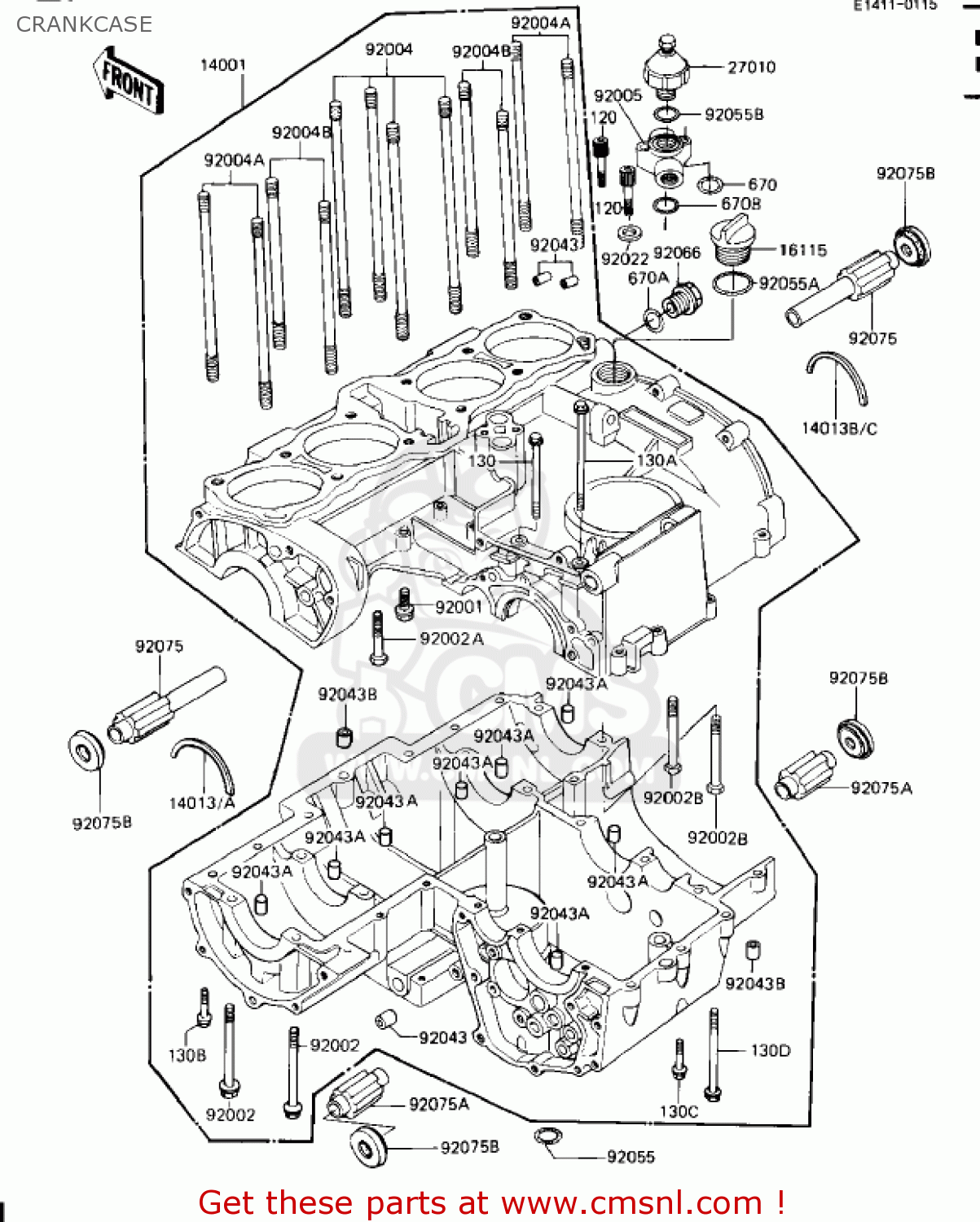

CRANKCASE

ref

part #

description

quantity

14001

140015099
ref: 14001

SET-CRANKCASE,SILVER

€ 2,315.50

14013

14013013
ref: 14013

RING-POSITION,T=1.90

€ 7.50

14013A

140131004
ref: 14013A

RING-POSITION,CRANK

€ 3.00

14013B

140131005
ref: 14013B

RING-POSITION

€ 3.00

14013C

140131006
ref: 14013C

RING-POSITION,T=1.90

€ 3.50

16115

16115013
ref: 16115

PLUG-OIL FILLER

€ 13.50

27010

270101013
ref: 27010

SWITCH,OIL PRESSURE

€ 28.50

92001

920011349
ref: 92001

BOLT,FLANGED,8X16

€ 3.50

92002

920021077
ref: 92002

BOLT,8X95

€ 7.50

92002A

920021329
ref: 92002A

BOLT,8X72

€ 6.50

92022B

920021330
ref: 92022B

BOLT,8X80

€ 4.50

92004

920041002
ref: 92004

STUD, 10X167

€ 10.50

92004A

920041003
ref: 92004A

STUD, 10X158

€ 10.50

92004B

920041004
ref: 92004B

STUD, 10X133

€ 11.50

92005

920051030
ref: 92005

FITTING,OIL PRESSURE

€ 45.50

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92043A

92042016
ref: 92043A

PIN,DOWEL,6X16

€ 3.50

92043B

920431037
ref: 92043B

PIN,DOWEL,10X8.2X14

€ 0.50

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92055A

92055049
ref: 92055A

'0'RING,31MM

€ 2.50

92055B

92055055
ref: 92055B

'0'RING

€ 2.50

92066

92066021
ref: 92066

PLUG,14X12

€ 15.00

92075

920751272
ref: 92075

DAMPER,ENGINE MOUNT,U

€ 32.50

92075A

920751273
ref: 92075A

DAMPER,ENGINE MOUNT,L

€ 19.00

92075B

920751274
ref: 92075B

DAMPER,ENG MOUNT,SIDE

€ 11.00

120

120Z0835
ref: 120

BOLT-SOCKET

€ 2.50

130

130Y06100
ref: 130

BOLT-FLANGED

€ 4.50

130A

130Y06115
ref: 130A

BOLT-FLANGED

€ 3.50

130B

130Y0640
ref: 130B

BOLT-FLANGED

€ 3.00

130C

130Y0655
ref: 130C

BOLT-FLANGED

€ 3.00

130D

130Y0695
ref: 130D

BOLT-FLANGED

€ 3.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00

670A

670B2015
ref: 670A

O RING,15MM

€ 1.00

670B

670B2018
ref: 670B

O RING,18MM

€ 1.00
