FRONT FORK

ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD

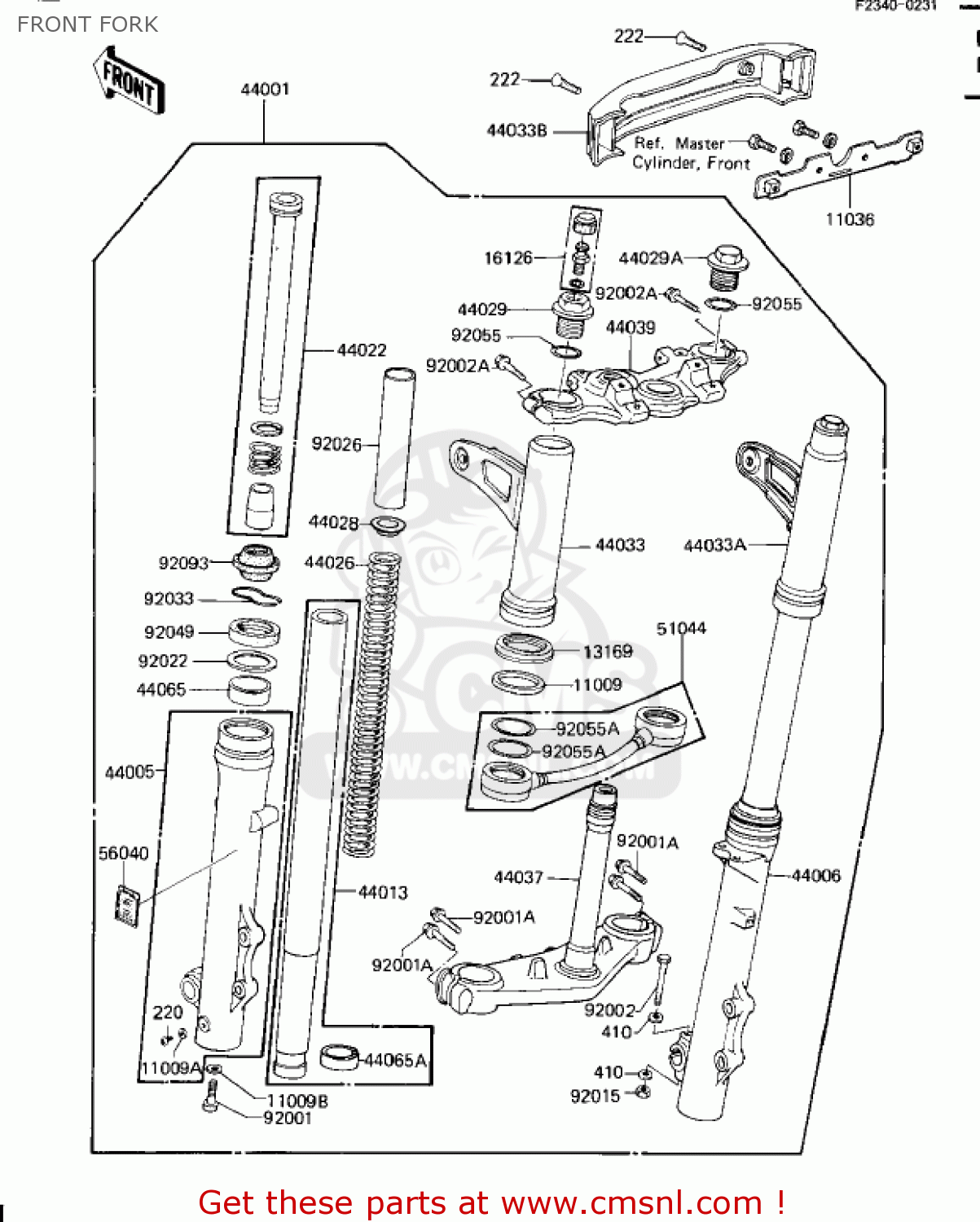

Front fork diagram ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD

FRONT FORK ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD
FRONT FORK ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD
FRONT FORK ZN1100B1 SHAFT 1984 USA CALIFORNIA CANADA / LTD
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
110091015
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
44045057
€ 3.00
11036
110361320
ref: 11036
BRACKET-A,FORK COVER
110361320
€ 19.00
13169
131691499
ref: 13169
PLATE,FORK COVER,LWR
131691499
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 22.00
44001
440011535
ref: 44001
FORK-FRONT
€ 1,083.50
44005
440051218
ref: 44005
FORK OUTER PIPE,LH
€ 215.50
44006
440061218
ref: 44006
FORK OUTER PIPE,RH
€ 228.50
44013
440131220
ref: 44013
PIPE-FORK-INNER
€ 177.00
44022
440221168
ref: 44022
FORK CYLINDER
€ 90.50
44026
440261278
ref: 44026
FRONT FORK SPRING
€ 45.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
440281004
€ 7.50
44029
440291044
ref: 44029
SEAT-FORK SPRING,LH
440291044
€ 33.00
44029A
440291045
ref: 44029A
SEAT-FORK SPRING,RH
€ 32.50
44033
440331153
ref: 44033
FORK COVER,LH
€ 77.50
44033A
440331154
ref: 44033A
FORK COVER,RH
€ 67.00
44033B
440331157
ref: 44033B
FORK COVER,KAWASAKI
€ 20.00
44037
440371109
ref: 44037
HOLDER-FORK UNDER
€ 281.00
44039
440391105
ref: 44039
FORK HOLDER,UPPER
€ 145.00
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
440651091
€ 17.00
44065A
920281126
ref: 44065A
BUSHING-FRONT FORK,IN
920281126
€ 31.50
51044
510441060
ref: 51044
TUBE ASSEMBLY
€ 91.00
56040
560401110
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
44041040
€ 4.50
92001A
920011188
ref: 92001A
BOLT,8X40
920011188
€ 5.50
92002
920021160
ref: 92002
BOLT,8X55
€ 6.00
92002A
920021288
ref: 92002A
BOLT,FLANGED,8X45
€ 3.50
92015
920151390
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
920221262
€ 5.50
92026
920261234
ref: 92026
SPACER
€ 7.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 4.00
92049
920491178
ref: 92049
SEAL-OIL,FORK
920491178
€ 18.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
920551051
€ 3.50
92055A
920551369
ref: 92055A
RING-O,ROD
920551369
€ 6.50
92093
920931162
ref: 92093
SEAL,FORK
920931162
€ 18.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
220E0408
€ 2.50
222
222C0518
ref: 222
SCREW-CSK-RD-CROS
222C0518
€ 2.50
410
410D0800
ref: 410
WASHER-PLAIN,8MM
410D0800
€ 2.00
