RADIATOR

ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

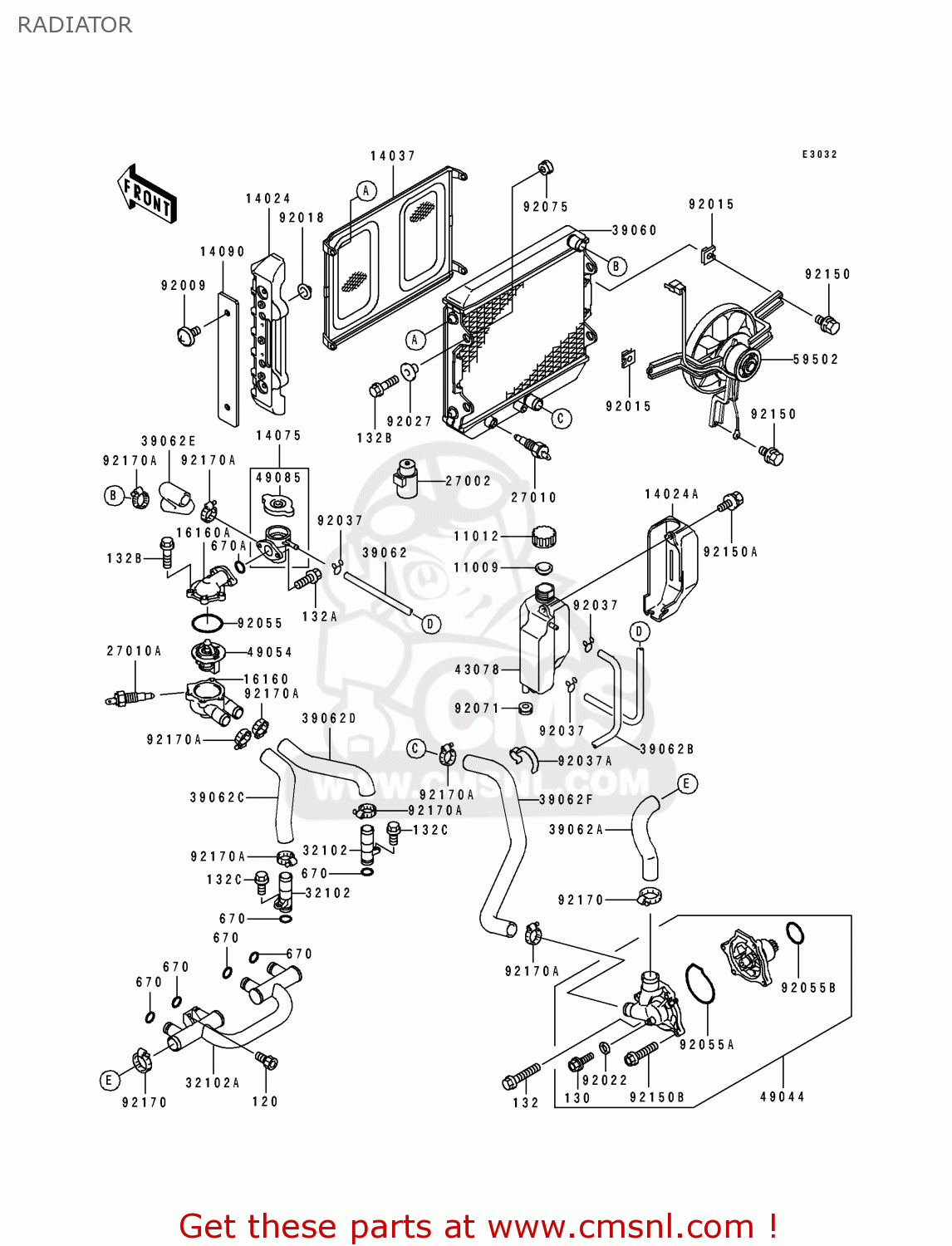

Radiator diagram ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

RADIATOR ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
RADIATOR ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
RADIATOR ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241221
ref: 14024
COVER,RADIATOR
140241221
€ 38.50
14024A
140241222
ref: 14024A
COVER,RESERVOIR
€ 16.50
14037
140371080
ref: 14037
SCREEN
€ 52.50
14075
140751085
ref: 14075
CAP-ASSY,RADIATOR
140751085
€ 120.00
14090
140901613
ref: 14090
COVER,RADIATOR
€ 81.00
16160
161601112
ref: 16160
BODY,THERMOSTAT,LWR
161601112
€ 53.50
16160A
161601113
ref: 16160A
BODY,THERMOSTAT,UPP
161601113
€ 43.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
27010A
270101239
ref: 27010A
SWITCH,SENSOR WATER
270101239
€ 104.50
32102
321021043
ref: 32102
PIPE
321021043
€ 23.50
32102A
321021893
ref: 32102A
PIPE
€ 99.00
39060
390601070
ref: 39060
RADIATOR
€ 585.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621111
ref: 39062A
HOSE-COOLING,PUMP-CYL
390621111
€ 21.00
39062B
390621125
ref: 39062B
HOSE-COOLING
€ 17.50
39062C
390621178
ref: 39062C
HOSE-COOLING,HEAD-THE
390621178
€ 17.50
39062D
390621179
ref: 39062D
HOSE-COOLING,HEAD-THE
€ 17.00
39062E
390621180
ref: 39062E
HOSE-COOLING,CAP-RADI
390621180
€ 13.50
39062F
390621181
ref: 39062F
HOSE-COOLING,RADIATOR
390621181
€ 31.50
43078
430781072
ref: 43078
RESERVOIR
430781072
€ 42.00
49044
490441077
ref: 49044
PUMP-WATER
€ 314.50
49054
490541055
ref: 49054
THERMOSTAT
490541055
€ 39.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
59502
595021075
ref: 59502
FAN-ASSY
595021075
€ 442.50
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92018
92018005
ref: 92018
NUT,PUSH,3MM
92018005
€ 2.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92027
92027194
ref: 92027
COLLAR
92027194
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371552
ref: 92037A
CLAMP
920371552
€ 6.50
92055
920551279
ref: 92055
RING-O,45MM
920551279
€ 4.50
92055A
920551315
ref: 92055A
RING-O,WATER PUMP
920551315
€ 8.00
92055B
920551424
ref: 92055B
RING-O,33.2X2.4
920551424
€ 4.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
920711115
€ 3.50
92075
92075277
ref: 92075
DAMPER
92075277
€ 1.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
132
132E0645
ref: 132
BOLT-FLANGED-SMALL
132E0645
€ 3.00
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132B
132G0620
ref: 132B
BOLT-FLANGED-SMALL
132G0620
€ 1.50
132C
132J0612
ref: 132C
BOLT-FLANGED-SMALL
132J0612
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
670B2020
€ 1.00
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92150B
921501379
ref: 92150B
BOLT
921501379
€ 3.00
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
92170A
921701285
ref: 92170A
CLAMP,COOLING HOSE
921701285
€ 13.00
