OIL PAN

ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

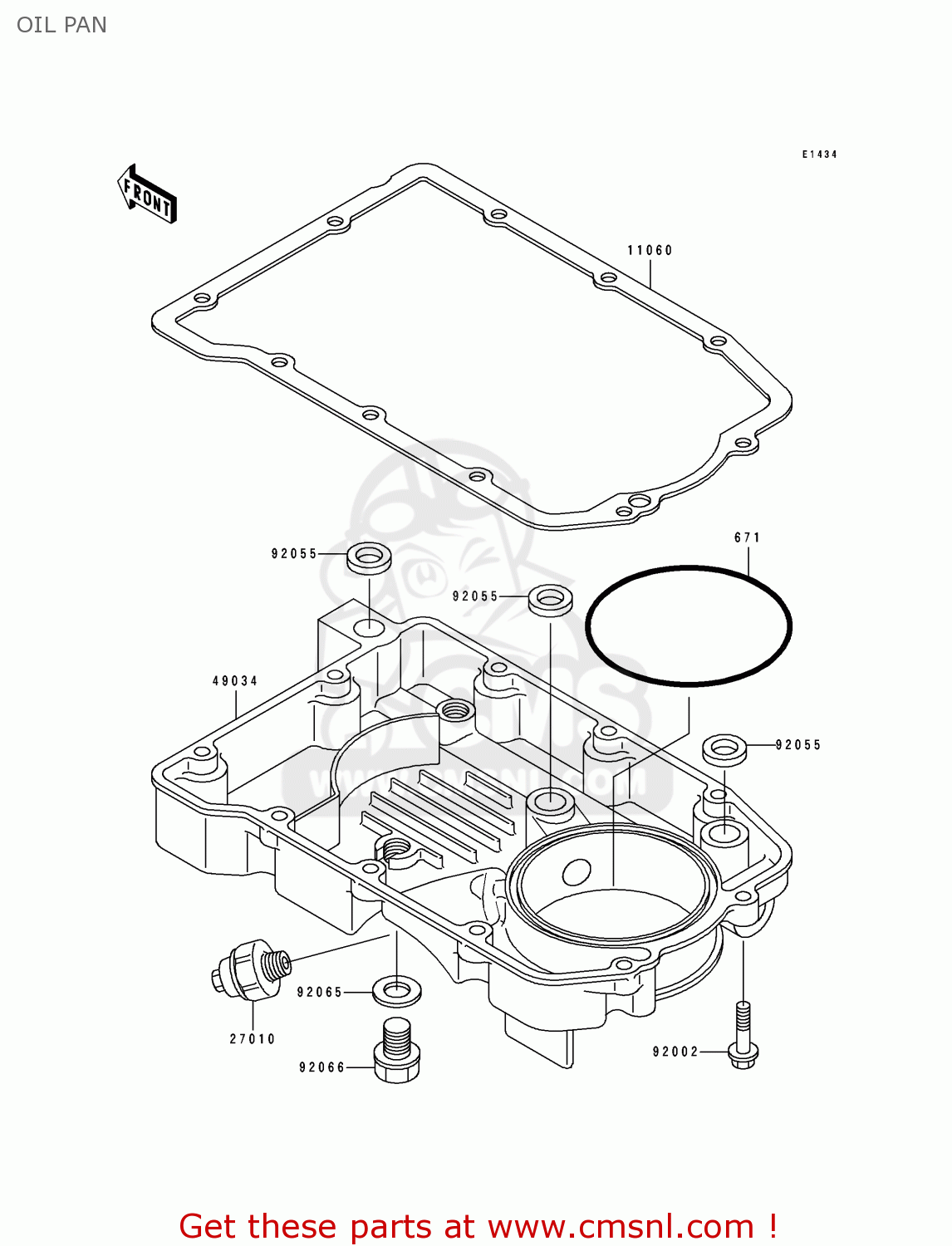

Oil pan diagram ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

OIL PAN ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

OIL PAN ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

671

671B2590
ref: 671

O RING,90MM

€ 6.50

11060

110601149
ref: 11060

GASKET,OIL PAN (NAS)

€ 19.00

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

49034

490341114
ref: 49034

PAN-OIL

€ 132.00

92002

920021089
ref: 92002

BOLT,6X25

€ 2.00

92055

92055077
ref: 92055

O RING

€ 4.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
