Genuine ZL Kawasaki Parts delivered quickly!


HEADLIGHT(S)

ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

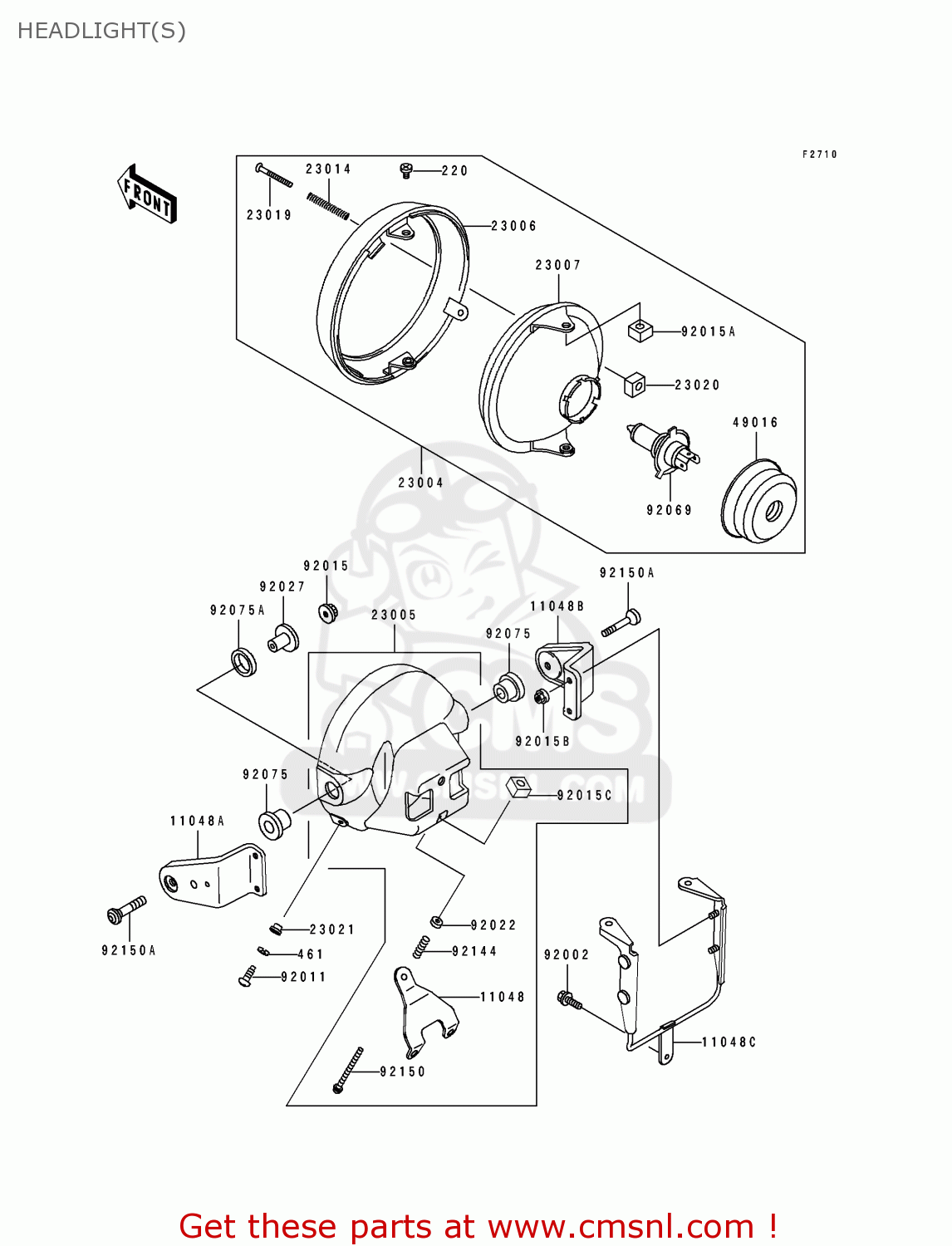

Headlight(s) diagram ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA

HEADLIGHT(S) ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
HEADLIGHT(S) ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
HEADLIGHT(S) ZL600B2 ELIMINATOR 600 1996 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
220
220D0510
ref: 220
SCREW-PAN-CROS
220D0510
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
11048
110481406
ref: 11048
BRACKET,HEAD LAMP BOD
110481406
€ 6.00
11048A
110481407
ref: 11048A
BRACKET,HEAD LAMP,LH
110481407
€ 31.50
11048B
110481408
ref: 11048B
BRACKET,HEAD LAMP,RH
110481408
€ 42.50
11048C
110481409
ref: 11048C
BRACKET,HEAD LAMP
110481409
€ 48.50
23004
230041275
ref: 23004
HEADLAMP
€ 270.00
23005
230051144
ref: 23005
BODY-COMP-HEAD LAMP
€ 92.00
23006
230061020
ref: 23006
RIM-LAMP,CR PLATED
230061020
€ 34.50
23007
230071224
ref: 23007
LENS-COMP,HEAD LAMP
€ 115.00
23014
23014005
ref: 23014
SPRING-FOCUS ADJUST
23014005
€ 2.50
23019
23019021
ref: 23019
SCREW-FORCUS ADJUST
23019021
€ 3.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
490161046
€ 7.50
92002
920021626
ref: 92002
BOLT
920021626
€ 3.00
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
92011024
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
920151014
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
920151157
€ 3.50
92015B
920151170
ref: 92015B
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015C
920151799
ref: 92015C
NUT,5MM,FOCUS ADJUST
920151799
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
920221380
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
920271131
€ 6.00
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
920751109
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
920751110
€ 3.00
92144
921441417
ref: 92144
SPRING
921441417
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
921501590
€ 4.50
92150A
921501735
ref: 92150A
BOLT
921501735
€ 8.00
