TRANSMISSION

ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

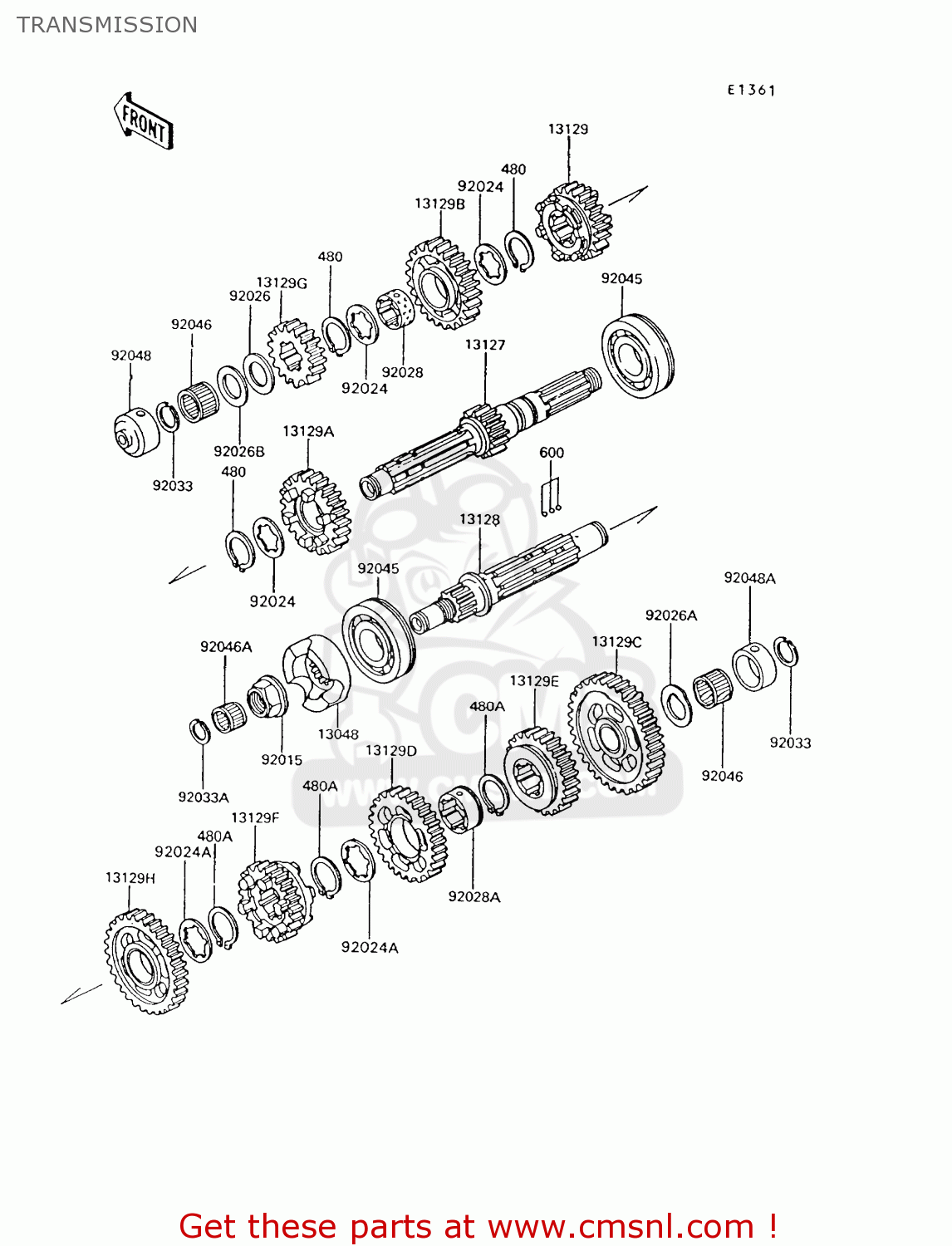

Transmission diagram ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

TRANSMISSION ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
TRANSMISSION ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
TRANSMISSION ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
480J2800
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13048
130481066
ref: 13048
DAMPER CAM
€ 59.00
13127
131271133
ref: 13127
TRANSMISSION SHAFT,INPUT
€ 198.00
13128
131281130
ref: 13128
TRANSMISSION SHAFT,OUTPUT
€ 136.00
13129
131291765
ref: 13129
GEAR,INPUT,3RD,24T
€ 145.50
13129A
131291766
ref: 13129A
GEAR,INPUT,4TH,28T
€ 132.00
13129B
131291767
ref: 13129B
GEAR,INPUT,TOP,31T
€ 143.00
13129C
131291768
ref: 13129C
GEAR,OUTPUT,LOW,41T
€ 143.00
13129D
131291770
ref: 13129D
GEAR, OUTPUT 3RD, 32T
€ 230.50
13129E
131291771
ref: 13129E
GEAR,OUTPUT,4TH,29T
€ 152.50
13129F
131291772
ref: 13129F
GEAR,OUTPUT,TOP,26T
€ 143.00
13129G
131291836
ref: 13129G
TRANSMISSION SPUR GEAR
€ 104.50
13129H
131291837
ref: 13129H
TRANSMISSION SPUR GEAR
€ 169.00
92015
920151543
ref: 92015
NUT
920151543
€ 12.00
92024
92024042
ref: 92024
WASHER,TOOTHED,26X35.
92024042
€ 7.50
92024A
92024043
ref: 92024A
WASHER,TOOTHED,30.3X4
92024043
€ 8.00
92026
920261020
ref: 92026
SPACER,22X35.5X1.0
920261020
€ 3.50
92026A
920261225
ref: 92026A
SPACER,22X35.5X2.4
920261225
€ 6.50
92026B
920261226
ref: 92026B
SPACER,22X35.5X1.8
920261226
€ 6.50
92028
920281124
ref: 92028
BUSHING,TOP GEAR
920281124
€ 31.00
92028A
920281403
ref: 92028A
BUSHING
€ 29.50
92033
92033025
ref: 92033
CIRCLIP,25MM
92033025
€ 3.00
92033A
920331208
ref: 92033A
RING-SNAP
920331208
€ 3.50
92045
920451197
ref: 92045
BEARING-BALL
€ 50.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
92046031
€ 19.50
92046A
920461154
ref: 92046A
BEARING-NEEDLE,K18242
920461154
€ 20.50
92048
920481052
ref: 92048
RACE,INPUT SHAFT
920481052
€ 59.50
92048A
920481053
ref: 92048A
RACE,30X38X15
920481053
€ 27.50
