ACCESSORY(SIDE BAG)(ZG1200-B8/B9)

ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

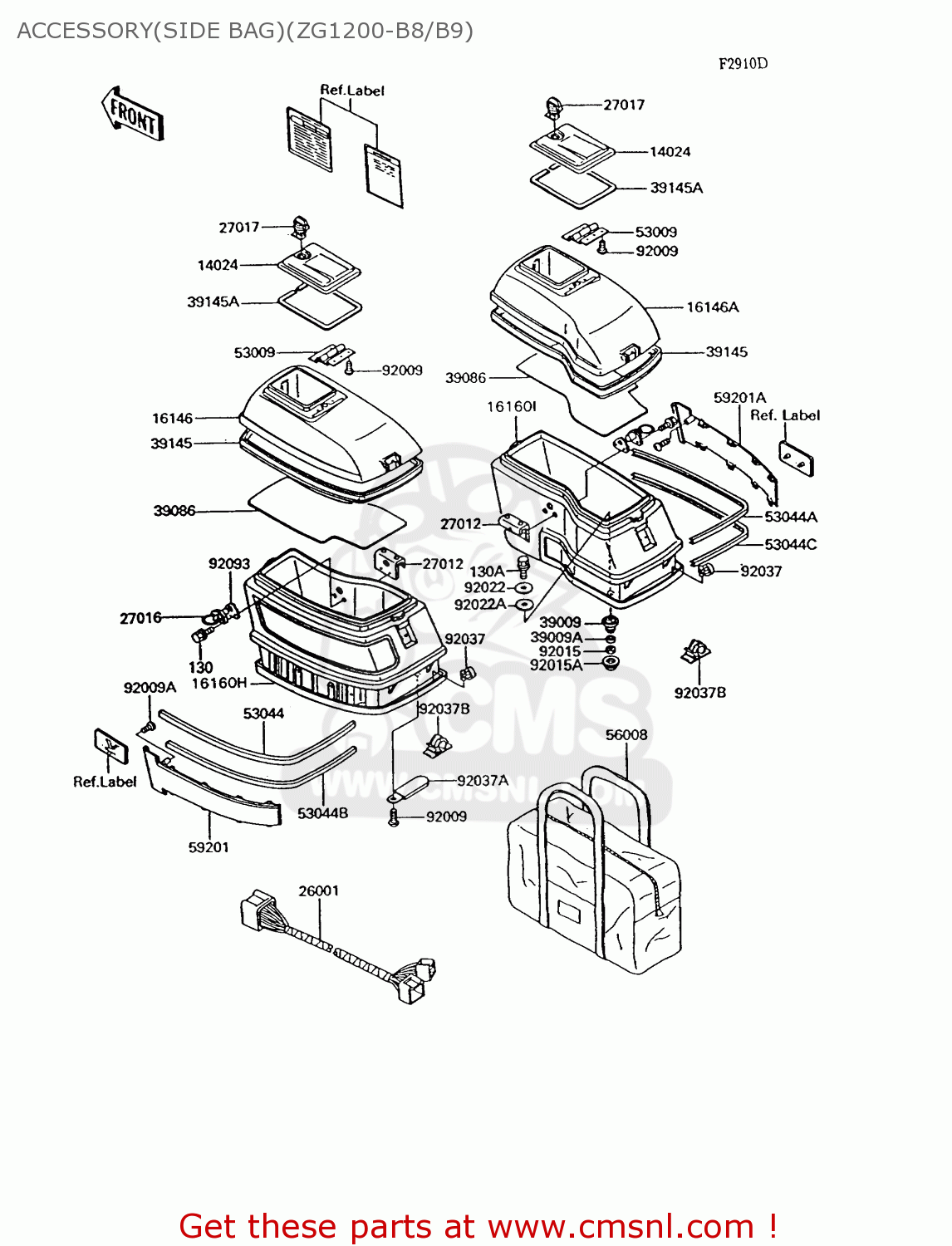

Accessory(side bag)(zg1200-b8/b9) diagram ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

ACCESSORY(SIDE BAG)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
ACCESSORY(SIDE BAG)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
ACCESSORY(SIDE BAG)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14024
140241178
ref: 14024
COVER,SIDE BAG
140241178
€ 23.00
16146
161461063SM
ref: 16146
SADDLE BAG COVER ASSEMBLY,LH,PEACOCK TEAL GREEN
€ 321.50
16146A
161461064SM
ref: 16146A
SADDLE BAG COVER ASSEMBLY,RH,PEACOCK TEAL GREEN
€ 306.50
16160H
161605023SV
ref: 16160H
SADDLE BAG BODY,LH,GREEN
€ 862.50
16160I
161605024SV
ref: 16160I
SADDLE BAG BODY,RH,GREEN
€ 862.50
26001
260011757
ref: 26001
SADDLE BAG HARNESS
€ 12.50
27012
270121339
ref: 27012
SADDLE BAG HOOK
€ 16.00
27016
270161054
ref: 27016
BAG LOCK ASSEMBLY
€ 42.00
27017
270171126
ref: 27017
LOCK,BAG
270171126
€ 33.00
39009
390091051
ref: 39009
BLOCKED-MOUNT,BAG
€ 13.50
39009A
390091052
ref: 39009A
BAG MOUNT BLOCK
€ 2.50
39086
390861052
ref: 39086
PAD-STORAGE,BAG
€ 125.00
39145
391451068
ref: 39145
TRIM-SEAL,SIDE BAG
391451068
€ 36.50
39145A
391451071
ref: 39145A
TRIM-SEAL,SIDE BAG
391451071
€ 6.00
53009
530091062
ref: 53009
HINGE,SIDE BAG
530091062
€ 21.50
53044
530441143
ref: 53044
TRIM,SIDE BAG,UPP,LH
530441143
€ 35.00
53044A
530441144
ref: 53044A
TRIM,SIDE BAG,UPP,RH
€ 35.00
53044B
530441145
ref: 53044B
TRIM,S.BAG,LH
€ 36.00
53044C
530441146
ref: 53044C
TRIM,SIDE BAG,LWR,RH
€ 35.00
56008
560081055
ref: 56008
BAG
€ 283.00
59201
592011051
ref: 59201
BUMPER,LH
592011051
€ 71.50
59201A
592011052
ref: 59201A
BUMPER,RH
€ 71.50
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
920091040
€ 2.50
92009A
920091429
ref: 92009A
SCREW
€ 1.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015A
920151628
ref: 92015A
NUT
920151628
€ 3.50
92022
920221392
ref: 92022
WASHER,7X28X1.6,BLACK
920221392
€ 3.00
92022A
920221813
ref: 92022A
WASHER,5X28X1
€ 2.50
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92037A
920371726
ref: 92037A
CLAMP,HARNESS
920371726
€ 3.50
92037B
920371793
ref: 92037B
CLAMP,HARNESS
€ 4.00
92093
920931209
ref: 92093
LOCK SEAL
€ 3.00
130
130C0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130C0630
ref: 130A
BOLT-FLANGED
130C0630
€ 2.50
