ACCESSORY(TRUNK)(ZG1200-B8/B9)

ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

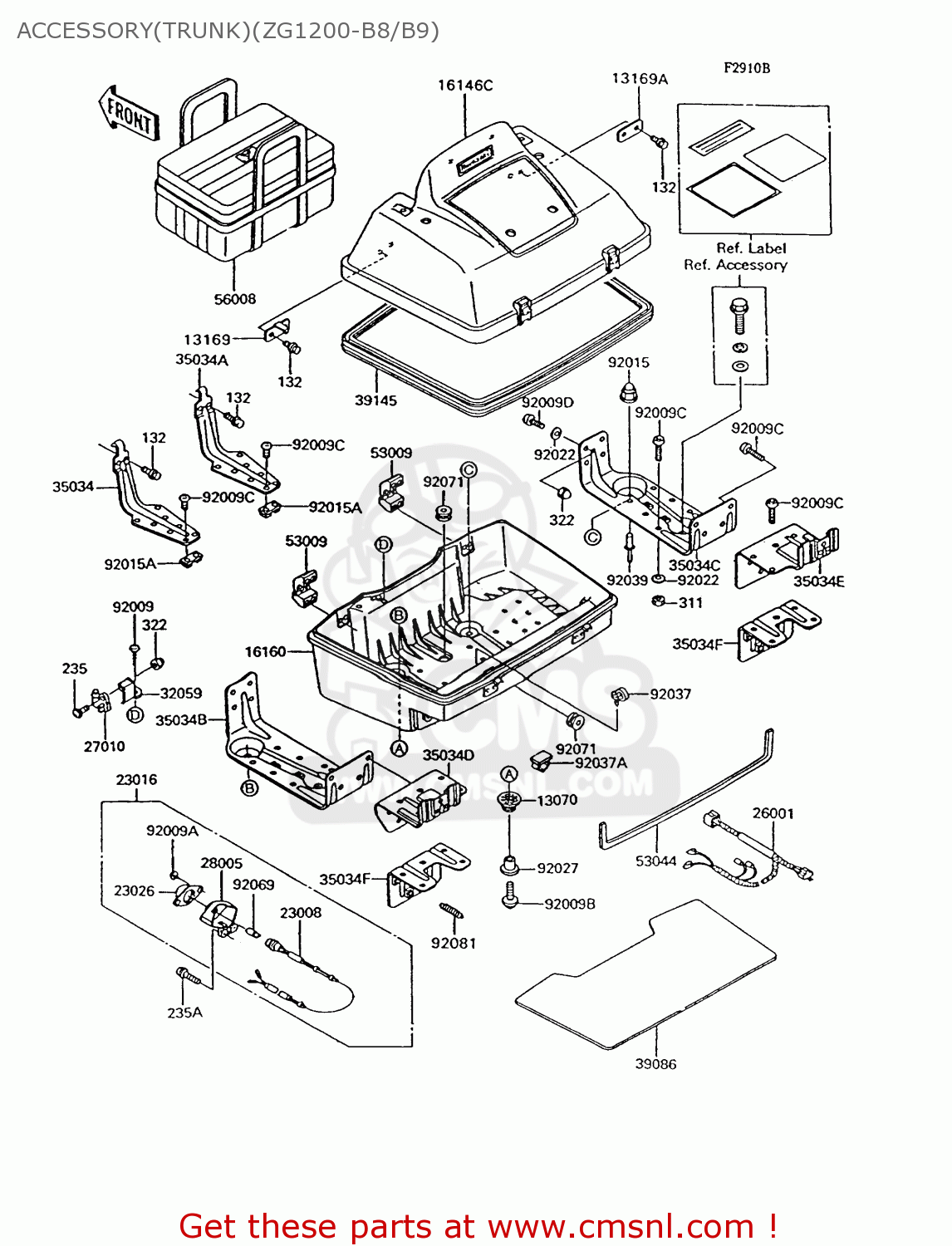

Accessory(trunk)(zg1200-b8/b9) diagram ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA

ACCESSORY(TRUNK)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
ACCESSORY(TRUNK)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
ACCESSORY(TRUNK)(ZG1200-B8/B9) ZG1200B9 VOYAGER XII 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13070
130701149
ref: 13070
GUIDE
130701149
€ 6.00
13169
131691635
ref: 13169
HINGE PLATE,LH
€ 4.50
13169A
131691636
ref: 13169A
HINGE PLATE,RH
€ 3.00
16146C
161465042SV
ref: 16146C
TRUNK COVER ASSEMBLY,GREEN
€ 779.50
16160
161601140SM
ref: 16160
TRUNK BODY,PEACOCK TEAL GREEN
€ 779.50
23008
230081295
ref: 23008
TRUNK HOOD SOCKET ASSEMBLY
€ 13.50
23016
230161066
ref: 23016
TRUNK ROOM LAMP ASSEMBLY
230161066
€ 40.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
26001
260011758
ref: 26001
TRUNK HARNESS
€ 19.50
27010
270101185
ref: 27010
SWITCH,BRAKE/SIDE STA
270101185
€ 25.50
28005
280051054
ref: 28005
TRUNK ROOM LAMP BODY
€ 7.00
32059
320591067
ref: 32059
SWITCH BRACKET
€ 4.50
35034
350341213
ref: 35034
HINGE REINFORCE,LH
€ 29.00
35034A
350341214
ref: 35034A
HINGE REINFORCE,RH
€ 29.00
35034B
350341215
ref: 35034B
REINFORCE,BAG,LH
€ 76.00
35034C
350341216
ref: 35034C
REINFORCE,BAG,RH
€ 76.00
35034D
350341217
ref: 35034D
REINFORCE
€ 31.50
35034E
350341218
ref: 35034E
REINFORCE
€ 31.50
35034F
350341219
ref: 35034F
REINFORCE
€ 28.50
39086
390861051
ref: 39086
PAD-STORAGE,TRUNK
€ 143.00
39145
391451087
ref: 39145
TRIM-SEAL, TRUNK
€ 51.00
53009
530091071
ref: 53009
HINGE, TRUNK
€ 47.00
53044
530441142
ref: 53044
TAIL LAMP TRIM
€ 6.00
56008
560081060
ref: 56008
BAG
€ 140.50
92009
920091332
ref: 92009
SCREW,TAPPING,5X10
920091332
€ 2.50
92009A
920091381
ref: 92009A
SCREW,TAPPING,4X12
920091381
€ 2.00
92009B
920091400
ref: 92009B
SCREW,6X22
920091400
€ 3.50
92009C
920091448
ref: 92009C
SCREW
€ 2.50
92009D
920091489
ref: 92009D
SCREW
€ 2.50
92015
920151262
ref: 92015
NUT,LOCK 6MM
920151262
€ 3.50
92015A
920151620
ref: 92015A
NUT
€ 4.50
92022
920221830
ref: 92022
WASHER
€ 2.00
92027
92027195
ref: 92027
COLLAR
92027195
€ 4.00
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92037A
920371793
ref: 92037A
CLAMP,HARNESS
€ 4.00
92039
920391150
ref: 92039
RIVET
€ 2.50
92069
920691066
ref: 92069
BULB,12V 3CP
€ 3.00
132
132J0512
ref: 132
BOLT-FLANGED-SMALL,5X
€ 2.00
235
235C0414
ref: 235
SCREW-PAN-WP-CROS
€ 2.00
235A
235C0430
ref: 235A
SCREW-PAN-WP-CROS
€ 2.50
311
311C0400
ref: 311
NUT-HEX
311C0400
€ 0.50
322
322C0400
ref: 322
NUT-CAP,4MM
€ 2.00
92071
920711136
ref: 92071
GROMMET
€ 4.50
92081
920811954
ref: 92081
HARNESS SPRING GUIDE
€ 8.00
