SWINGARM

ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

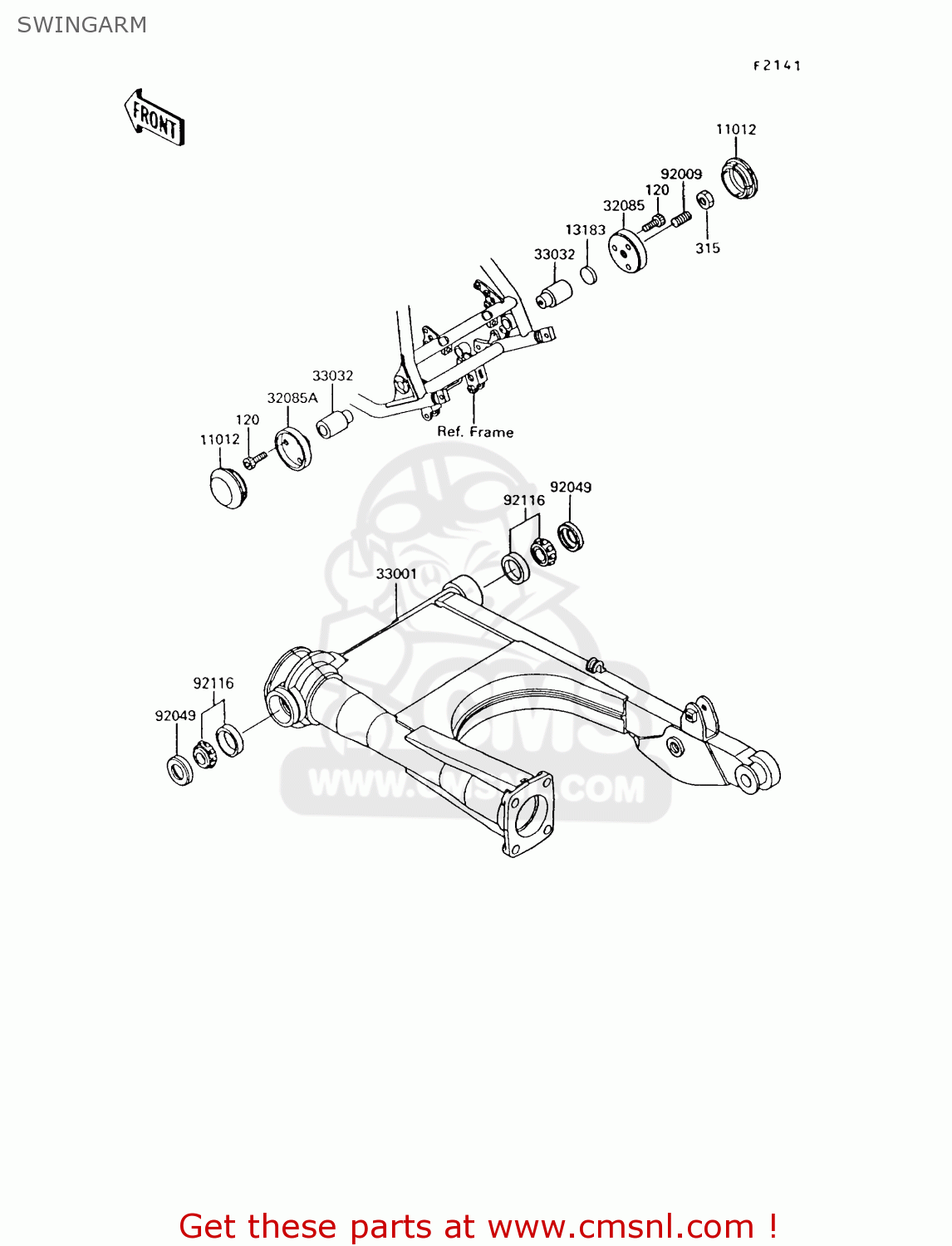

Swingarm diagram ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

SWINGARM ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

SWINGARM ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120S0612
ref: 120

BOLT-SOCKET

€ 1.50

315

315C1200
ref: 315

NUT-HEX-FINE

€ 3.00

11012

110121433
ref: 11012

CAP,SWING ARM

€ 15.00

13183

131831004
ref: 13183

PLATE,25X4.5

€ 4.00

32085

320851227
ref: 32085

SWING ARM SHAFT STOPPER

€ 31.00

32085A

320851228
ref: 32085A

SWING ARM SHAFT STOPPER

€ 31.00

33001

330011304
ref: 33001

ARM-COMP-SWING

€ 860.00

33032

330321120
ref: 33032

SHAFT-SWING ARM

€ 35.00

92009

920091374
ref: 92009

SCREW,SOCKET,12X22

€ 6.50

92049

920491030
ref: 92049

OIL SEAL,26406

€ 6.50

92116

921161001
ref: 92116

BEARING,R,4T30203E1

€ 39.00
