FRONT FORK

ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

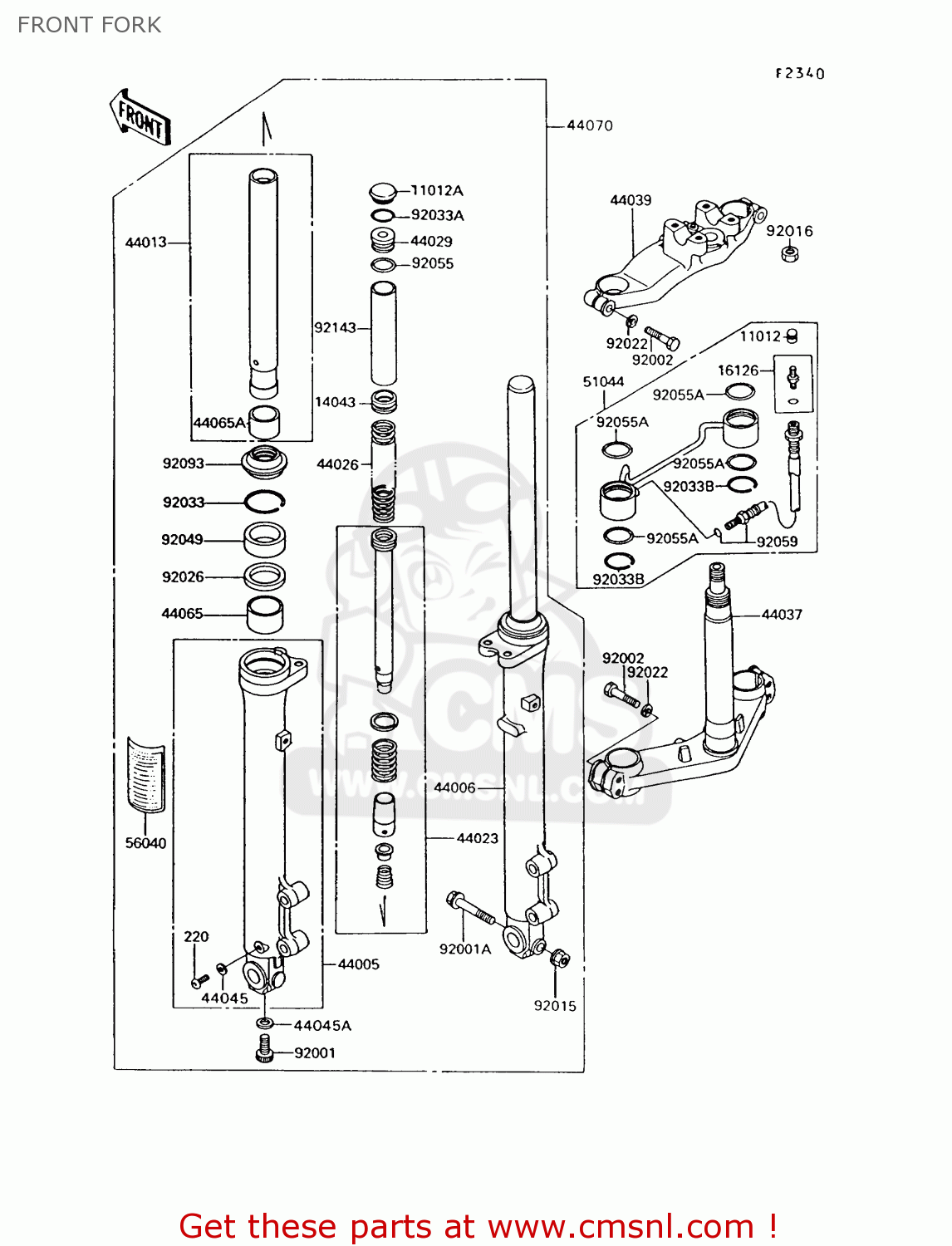

Front fork diagram ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

FRONT FORK ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
FRONT FORK ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
FRONT FORK ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
11012
110121552
ref: 11012
CAP,AIR VALVE
110121552
€ 3.50
11012A
110121561
ref: 11012A
CAP,FORK TOP
110121561
€ 12.00
14043
140431066
ref: 14043
FORK FILTER
€ 34.50
16126
161261105
ref: 16126
VALVE,AIR
161261105
€ 24.50
44005
440051250
ref: 44005
FORK OUTER PIPE,LH
€ 255.00
44006
440061249
ref: 44006
FORK OUTER PIPE,RH
€ 312.50
44013
440131263
ref: 44013
PIPE-FORK INNER
€ 268.00
44023
440231060
ref: 44023
FORK CYLINDER,COMPLETE
€ 86.00
44026
440261375
ref: 44026
FRONT FORK SPRING
€ 52.00
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44037
440371194
ref: 44037
FORK HOLDER,UNDER
€ 317.50
44039
440391132
ref: 44039
FORK HOLDER,UPPER
€ 180.00
44045
44045046
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045046
€ 4.50
44045A
44045051
ref: 44045A
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
440651079
€ 16.00
44065A
440651080
ref: 44065A
BUSHING-FRONT FORK,IN
440651080
€ 19.00
44070
440705036
ref: 44070
DAMPER ASSEMBLY
€ 821.50
51044
510441082
ref: 51044
AIR FORK TUBE ASSEMBLY
€ 87.50
56040
560401054
ref: 56040
LABEL-WARNING,AIR SUS
560401054
€ 4.00
92001
920011464
ref: 92001
BOLT
920011464
€ 4.00
92001A
920011485
ref: 92001A
BOLT,FLANGED,8X55
€ 9.00
92002
920021603
ref: 92002
BOLT
920021603
€ 5.00
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92016
92016044
ref: 92016
NUT,14MM
92016044
€ 4.50
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92033B
920331224
ref: 92033B
AIR TUBE SNAP RING
€ 2.50
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92055A
920551364
ref: 92055A
RING-O FORK, AIR TUBE
920551364
€ 5.50
92059
920591745
ref: 92059
TUBE,FORK,AIR
€ 122.00
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92143
921431053
ref: 92143
COLLAR,FORK SPRING
€ 5.50
