CHASSIS ELECTRICAL EQUIPMENT

ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

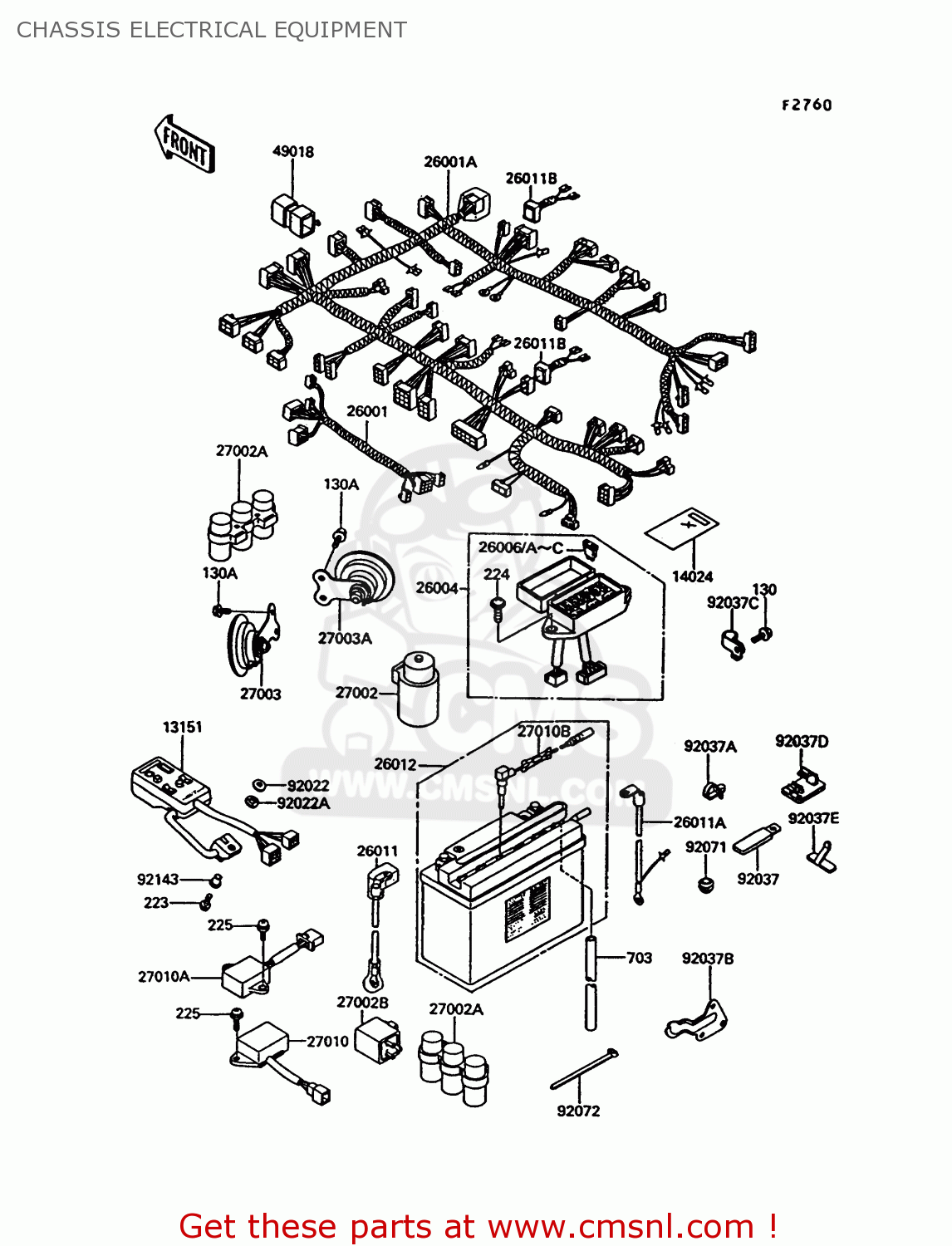

Chassis electrical equipment diagram ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZG1200B8 VOYAGER XII 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
130C0612
€ 1.50
223
223C0620
ref: 223
SCREW-PAN-WS-CROS
223C0620
€ 2.50
224
224B0614
ref: 224
SCREW-PAN-WP-CROS
€ 4.00
225
225B0620
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
703
703A08750
ref: 703
TUBE RUBBER, 8X750
703A08750
€ 13.50
13151
131511063
ref: 13151
SWITCH-COMP,AUDIO
€ 280.00
14024
140241352
ref: 14024
COVER
€ 14.00
26001
260011863
ref: 26001
RADIO HARNESS
€ 49.50
26001A
260011892
ref: 26001A
HARNESS,MAIN
€ 291.50
26004
260041085
ref: 26004
FUSE ASSEMBLY
€ 77.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26006B
260061069
ref: 26006B
FUSE
€ 3.50
26006C
260061070
ref: 26006C
FUSE,3A-P
260061070
€ 3.50
26011
260111339
ref: 26011
BATTERY WIRE LEAD,(+)
€ 22.00
26011A
260111340
ref: 26011A
BATTERY WIRE LEAD,(-)
€ 22.50
26011B
260111365
ref: 26011B
WIRE LEAD
€ 7.50
26012
260121240
ref: 26012
BATTERY,YUA,SY50-N18L-AT
€ 49.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27002A
270021052
ref: 27002A
RELAY-ASSY
270021052
€ 118.50
27002B
270021060
ref: 27002B
RELAY-ASSY,TURN SIGNA
270021060
€ 65.50
27003
270031239
ref: 27003
HORN,350HZ,LH
270031239
€ 58.50
27003A
270031240
ref: 27003A
HORN,415HZ,RH
€ 43.50
27010
270101069
ref: 27010
SWITCH,RESERVE LIGTIN
270101069
€ 149.00
27010A
270101166
ref: 27010A
SWITCH,TURN SIGNAL OP
270101166
€ 47.00
27010B
270101256
ref: 27010B
SWITCH,BATTERY,L=180
270101256
€ 15.50
49018
490181052
ref: 49018
DIODE
490181052
€ 35.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
920221828
ref: 92022A
WASHER
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037B
920371720
ref: 92037B
CLAMP
€ 4.50
92037C
920371727
ref: 92037C
CLAMP,HOSE
920371727
€ 5.50
92037D
920371816
ref: 92037D
CLAMP,HARNESS
920371816
€ 5.00
92037E
920371820
ref: 92037E
CLAMP
€ 4.00
92071
92071024
ref: 92071
GROMMET
92071024
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92143
921431026
ref: 92143
COLLAR
921431026
€ 4.00
