OIL PUMP/OIL FILTER

ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

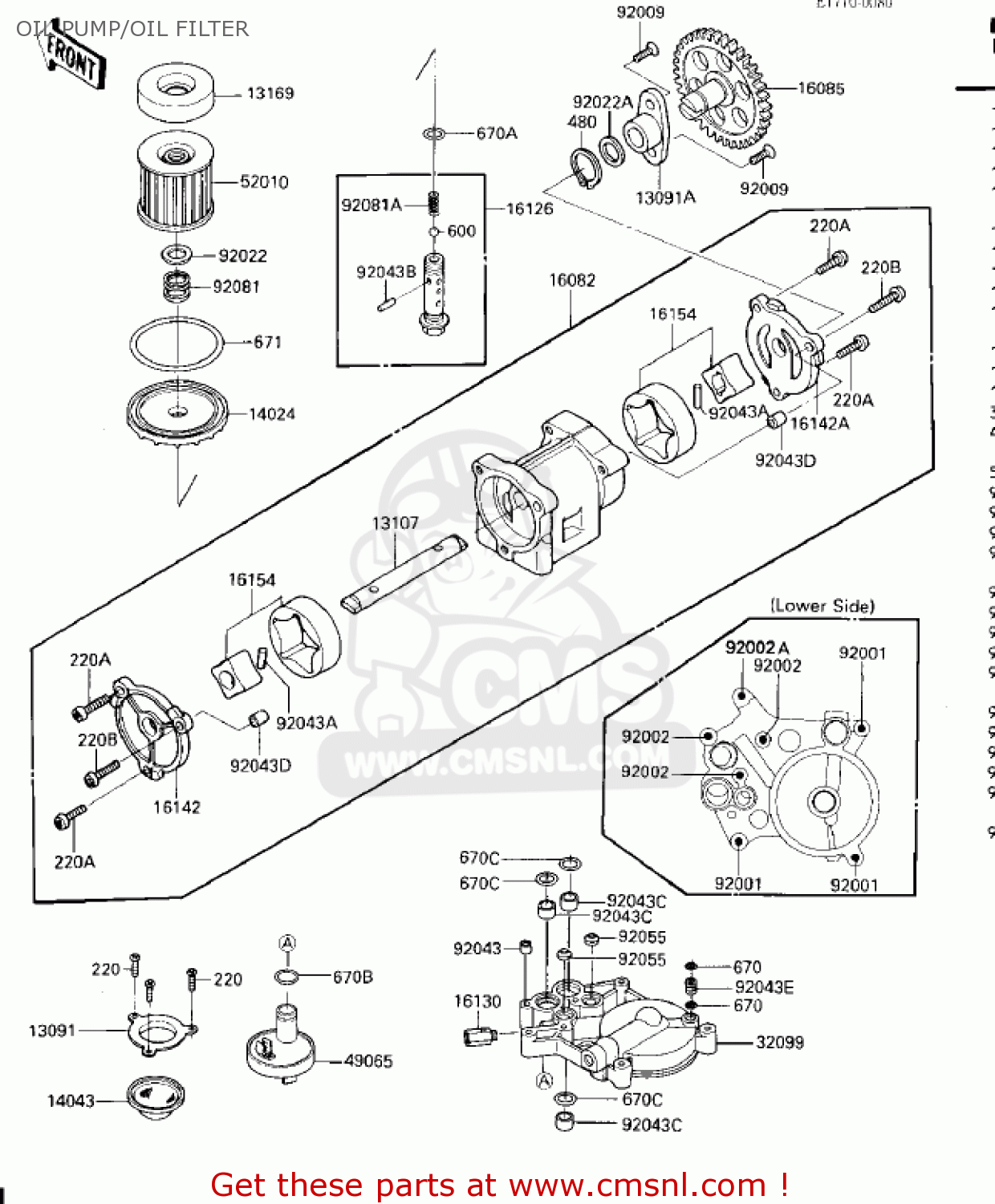

Oil pump/oil filter diagram ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

OIL PUMP/OIL FILTER ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
OIL PUMP/OIL FILTER ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911274
ref: 13091
HOLDER,OIL FILTER
130911274
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
130911333
€ 21.00
13107
131071191
ref: 13107
SHAFT
€ 35.00
13169
131691313
ref: 13169
PLATE,OIL FILTER
131691313
€ 7.00
14024
16101004
ref: 14024
COVER,OIL FILTER
16101004
€ 31.00
14043
16111003
ref: 14043
STRAINER,OIL
16111003
€ 10.00
16082
160821076
ref: 16082
PUMP-ASSY-OIL
€ 248.50
16085
160851153
ref: 16085
GEAR,OIL PUMP,35T
€ 95.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421070
ref: 16142
COVER-PUMP,LH
€ 30.50
16142A
161421071
ref: 16142A
COVER-PUMP,RH
€ 30.50
16154
161541062
ref: 16154
ROTOR-PUMP
€ 40.00
32099
320991082
ref: 32099
CASE,OIL FILTER
€ 107.50
49065
490651055
ref: 49065
OIL FILTER
€ 21.00
52010
16099003
ref: 52010
FILTER,OIL
16099003
€ 6.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92002
920021431
ref: 92002
BOLT,6X38
920021431
€ 3.50
92002A
920021881
ref: 92002A
BOLT, 6X43
920021881
€ 4.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92022A
920221495
ref: 92022A
WASHER,14X20X1
920221495
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
920431061
ref: 92043A
PIN,DOWEL,5X17.8
920431061
€ 3.00
92043B
92043111
ref: 92043B
SPRING PIN
92043111
€ 4.00
92043C
920431213
ref: 92043C
PIN,18X20X12
920431213
€ 4.00
92043D
920431302
ref: 92043D
PIN,DOWEL,8X10
920431302
€ 1.00
92043E
920431304
ref: 92043E
PIN
€ 6.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220A
220B0618
ref: 220A
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
220B
220B0625
ref: 220B
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
480
480J1400
ref: 480
CIRCLIP-TYPE-C,14MM
480J1400
€ 3.00
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B1505
ref: 670
O RING,5MM
670B1505
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
