Genuine ZG Kawasaki Parts delivered quickly!


HANDLEBAR

ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

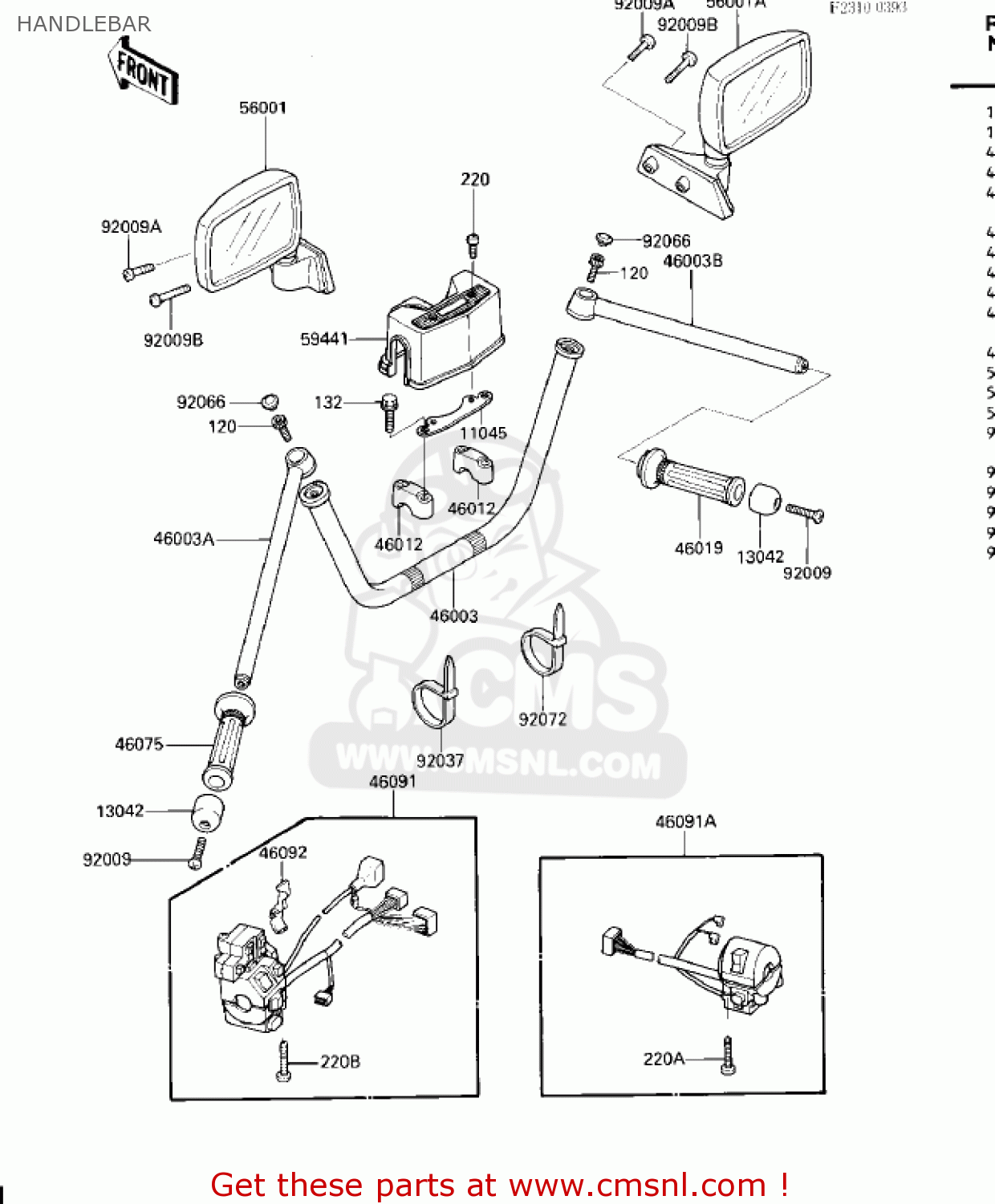

Handlebar diagram ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

HANDLEBAR ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
HANDLEBAR ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
HANDLEBAR ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11045
110441635
ref: 11045
COVER HANDLE BRACKET
€ 5.50
13042
130421051
ref: 13042
WEIGHT,HANDLE
130421051
€ 25.00
46003
460031210
ref: 46003
HANDLE,CNT
460031210
€ 104.00
46003A
460031211
ref: 46003A
HANDLE,LH
€ 62.00
46003B
460031212
ref: 46003B
HANDLE,RH
€ 62.00
46012
460121151
ref: 46012
HANDLE HOLDER,UPPER
€ 11.50
46019
460191064
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.00
46075
460751068
ref: 46075
GRIP,LH
460751068
€ 9.50
46091
460911385
ref: 46091
HOUSING-ASSY-CONTROL
€ 249.50
46091A
460911401
ref: 46091A
CONTROLLER HOUSING ASSEMBLY
€ 79.50
46092
460921124
ref: 46092
LEVER-GRIP,CHOKE
460921124
€ 4.50
56001
560011262
ref: 56001
MIRROR-ASSY,LH
560011262
€ 82.50
56001A
560011263
ref: 56001A
MIRROR-ASSY,RH
€ 79.00
59441
594411065
ref: 59441
COVER-HANDLE
594411065
€ 16.00
92009
920091257
ref: 92009
SCREW,HANDLE WEIGHT
920091257
€ 3.00
92009A
920091496
ref: 92009A
SCREW,6X30
€ 1.50
92009B
920091497
ref: 92009B
SCREW,6X45,220C0645
€ 2.50
92037
920371817
ref: 92037
CLAMP,BAND,L=137
920371817
€ 8.50
92066
920661234
ref: 92066
PLUG,18.3X4.5
€ 6.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
120
120T1025
ref: 120
BOLT-SOCKET
€ 3.00
132
132G0840
ref: 132
BOLT-FLANGED-SMALL
132G0840
€ 3.00
220
220C0416
ref: 220
SCREW-PAN-CROS
220C0416
€ 1.00
220A
220C0540
ref: 220A
SCREW-PAN-CROS
220C0540
€ 1.50
220B
220C0545
ref: 220B
SCREW-PAN-CROS
220C0545
€ 1.50
