GEAR CHANGE MECHANISM

ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

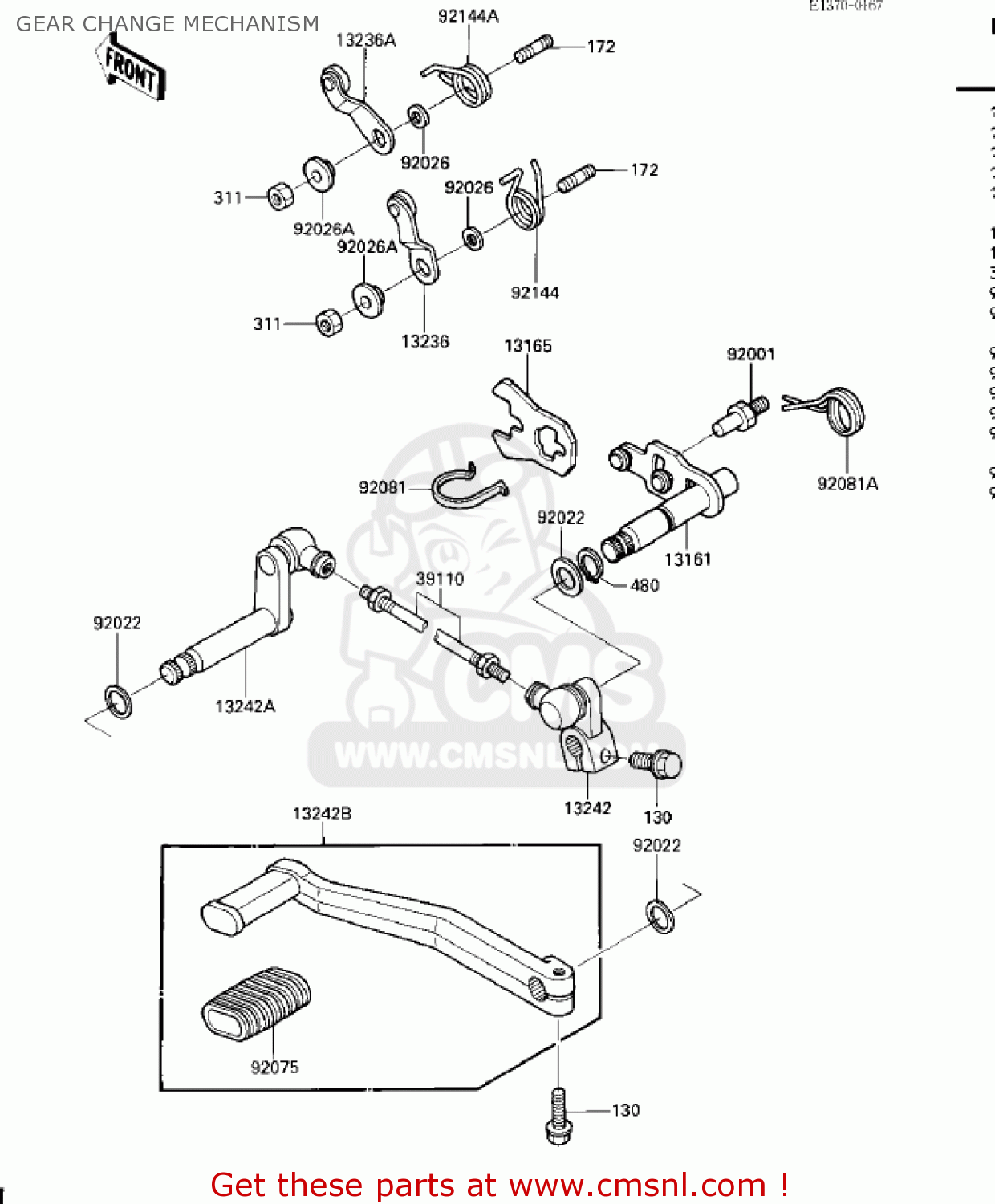

Gear change mechanism diagram ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZG1200A1 VOYAGER XII 1986 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13161
131611130
ref: 13161
CHANGE SHAFT LEVER,COMPLETE
€ 58.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361143
ref: 13236
LEVER-COMP,NEUTRAL PO
132361143
€ 6.00
13236A
132361144
ref: 13236A
LEVER-COMP,GEAR POSIT
132361144
€ 6.00
13242
132421194
ref: 13242
LEVER-ASSY-CHANGE
€ 26.00
13242A
132421209
ref: 13242A
CHANGE PEDAL LEVER ASSEMBLY
€ 63.00
13242B
132421209
ref: 13242B
CHANGE PEDAL LEVER ASSEMBLY
€ 63.00
39110
391101008
ref: 39110
ROD-ASSY-TIE,L=90,BLA
391101008
€ 7.50
92001
920011401
ref: 92001
BOLT,RETURN SPRING
920011401
€ 3.00
92022
920221772
ref: 92022
WASHER
920221772
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92075
920751585
ref: 92075
DAMPER
920751585
€ 6.50
92081
920811829
ref: 92081
SPRING,CHANGE LEVER
920811829
€ 6.00
92081A
920811869
ref: 92081A
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
920811941
ref: 92144
SPRING,NEUTRAL LEVER
€ 3.00
92144A
920811942
ref: 92144A
SPRING,GEAR LEVER
920811942
€ 2.50
130
130P0620
ref: 130
BOLT-FLANGED,6X20
130P0620
€ 2.50
172
172G0612
ref: 172
BOLT-STUD,6X12
172G0612
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
