OIL COOLER

ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

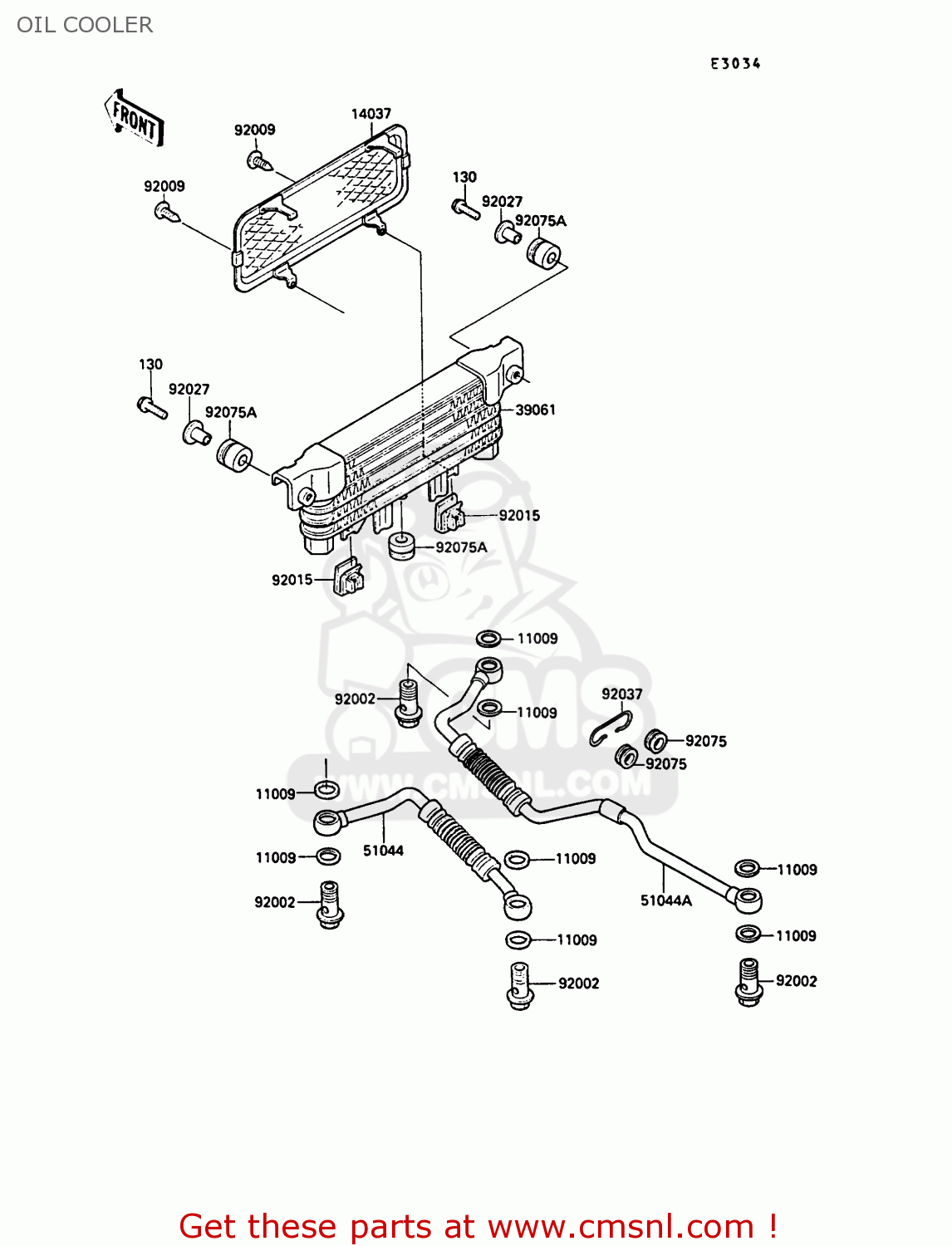

Oil cooler diagram ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

prices are in EUR

ref

part #

description

quantity

130

130J0625
ref: 130

BOLT-FLANGED,6X25

€ 2.00

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

14037

140371073
ref: 14037

SCREEN,OIL COOLER

€ 50.00

39061

390611117
ref: 39061

OIL COOLER

€ 458.00

51044

510441068
ref: 51044

TUBE-ASSY,OIL COOLER,

€ 216.50

51044A

510441086
ref: 51044A

TUBE-ASSY,OIL COOLER,

€ 224.50

92002

920011930
ref: 92002

BOLT,14X28.5

€ 6.50

92009

920091261
ref: 92009

SCREW,TAPPING,6MM

€ 2.00

92015

920151758
ref: 92015

NUT

€ 4.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92037

920371905
ref: 92037

CLAMP,OIL COOLER

€ 4.50

92075

920751942
ref: 92075

DAMPER,OIL COOLER

€ 3.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

OIL COOLER

all assemblies
