HEAD LAMP(ZGT00A-009977&NAMI.)

ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

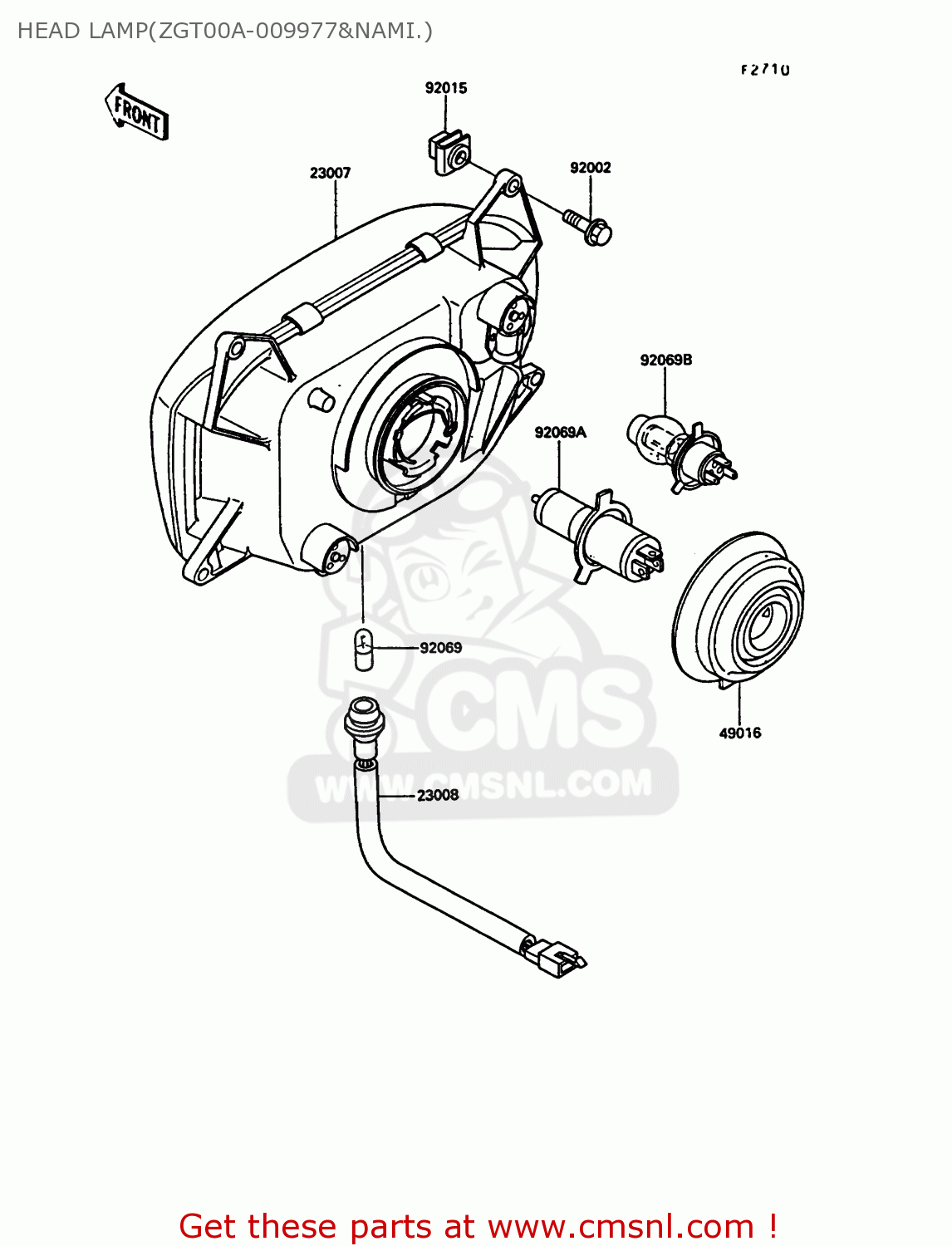

Head lamp(zgt00a-009977&nami.) diagram ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

prices are in EUR

ref

part #

description

quantity

23007

230071186
ref: 23007
EUFGFRITSD

LENS-COMP,HEAD LAMP

€ 172.00

23008

230081362
ref: 23008
EUFGFRITSD

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016
EUFGFRITSD

COVER-SEAL,HEAD LAMP

€ 11.00

92002

920021135
ref: 92002
EUFGFRITSD

BOLT,6X25

€ 2.50

92015

920151094
ref: 92015
EUFGFRITSD

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069
EUFGFRITSD

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
EUFGITSD

BULB,12V-60155W

€ 15.00
