Genuine ZG Kawasaki Parts delivered quickly!


FRONT CALIPER

ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

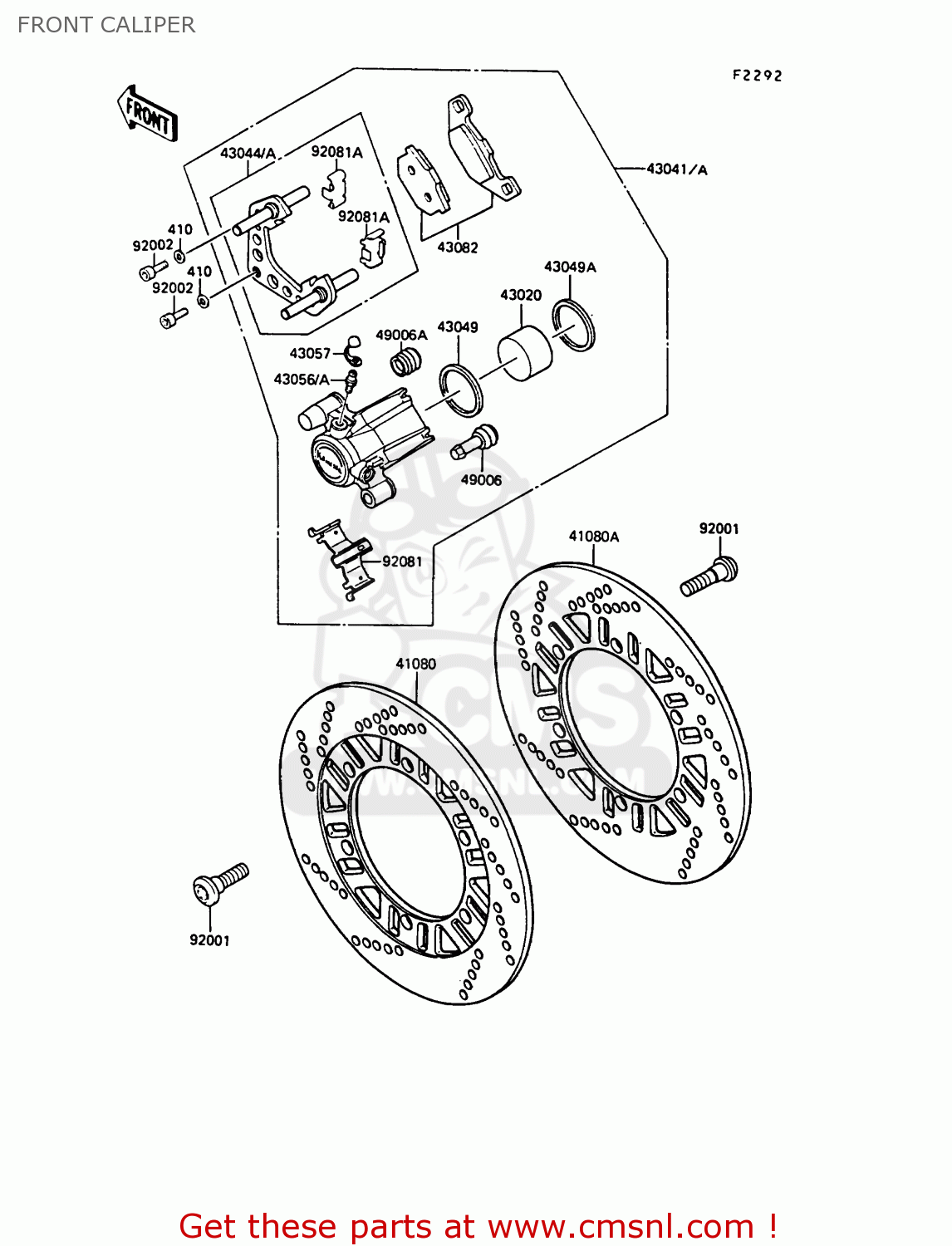

Front caliper diagram ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD

FRONT CALIPER ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD
FRONT CALIPER ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD
FRONT CALIPER ZG1000A5 1000GTR 1990 EUROPE UK FR FG IT SD
prices are in EUR
ref
part #
description
quantity
410
410B1000
ref: 410
WASHER-PLAIN-SMALL,10
410B1000
€ 0.50
41080
410801205
ref: 41080
DISC,FR,LH
€ 253.00
41080A
410801206
ref: 41080A
DISC,FR,RH
€ 270.50
43020
430201066
ref: 43020
PISTON-COMP-BRAKE
430201066
€ 75.50
43041
430411316
ref: 43041
CALIPER-ASSY,FR,LH
€ 453.50
43041A
430411317
ref: 43041A
CALIPER-ASSY,FR,RH
430411317
€ 380.00
43044
430441035
ref: 43044
HOLDER-COMP-CALIPER,F
430441035
€ 114.50
43044A
430441036
ref: 43044A
HOLDER-COMP-CALIPER,F
430441036
€ 127.50
43049
43049002A
ref: 43049
PISTON SEAL RING
€ 9.00
43049A
430491028
ref: 43049A
PACKING,PISTON (NAS)
430491028
€ 8.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821061
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821061
€ 42.50
49006
490061094
ref: 49006
BOOT,CALIPER
490061094
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
920011951
€ 3.00
92002
920011901
ref: 92002
BOLT,SOCKET,10X33
920011901
€ 6.50
92081
920811525
ref: 92081
SPRING,PAD
920811525
€ 12.00
92081A
920811661
ref: 92081A
SPRING,PAD STOPPER
920811661
€ 7.50
