TRANSMISSION
ZG1000A3A 1000GTR 1988 UNITED KINGDOM

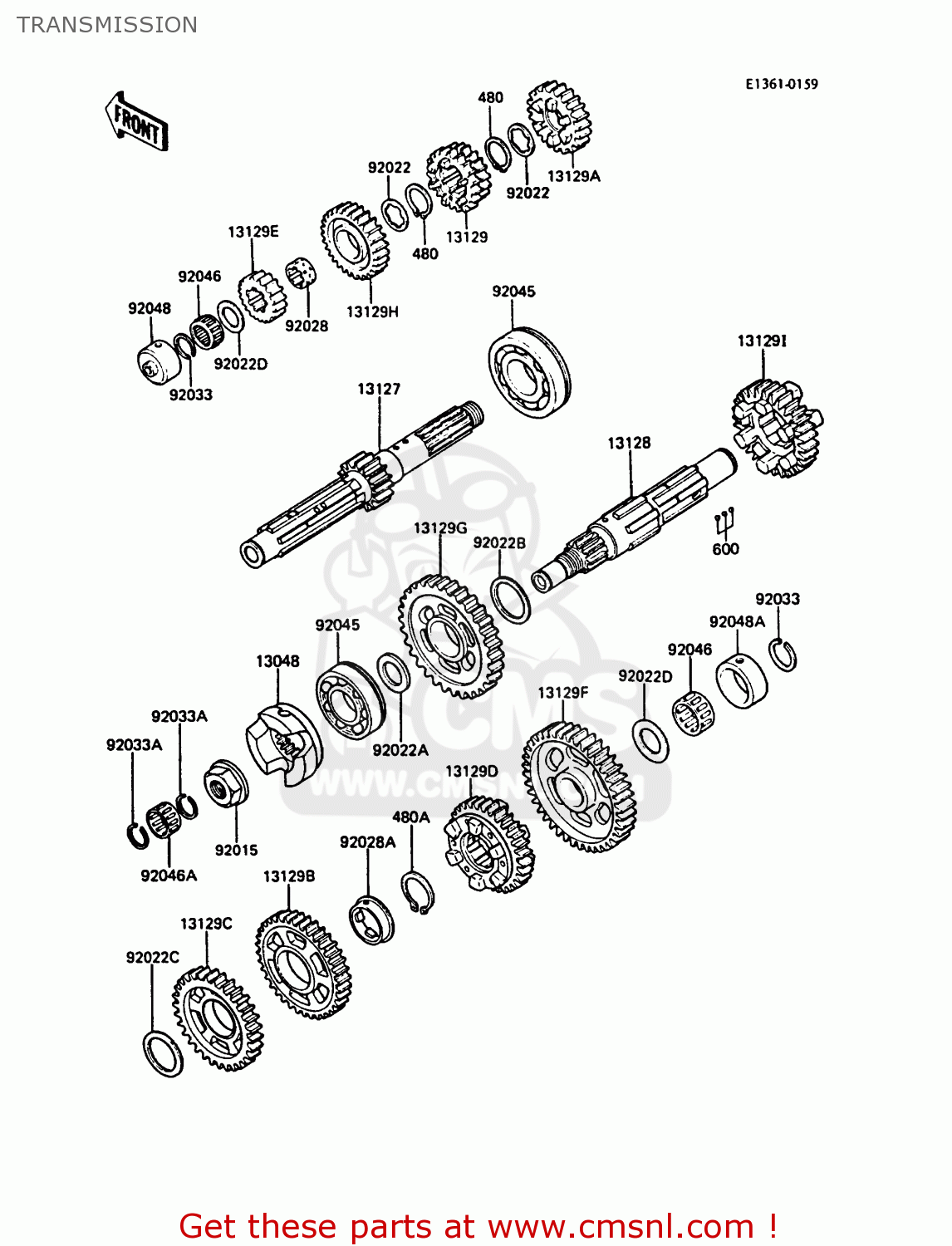

Transmission diagram ZG1000A3A 1000GTR 1988 UNITED KINGDOM
TRANSMISSION ZG1000A3A 1000GTR 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13048
130481060
ref: 13048
CAM-DAMPER
€ 73.00
13127
131271135
ref: 13127
SHAFT-TRANSMISSION IN
€ 269.00
13128
131281138
ref: 13128
SHAFT-TRANSMISSION OU
€ 262.00
13129
131291664
ref: 13129
GEAR,INPUT 3RD&4TH,24
€ 173.00
13129A
131291665
ref: 13129A
GEAR,INPUT 5TH,26T
€ 154.50
13129B
131291775
ref: 13129B
GEAR,OUTPUT 3RD,35T
€ 80.50
13129C
131291776
ref: 13129C
GEAR,OUTPUT 4TH,32T
€ 121.50
13129D
131291777
ref: 13129D
GEAR,OUTPUT 5TH,30T
€ 96.00
13129E
131291784
ref: 13129E
GEAR,INPUT 2ND,18T
€ 110.50
13129F
131291785
ref: 13129F
GEAR,OUTPUT LOW,43T
€ 163.00
13129G
131291786
ref: 13129G
GEAR,OUTPUT 2ND,37T
€ 80.50
13129H
131291825
ref: 13129H
GEAR,INPUT TOP,29T
€ 137.00
13129I
131291826
ref: 13129I
GEAR,OUTPUT TOP,28T
€ 96.00
92015
920151610
ref: 92015
NUT,20MM
€ 9.00
92022
920221077
ref: 92022
WASHER,LOCK (O.D=35O)
€ 7.50
92022A
920221219
ref: 92022A
WASHER,28.3X42X2.9
€ 10.50
92022B
920221693
ref: 92022B
WASHER,32X40X1.6
€ 4.50
92022C
920221694
ref: 92022C
WASHER,30X38X2.0
€ 3.50
92022D
92022212
ref: 92022D
WASHER-PLAIN,22MM
€ 6.50
92028
920281124
ref: 92028
BUSHING,TOP GEAR
€ 31.00
92028A
920281374
ref: 92028A
BUSHING,OUTPUT 3RD GE
€ 22.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
92033028
ref: 92033A
CIRCLIP
€ 6.00
92045
920451186
ref: 92045
BEARING-BALL
€ 73.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92046A
920461145
ref: 92046A
BEARING-NEEDLE,K17X23
€ 20.00
92048
920481052
ref: 92048
RACE,INPUT SHAFT
€ 59.50
92048A
920481053
ref: 92048A
RACE,30X38X15
€ 27.50
