CARBURETOR
ZG1000A3A 1000GTR 1988 UNITED KINGDOM

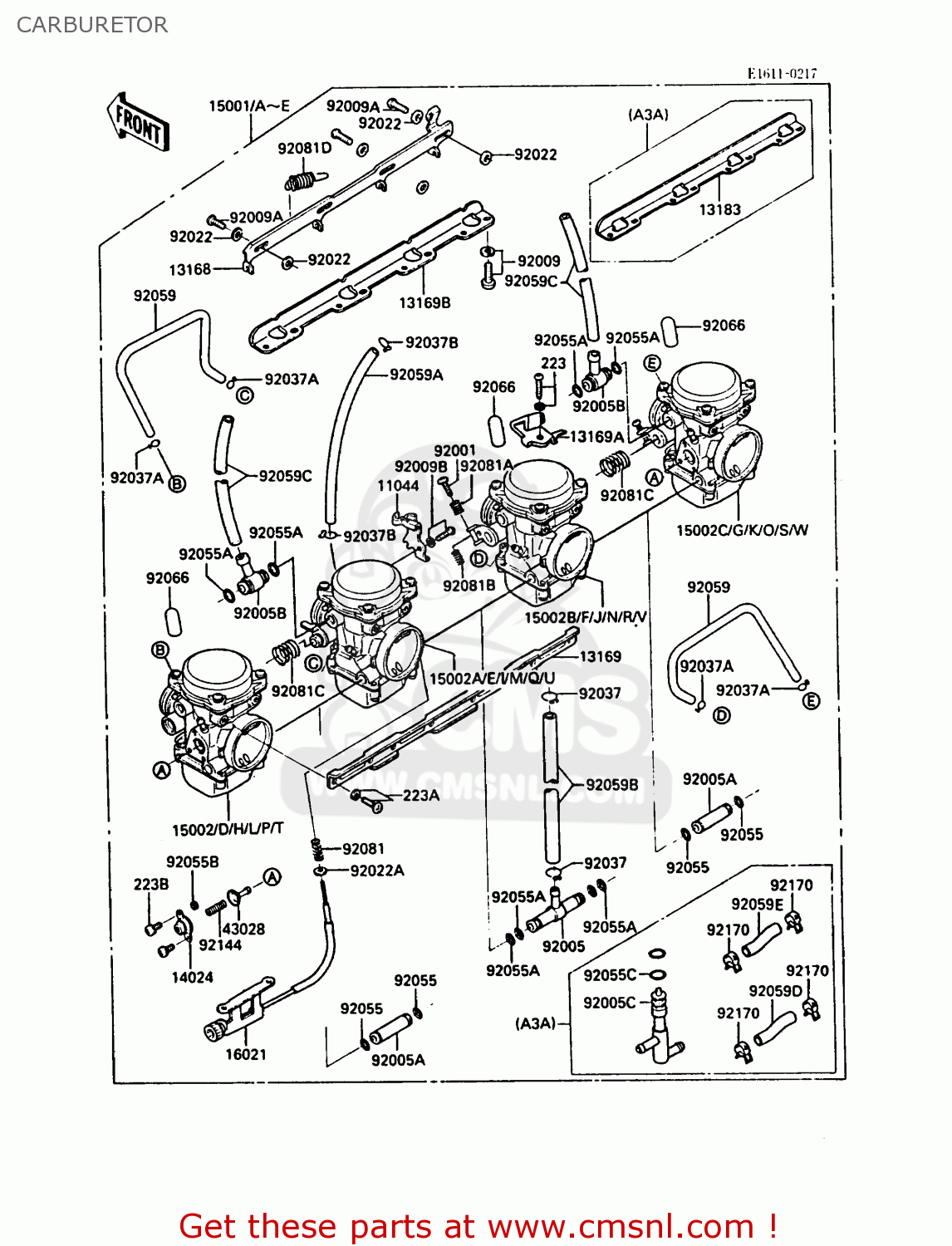

Carburetor diagram ZG1000A3A 1000GTR 1988 UNITED KINGDOM
CARBURETOR ZG1000A3A 1000GTR 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13183
131831330
ref: 13183
PLATE,CARBURETOR STAY
€ 62.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
15001E
150011469
ref: 15001E
CARBURETOR-ASSY
€ 1,865.00
15002T
150021693
ref: 15002T
CARBURETOR,LH,OUTSIDE
€ 487.00
15002U
150021694
ref: 15002U
CARBURETOR
€ 487.00
15002V
150021695
ref: 15002V
CARBURETOR,RH,INSIDE
€ 487.00
15002W
150021696
ref: 15002W
CARBURETOR,RH,OUTSIDE
€ 487.00
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051125
ref: 92005B
FITTING,T-TYPE
€ 18.00
92005C
920051184
ref: 92005C
FITTING
€ 37.50
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92055B
920551245
ref: 92055B
RING-O
€ 3.50
92055C
920551427
ref: 92055C
RING-O,4.5X1.5
€ 3.00
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591173
ref: 92059A
TUBE,5X9X200
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591598
ref: 92059C
TUBE,6.5X9.5X260
€ 20.50
92059D
920591976
ref: 92059D
TUBE,4X10X59
€ 9.00
92059E
920591977
ref: 92059E
TUBE,4X10X70
€ 9.00
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
€ 14.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
€ 6.50
92170
921701055
ref: 92170
CLAMP,WATER HOSE
€ 3.50
