FUEL TANK
ZG1000A3A 1000GTR 1988 UNITED KINGDOM

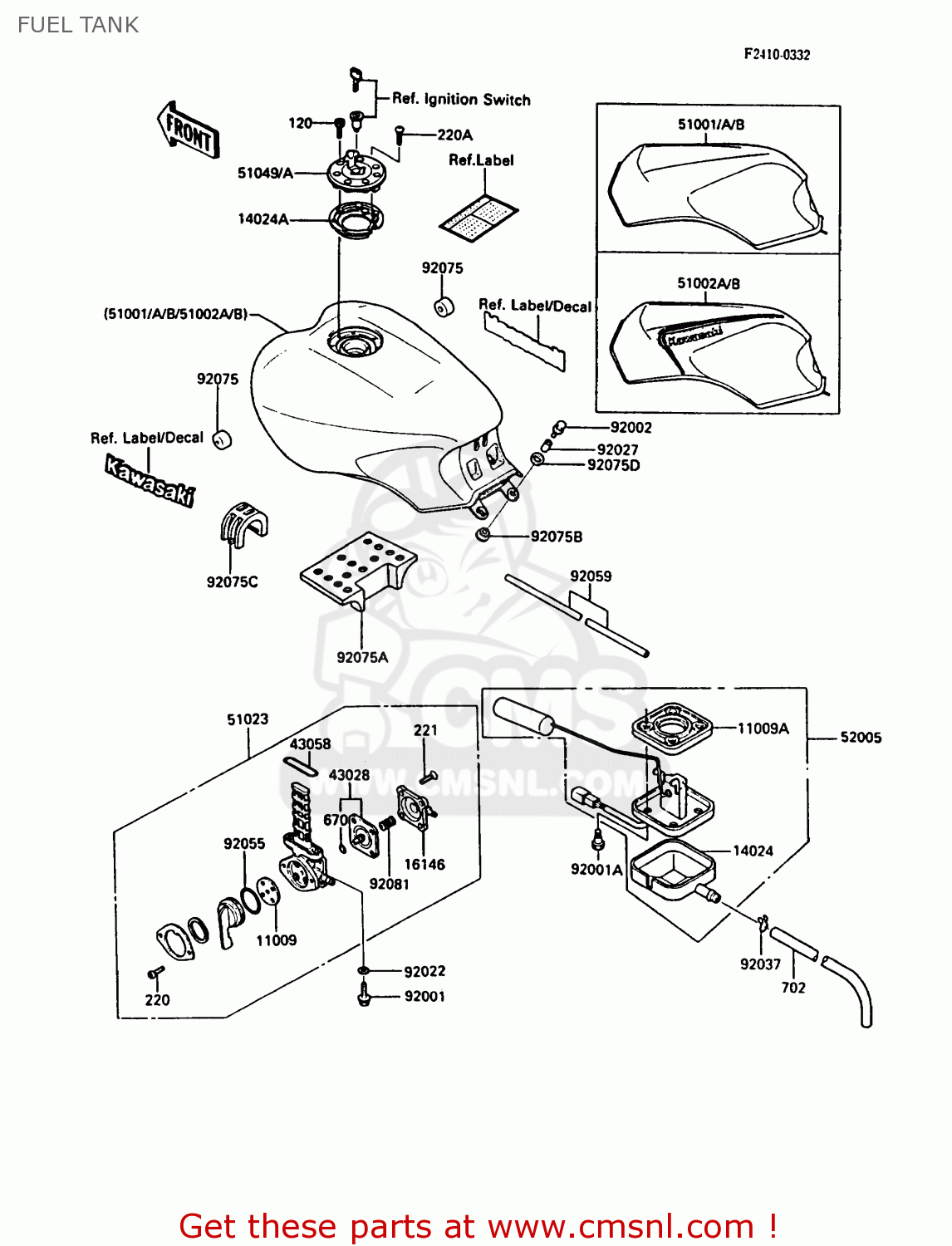

Fuel tank diagram ZG1000A3A 1000GTR 1988 UNITED KINGDOM
FUEL TANK ZG1000A3A 1000GTR 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
11009
110091530
ref: 11009
GASKET,TAP VALVE (NAS)
€ 6.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
€ 14.50
14024
140251536
ref: 14024
COVER,FUEL GAGE
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
€ 13.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
43058
51039010
ref: 43058
RING,TAP FLANGED
€ 4.50
51002A
510025400R1
ref: 51002A
TANK-COMP-FUEL,P.A.WH
€ 898.00
51002B
510025401A5
ref: 51002B
TANK-COMP-FUEL,C.P.RE
€ 937.50
51023
510231130
ref: 51023
TAP-ASSY,FUEL
€ 105.00
51049A
510491080
ref: 51049A
CAP-TANK,FUEL
€ 106.50
52005
520051078
ref: 52005
GAUGE,FUEL
€ 102.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
€ 2.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551027
ref: 92055
RING-O,TAP LEVER
€ 3.50
92059
920591726
ref: 92059
TUBE
€ 18.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751672
ref: 92075A
DAMPER,FUEL TANK
€ 25.00
92075B
92075174
ref: 92075B
DAMPER,MALE
€ 3.00
92075C
920751741
ref: 92075C
DAMPER,FUEL TANK
€ 12.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07780
ref: 702
TUBE,RUBBER,7X780
€ 9.50
