REAR MASTER CYLINDER

ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

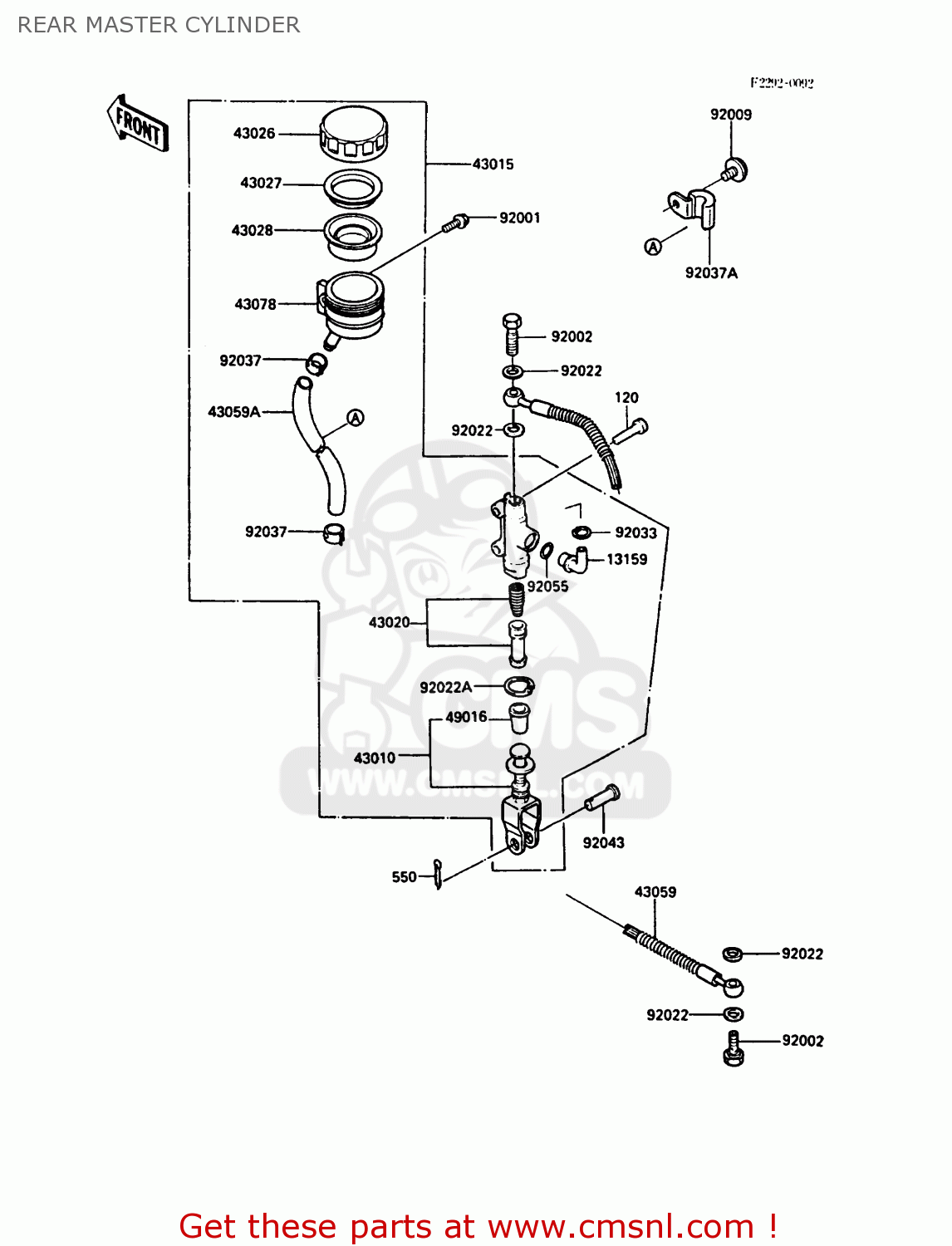

Rear master cylinder diagram ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

REAR MASTER CYLINDER ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
REAR MASTER CYLINDER ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
REAR MASTER CYLINDER ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
prices are in EUR
ref
part #
description
quantity
120
120P0830
ref: 120
BOLT,SOCKET,8X30
120P0830
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101061
ref: 43010
ROD-ASSY-BRAKE
€ 23.50
43015
430151324
ref: 43015
CYLINDER-ASSY-MASTER,
€ 353.00
43020
430201067
ref: 43020
PISTON-COMP-BRAKE,RR
430201067
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591343
ref: 43059
HOSE-BRAKE,RR
€ 51.50
43059A
430591374
ref: 43059A
HOSE-BRAKE,RR MASTER
430591374
€ 29.00
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
430781058
€ 20.00
49016
490161103
ref: 49016
COVER-SEAL
490161103
€ 11.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091294
ref: 92009
SCREW,6X8
920091294
€ 2.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92037A
920371807
ref: 92037A
CLAMP,HOSE
€ 3.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
