REAR HUB

ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

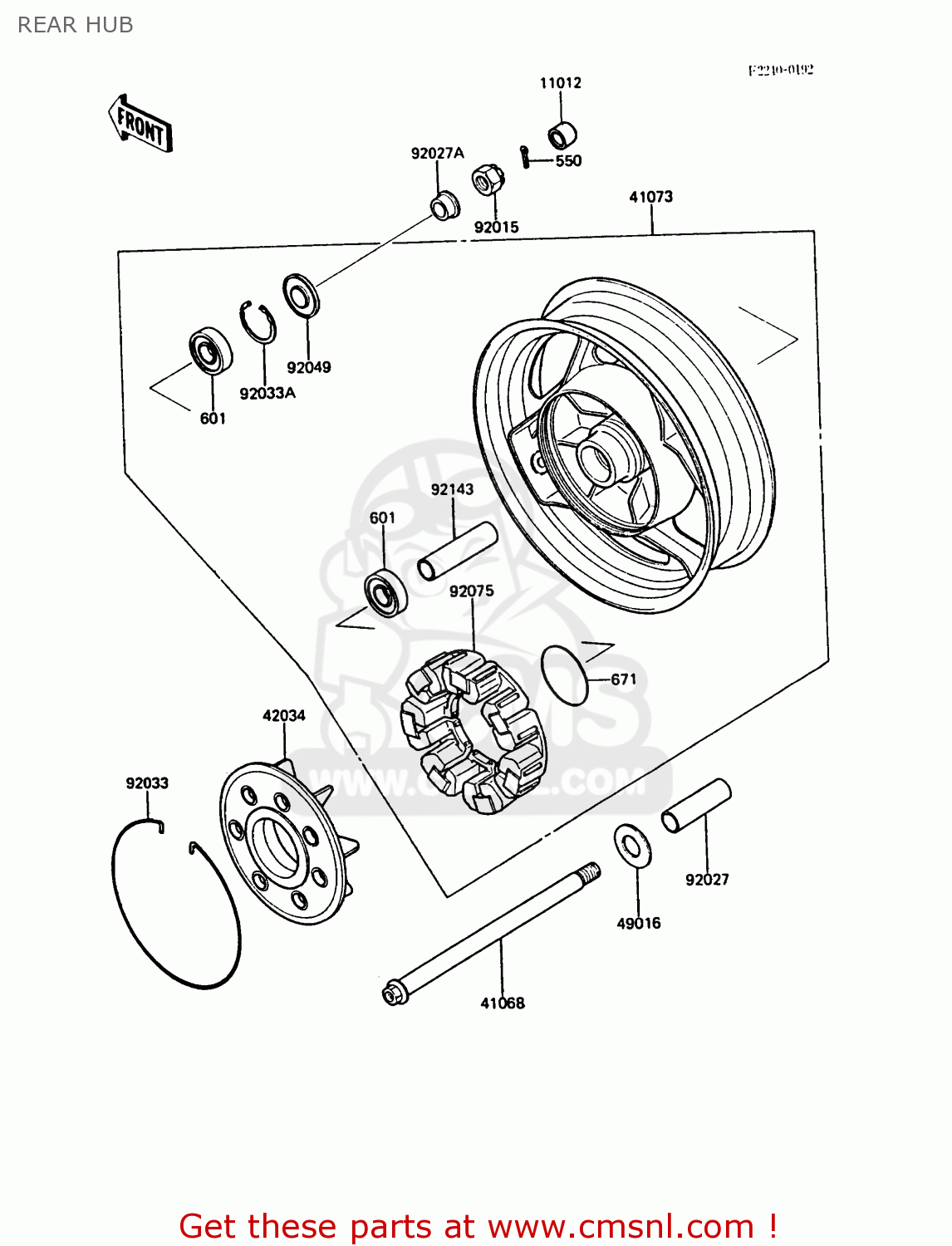

Rear hub diagram ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

prices are in EUR

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6304ZZ
ref: 601

BEARING-BALL,#6304ZZC

€ 36.00

671

671B2580
ref: 671

O RING,80MM

€ 4.00

41068

410681197
ref: 41068

AXLE,RR

€ 70.00

41073

410731335V5
ref: 41073

WHEEL-ASSY,RR,SILVER

€ 761.50

42034

420341011
ref: 42034

COUPLING,RR HUB

€ 251.00

49016

490161019
ref: 49016

COVER-SEAL

€ 5.50

92015

42045018
ref: 92015

NUT,18MM

€ 7.50

92027

920271553
ref: 92027

COLLAR,20.2X28X89

€ 21.50

92027A

920271792
ref: 92027A

COLLAR,RR AXLE,L=20

€ 19.50

92033

920331019
ref: 92033

RING-SNAP

€ 10.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92075

920751121
ref: 92075

DAMPER,SHOCK,RR HUB

€ 88.00

92143

921431048
ref: 92143

COLLAR,20.2X28X105.5

€ 25.50
