Genuine ZG Kawasaki Parts delivered quickly!


RADIATOR

ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

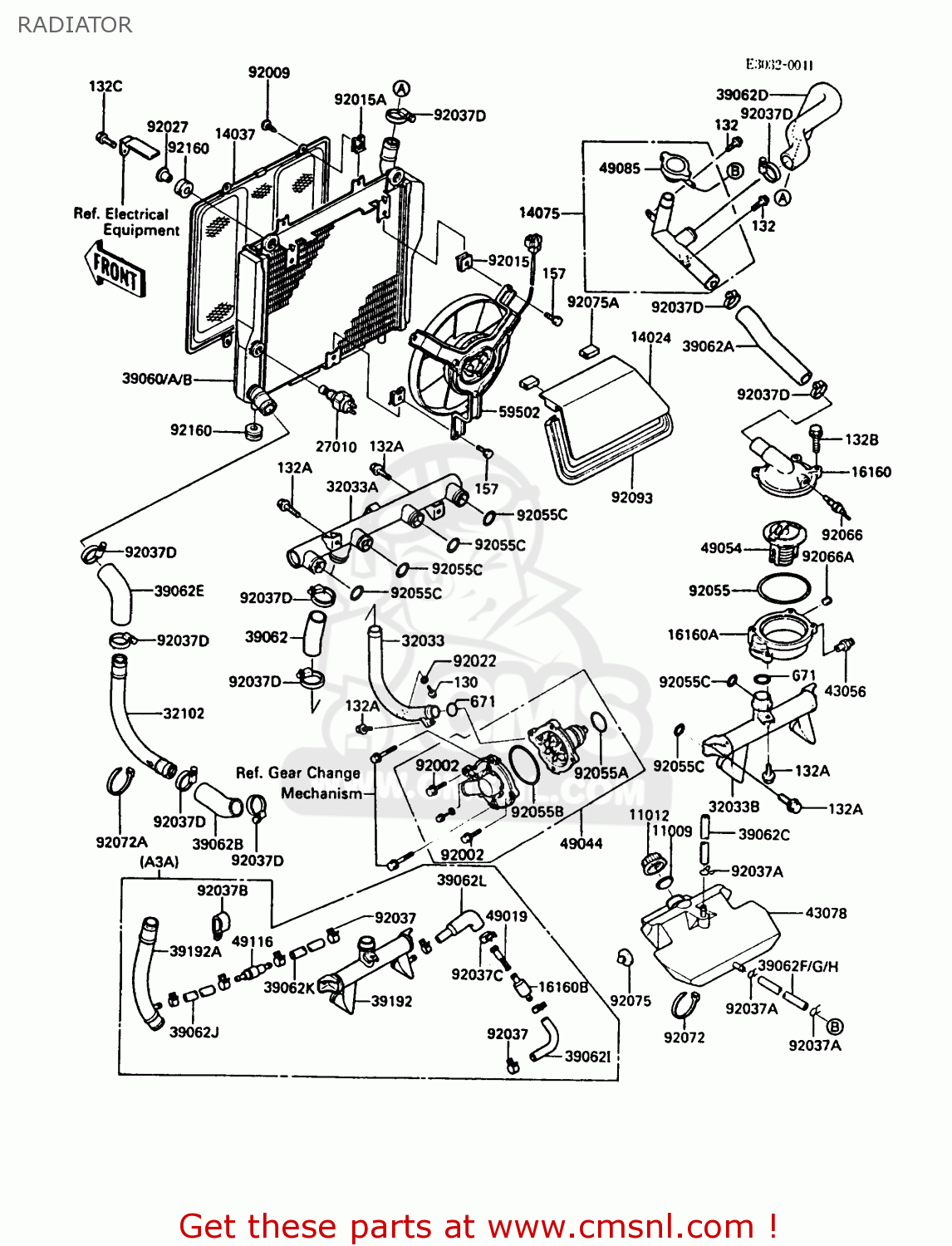

Radiator diagram ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST

RADIATOR ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
RADIATOR ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
RADIATOR ZG1000A3 1000GTR 1988 EUROPE FR UK NR SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241267
ref: 14024
COVER
140241267
€ 29.50
14037
140371070
ref: 14037
SCREEN,RADIATOR
140371070
€ 66.00
14075
140751055
ref: 14075
CAP-ASSY,RADIATOR
€ 160.00
16160
161601067
ref: 16160
BODY,THERMOSTAT,UPP
161601067
€ 52.00
16160A
161601068
ref: 16160A
BODY,THERMOSTAT,LWR
161601068
€ 63.50
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
32033
320331206
ref: 32033
PIPE
320331206
€ 98.00
32033A
320331262
ref: 32033A
PIPE
€ 124.50
32033B
320331719
ref: 32033B
PIPE
320331719
€ 102.00
32102
321021023
ref: 32102
PIPE
321021023
€ 88.50
39060A
390601076
ref: 39060A
RADIATOR
€ 934.50
39062
390621072
ref: 39062
HOSE-COOLING
390621072
€ 14.00
39062A
390621091
ref: 39062A
HOSE-COOLING
390621091
€ 25.50
39062B
390621092
ref: 39062B
HOSE-COOLING
390621092
€ 14.00
39062C
390621144
ref: 39062C
HOSE-COOLING,5.5X10.5
390621144
€ 25.00
39062D
390621164
ref: 39062D
HOSE-COOLING
390621164
€ 36.00
39062E
390621165
ref: 39062E
HOSE-COOLING
390621165
€ 10.50
39062G
390621226
ref: 39062G
HOSE-COOLING
€ 25.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781074
ref: 43078
RESERVOIR
430781074
€ 47.50
49044
490441058
ref: 49044
PUMP-WATER
490441058
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
132
132W0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0620
ref: 132B
BOLT-FLANGED-SMALL
132W0620
€ 2.00
132C
132W0825
ref: 132C
BOLT-FLANGED-SMALL
132W0825
€ 2.50
157
157J0616
ref: 157
BOLT-WSP
€ 1.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021067
ref: 59502
FAN-ASSY
€ 558.50
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 7.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037D
920371985
ref: 92037D
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
920551266
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
920551271
€ 7.00
92055C
920551282
ref: 92055C
RING-O
920551282
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92066A
920661201
ref: 92066A
PLUG,PT1/8X7
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721197
ref: 92072A
BAND
920721197
€ 5.00
92075
92075078
ref: 92075
DAMPER,RUBBER
92075078
€ 2.50
92075A
920751446
ref: 92075A
DAMPER,SIDE COVER
920751446
€ 3.00
92093
920931214
ref: 92093
SEAL
920931214
€ 10.50
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
