Genuine ZG Kawasaki Parts delivered quickly!


FUEL TANK

ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

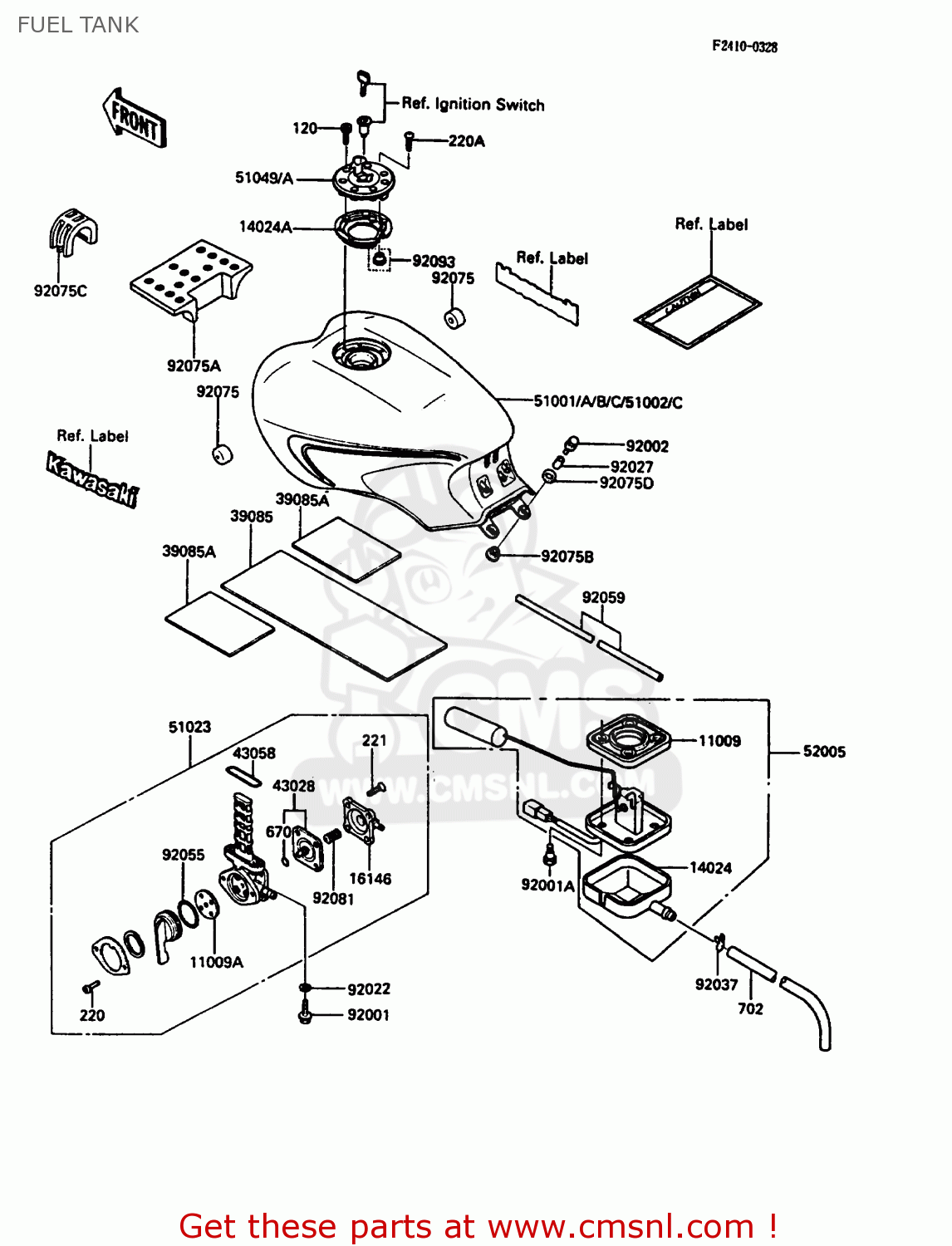

Fuel tank diagram ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

FUEL TANK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
FUEL TANK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
FUEL TANK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091308
ref: 11009
GASKET,FUEL GAGE (NAS)
110091308
€ 14.50
11009A
110091530
ref: 11009A
GASKET,TAP VALVE (NAS)
110091530
€ 6.00
14024
140251536
ref: 14024
COVER,FUEL GAGE
140251536
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
140251913
€ 13.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
161461005
€ 14.00
39085
390851054
ref: 39085
CA
TANK PAD
€ 34.00
39085A
390851055
ref: 39085A
CA
TANK PAD
€ 12.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
430281015
€ 14.50
43058
51039010
ref: 43058
RING,TAP FLANGED
51039010
€ 4.50
51001
510011231H3
ref: 51001
CNUS
TANK-COMP-FUEL,C.W.RE
€ 685.00
51001A
510011231T8
ref: 51001A
CNUS
TANK-COMP-FUEL,P.G.GR
€ 685.00
51001B
510011237H3
ref: 51001B
CA
TANK,COMPLETE,CANDY WINE RED
€ 348.00
51001C
510011237T8
ref: 51001C
CA
TANK,COMPLETE,PEARL GENTRY GREY
€ 592.00
51023
510231130
ref: 51023
TAP-ASSY,FUEL
€ 105.00
51049A
510491080
ref: 51049A
CAP-TANK,FUEL
510491080
€ 106.50
52005
520051078
ref: 52005
GAUGE,FUEL
520051078
€ 102.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
920011705
€ 2.50
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551027
ref: 92055
RING-O,TAP LEVER
920551027
€ 3.50
92059
920591726
ref: 92059
TUBE
920591726
€ 18.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07780
ref: 702
TUBE,RUBBER,7X780
€ 9.50
92075A
920751672
ref: 92075A
DAMPER,FUEL TANK
920751672
€ 25.00
92075B
92075174
ref: 92075B
DAMPER,MALE
92075174
€ 3.00
92075C
920751741
ref: 92075C
DAMPER,FUEL TANK
920751741
€ 12.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
92075175
€ 2.50
92081
920811171
ref: 92081
SPRING,TAP
920811171
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
