FRONT FORK

ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

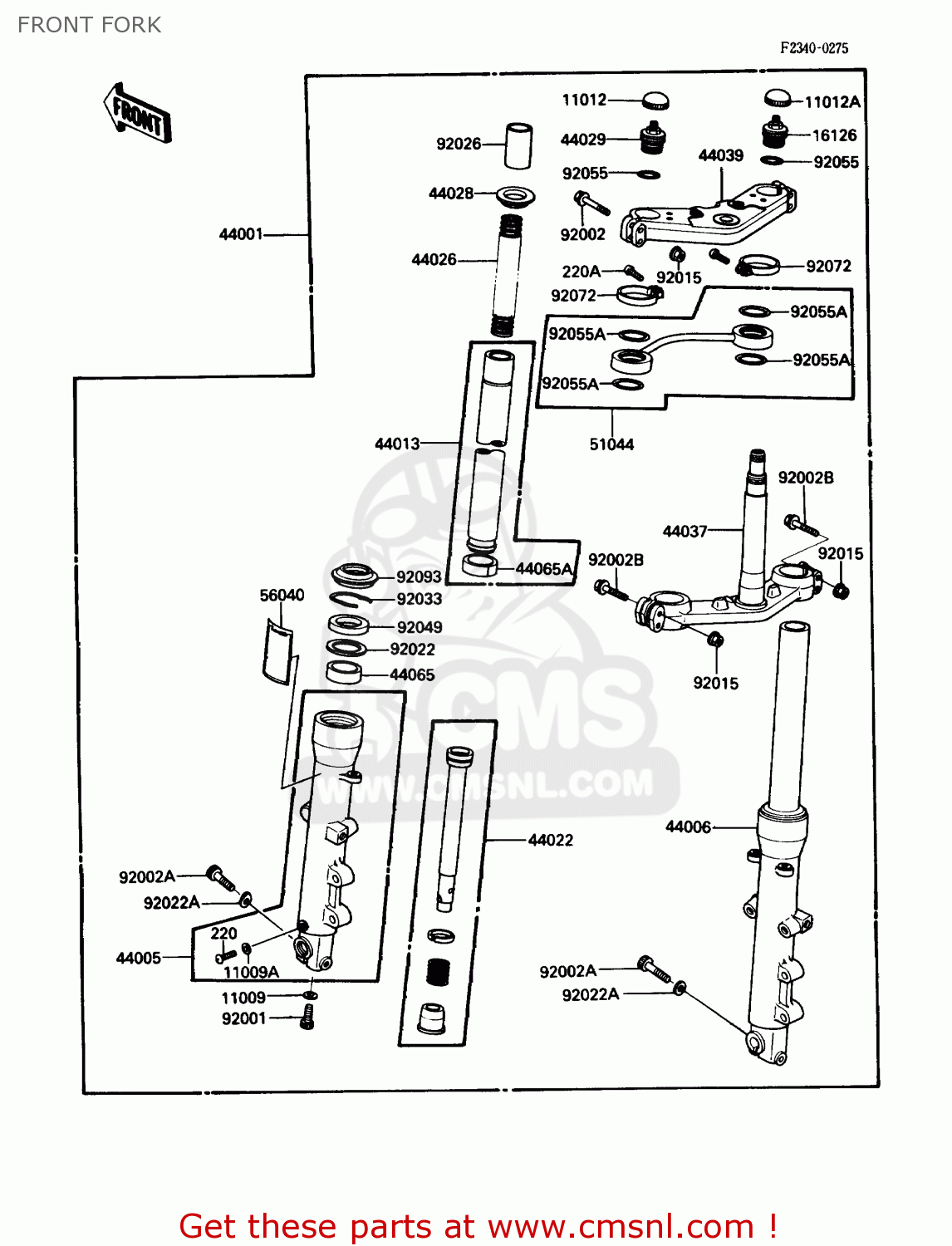

Front fork diagram ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

FRONT FORK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
FRONT FORK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
FRONT FORK ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
220E0408
€ 2.50
220A
220E0412
ref: 220A
SCREW-PAN-CROS
220E0412
€ 2.00
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11012
110121500
ref: 11012
CAP,FORK TOP
110121500
€ 8.00
11012A
110121501
ref: 11012A
CAP,FORK TOP
110121501
€ 8.00
16126
161261150
ref: 16126
VALVE
161261150
€ 29.00
44001
440011623
ref: 44001
FORK-FRONT
€ 1,887.00
44005
440051251
ref: 44005
PIPE-LEFT FORK OUTER
€ 331.00
44006
440061250
ref: 44006
PIPE-RIGHT FORK OUTER
440061250
€ 172.50
44013
440131254
ref: 44013
PIPE-FORK INNER
440131254
€ 174.00
44022
440221197
ref: 44022
CYLINDER-FORK
440221197
€ 63.50
44026
440261340
ref: 44026
SPRING-FRONT FORK
440261340
€ 48.50
44028
440281059
ref: 44028
GUIDE-FORK SPRING
€ 5.50
44029
440291122
ref: 44029
SEAT-FORK SPRING
€ 37.00
44037
440371198
ref: 44037
HOLDER-FORK UNDER
€ 490.00
44039
440391135
ref: 44039
HOLDER-FORK UPPER
€ 260.50
44065
440651064
ref: 44065
BUSHING-FRONT FORK
440651064
€ 21.00
44065A
440651081
ref: 44065A
BUSHING-FRONT FORK,IN
440651081
€ 13.00
51044
510441083
ref: 51044
TUBE-ASSY,FORK,AIR
€ 108.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
920011309
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
920021158
€ 6.00
92002A
920021847
ref: 92002A
BOLT,SOCKET,8X45
€ 3.00
92002B
920021848
ref: 92002B
BOLT,FLANGED,8X50
920021848
€ 9.00
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92022A
920221598
ref: 92022A
WASHER
920221598
€ 4.50
92026
920261277
ref: 92026
SPACER,FORK SPRING
920261277
€ 4.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491273
ref: 92049
SEAL-OIL,FORK OUTER
920491273
€ 13.00
92055
920551052
ref: 92055
RING-O,FORK TOP
920551052
€ 2.50
92055A
920551106
ref: 92055A
RING-O,FORK AIR TUBE
920551106
€ 3.50
92072
920721157
ref: 92072
BAND
920721157
€ 5.50
92093
920931232
ref: 92093
SEAL,FORK OUTER TUBE
920931232
€ 14.00
