CLUTCH

ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

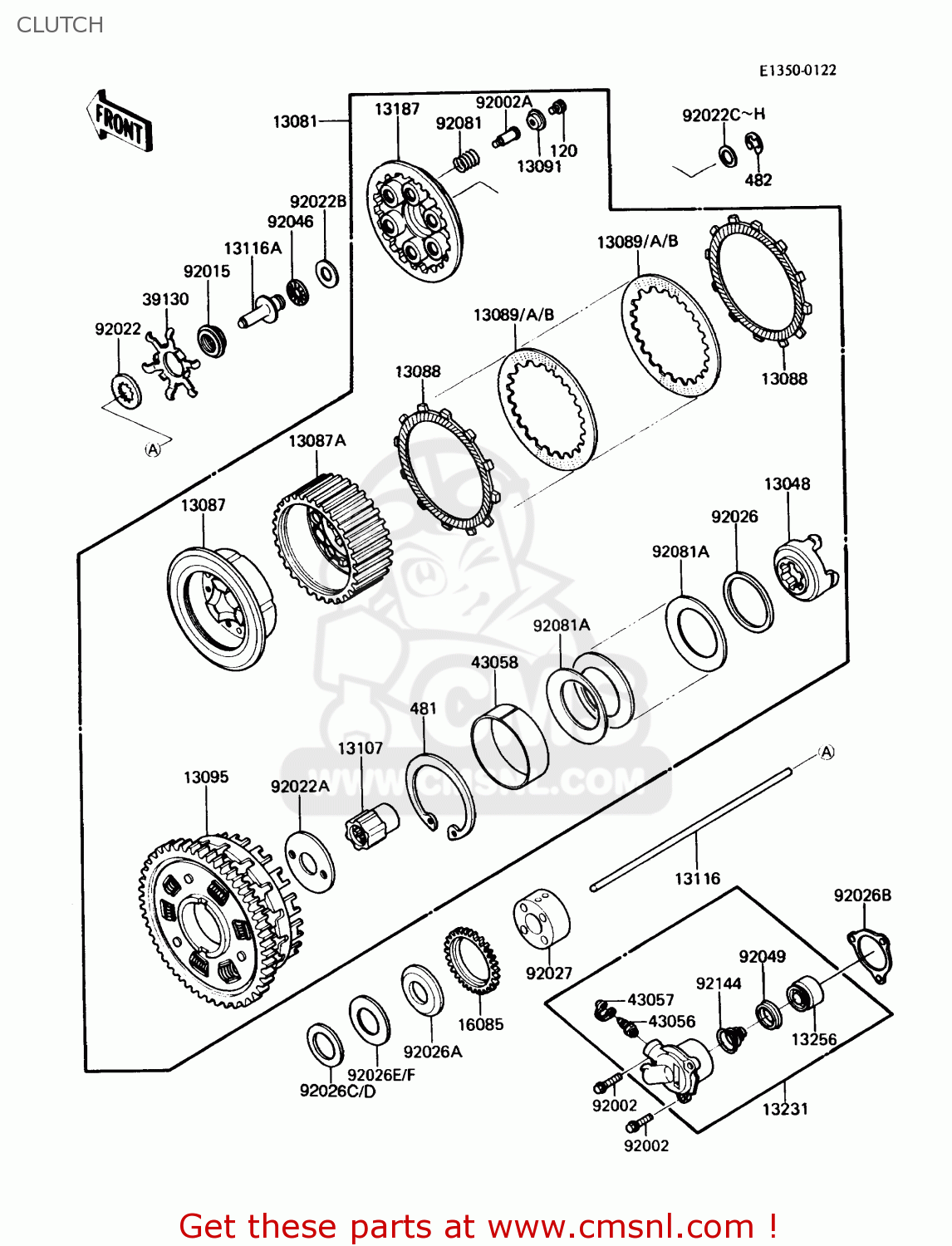

Clutch diagram ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA

CLUTCH ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
CLUTCH ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
CLUTCH ZG1000A2 CONCOURS 1987 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13081
130811221
ref: 13081
CLUTCH-ASSY
€ 388.00
13087
130871071
ref: 13087
HUB-CLUTCH
€ 164.50
13087A
130871072
ref: 13087A
HUB-CLUTCH
130871072
€ 378.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
130881051
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
130891004
€ 6.50
13089A
130891067
ref: 13089A
PLATE-CLUTCH,T=2.6 (NAS)
130891067
€ 7.00
13089B
130891068
ref: 13089B
PLATE-CLUTCH,T=2.0 (NAS)
130891068
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
130911041
€ 8.50
13095
130951146
ref: 13095
HOUSING-COMP-CLUTCH
130951146
€ 368.50
13107
131071161
ref: 13107
SHAFT,BEVEL GEAR,FR
131071161
€ 60.50
13116
131161118
ref: 13116
ROD-PUSH,CLUTCH
€ 25.50
13116A
131161119
ref: 13116A
ROD-PUSH,CLUTCH
€ 23.50
13187
131871055
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871055
€ 64.00
13231
132311060
ref: 13231
RELEASE-ASSY-CLUTCH
€ 108.50
13256
132561052
ref: 13256
PISTON
132561052
€ 43.50
16085
160851108
ref: 16085
GEAR,OIL PUMP
160851108
€ 117.00
39130
391301054
ref: 39130
SPRING-LEAF
391301054
€ 11.50
43056
430561052
ref: 43056
BREATHER-BRAKE
430561052
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43058
430581059
ref: 43058
RING
430581059
€ 13.00
92002
920021613
ref: 92002
BOLT
920021613
€ 1.50
92002A
920021639
ref: 92002A
BOLT,CLUTCH
920021639
€ 7.50
92015
920151538
ref: 92015
NUT
920151538
€ 17.50
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
920221114
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
920221221
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
920221463
€ 3.00
92022C
920221750
ref: 92022C
WASHER,15.1X23X1.0
€ 5.50
92022D
920221751
ref: 92022D
WASHER,15.1X23X0.8
€ 6.00
92022E
920221752
ref: 92022E
WASHER,15.1X23X1.2
€ 6.00
92022F
920221753
ref: 92022F
WASHER,15.1X23X1.4
€ 5.50
92022G
920221754
ref: 92022G
WASHER,15.1X23X1.6
€ 5.50
92022H
920221755
ref: 92022H
WASHER
€ 5.50
92026
920261043
ref: 92026
SPACER,3.5X59X70
920261043
€ 19.00
92026A
920261215
ref: 92026A
SPACER
€ 18.00
92026B
920261263
ref: 92026B
SPACER,CLUTCH RELEASE
920261263
€ 11.50
92026D
920261306
ref: 92026D
SPACER
920261306
€ 12.50
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
481
481J9500
ref: 481
CIRCLIP
€ 16.00
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
92026F
920261307
ref: 92026F
SPACER
920261307
€ 12.50
92027
920271710
ref: 92027
COLLAR
920271710
€ 61.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
920461052
€ 14.00
92049
920491165
ref: 92049
SEAL-OIL,PISTON
920491165
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
920811114
€ 4.50
92081A
920811906
ref: 92081A
SPRING
920811906
€ 24.00
92144
921441084
ref: 92144
SPRING,CLUTCH RELEASE
921441084
€ 5.50
