METER(S)

ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

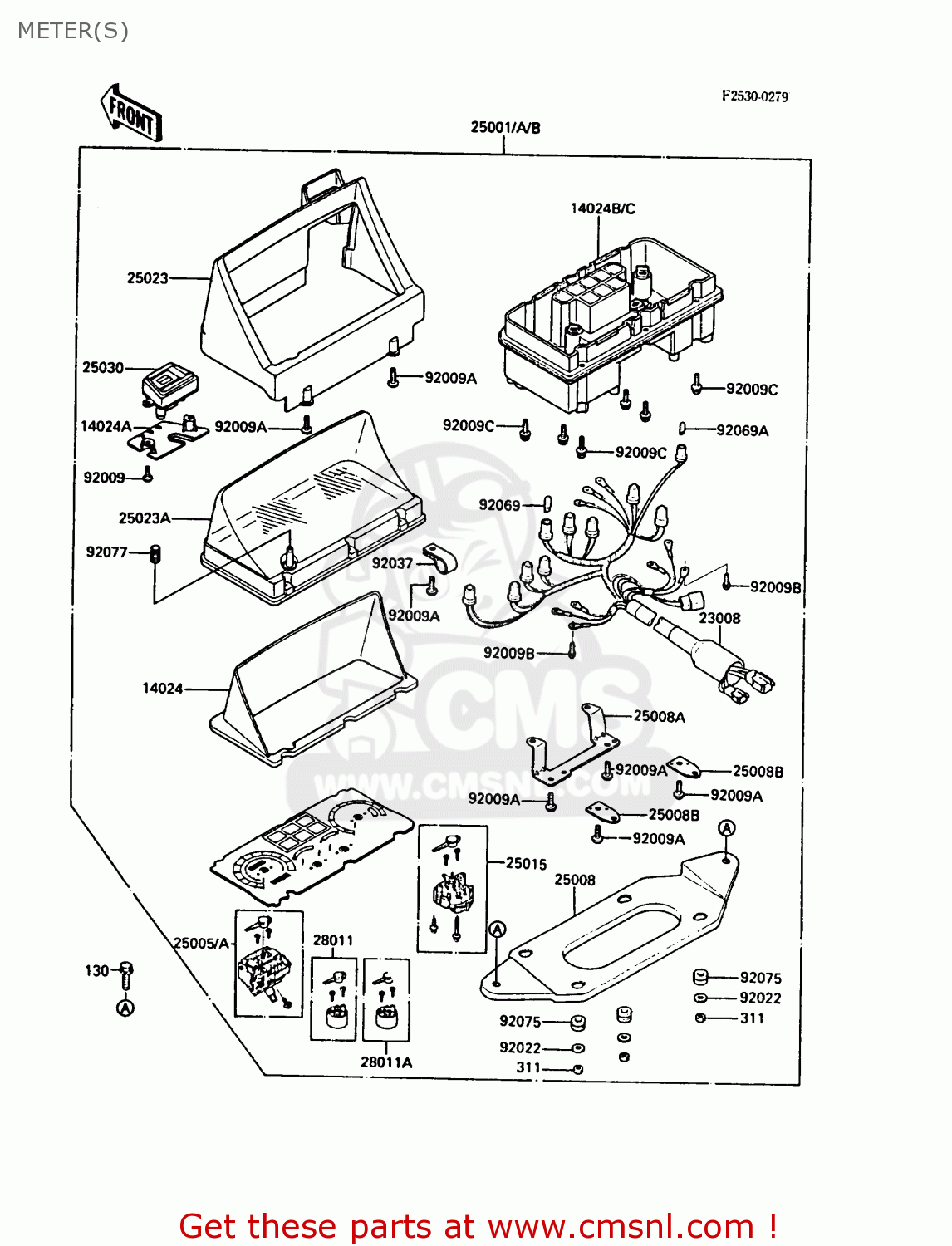

Meter(s) diagram ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

METER(S) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
METER(S) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
METER(S) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
prices are in EUR
ref
part #
description
quantity
14024
140241179
ref: 14024
COVER,METER,UPP
140241179
€ 122.50
14024A
140241339
ref: 14024A
COVER,DEGITAL CLOCK
140241339
€ 10.00
14024B
140241340
ref: 14024B
AREUFGFRITNRSTUK
COVER,METER HOUSING
€ 103.50
14024C
140241341
ref: 14024C
SD
COVER,METER HOUSING
€ 92.50
23008
230081317
ref: 23008
SOCKET-ASSY,METER
230081317
€ 195.00
25001
250011642
ref: 25001
AREUFGFRITNRST
METER-ASSY,KPH
€ 1,431.00
25001A
250011664
ref: 25001A
UK
METER-ASSY,MPH
€ 1,458.00
25001B
250011665
ref: 25001B
SD
METER-ASSY,KPH
€ 1,431.00
25005
250051338
ref: 25005
UK
SPEEDOMETER,MPH
€ 301.00
25005A
250051339
ref: 25005A
AREUFGFRITNRSDST
SPEEDOMETER,KPH
€ 301.00
25008
250081131
ref: 25008
BRACKET-METER
250081131
€ 49.00
25008A
250081132
ref: 25008A
BRACKET-METER,UPP
€ 23.00
25008B
250081133
ref: 25008B
BRACKET-METER,LWR
250081133
€ 10.00
25015
250151262
ref: 25015
TACHOMETER,X1000R/MIN
250151262
€ 250.00
25023
250231147
ref: 25023
COVER-METER CASE,UPP
250231147
€ 29.50
25023A
250231149
ref: 25023A
COVER-METER CASE,UPP
€ 78.50
25030
250301001
ref: 25030
CLOCK,DEGITAL
250301001
€ 535.50
28011
280111088
ref: 28011
METER,FUEL
280111088
€ 73.00
28011A
280111089
ref: 28011A
METER,TEMP
280111089
€ 86.50
92009
920091140
ref: 92009
SCREW,TAPPING,4X14
920091140
€ 2.50
92009A
920091163
ref: 92009A
SCREW,TAPPING,4X16
920091163
€ 2.50
92009B
920091293
ref: 92009B
SCREW,3X22
920091293
€ 2.50
92009C
920091382
ref: 92009C
SCREW
€ 2.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92037
920371818
ref: 92037
CLAMP,METER
€ 3.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
920691020
€ 3.00
92075
920751805
ref: 92075
DAMPER
920751805
€ 3.50
92077
920771017
ref: 92077
KNOB,RESET TRIP
920771017
€ 16.00
130
130C0612
ref: 130
BOLT-FLANGED,6X12
130C0612
€ 1.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
