FRAME FITTINGS

ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

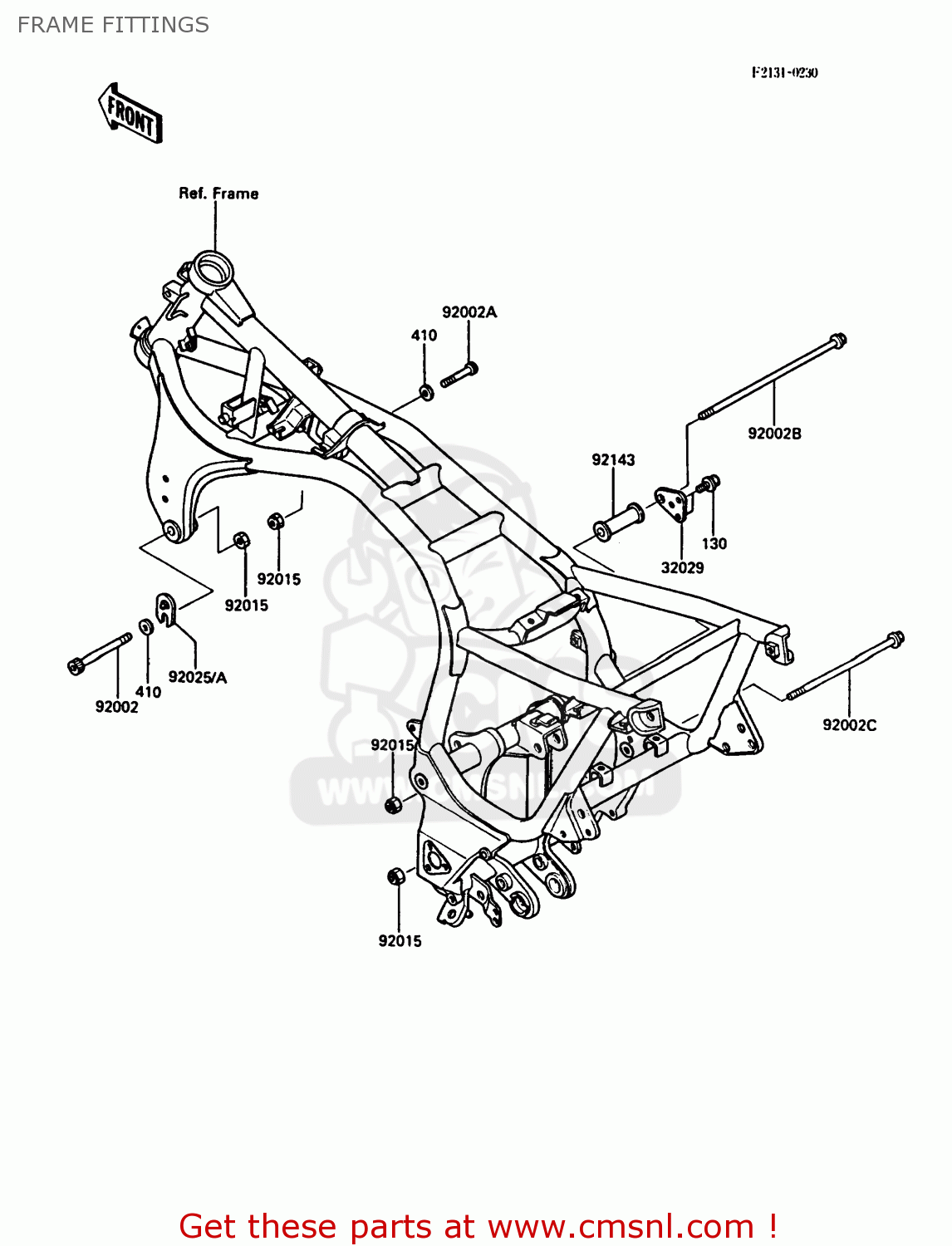

Frame fittings diagram ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

130

130J0812
ref: 130

BOLT-FLANGED

€ 0.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

32029

320291473
ref: 32029

BRACKET-ENGINE,RR,UPP

€ 13.00

92002

920011888
ref: 92002

BOLT,SOCKET,10X100

€ 8.00

92002A

920011889
ref: 92002A

BOLT,SOCKET,10X72

€ 7.00

92002B

920021722
ref: 92002B

BOLT,FLANGED,10X265

€ 15.50

92002C

920021822
ref: 92002C

BOLT

€ 18.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92025

920251616
ref: 92025

SHIM,ENGINE MOUNT,T=1

€ 6.50

92025A

920251617
ref: 92025A

SHIM,ENGINE MOUNT,T=2

€ 6.00

92143

921431027
ref: 92143

COLLAR,L=57.5

€ 13.00
